Signal Tap capture waveform

Question

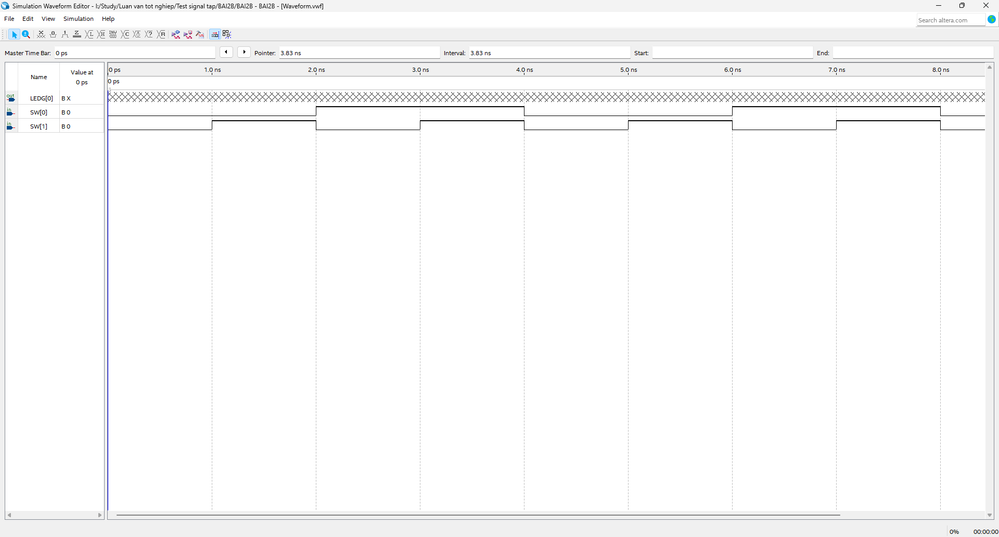

Hi, I want to capture the waveform on Signal Tap similar to the waveform on the simulation file, how can I do that?

sstrell · Answer

Signal Tap is for hardware debugging.  You have to control those switches in hardware somehow for it to appear in Signal Tap.

tintrandinh · Answer

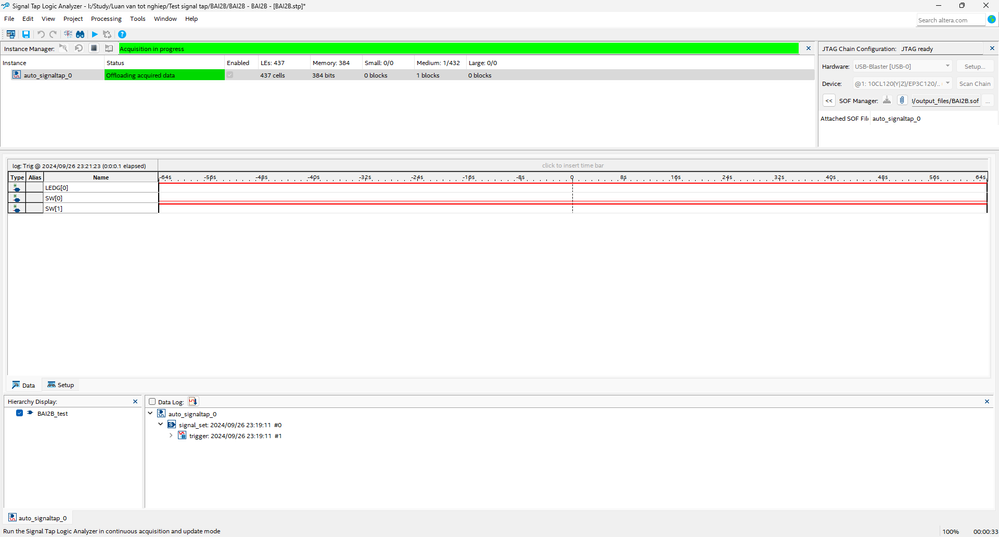

I have been able to get a signal from the switch but it is just a straight signal whether I turn it on or off, I want it to be able to display levels 0 and 1

sstrell · Answer

Then you have to be able to toggle the switch at the speed of the sampling clock you’re using for Signal Tap. Signal Tap only captures data at the rising edge of the sampling clock you select.

hubertg · Answer

We sincerely apologize for the inconvenience caused by the delay in addressing your Forum queries. Due to an unexpected back-end issue in our system, your Forum case, did not reach us as intended. As a result, we have a backlog of cases that we are currently working through.

Please be assured that we are doing everything we can to resolve this as quickly as possible. This will take some time, and we appreciate your patience and understanding during this period of time. Your case will be attended by AE soonest possible.

Thank you again for your patience and understanding, and we are committed to provide you with the best possible support.

hubertg · Answer

Hi TinTranDinh,Just to check,Has the problem resolved ? Beyond this, is there any support needed from our end ?Best RegardsHubert
