Realistic values for set_max_skew

I have a design with asynchronous input and output bus signals.

For the input bus signals I do not care how much time it takes from the Input Ports to the first register. For the output signals I also do not care how much time it takes from the last register to the output ports. The only thing that I really care about is, the skew of the bus signals.

I have created a very simple dummy design and added sdc design constraints.

module top(
      input clk,
		input [1:0] input_bus,
		output reg [1:0] output_bus
);

reg [1:0] register;

always @(posedge clk) begin
   register <= input_bus;
   output_bus <= register;
end
endmodule
create_clock  -name clk -period 20 [get_ports clk]

set_max_skew -from [get_ports {input_bus[*]}] 0.5
set_max_skew -to [get_ports {output_bus[*]}] 0.5

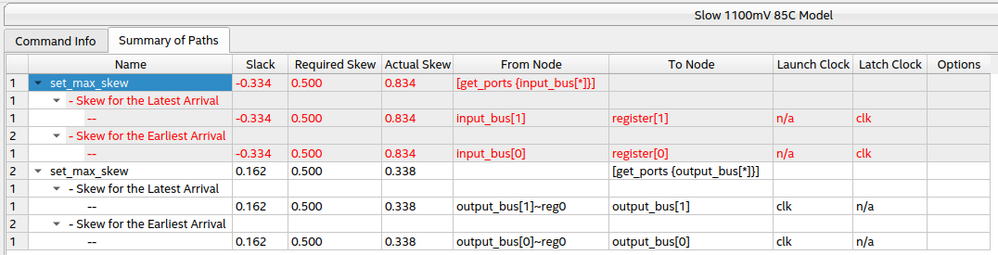

Timing Analyzer fails.

I do not have a lot of experience with SDC constraints and bus timing. My feelfing is, that 0.5ns bus skew is not unrealistic.

Is my expectation wrong, or am I doing something wrong?

4 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

    What are your set_input_delay and set_output_delay constraints?

    • SimonT's avatar
      SimonT
      Icon for New Contributor rankNew Contributor

      I do not have any set_input_dealy and set_output_delay constraints.

      The hardware on input and output side is running on a completly independent clock. I do not know what their frequency and phase offset to my clock is.

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor

        Then it sounds like you should just false path the I/O.  I don't know if set_max_skew still matches skews on cut paths, but it's worth it to try.

  • Do you need any further help regarding this case?
    Which device are you using?
    You could also try changing the Optimization Mode to High or Superior Performance (Assignments → Settings → Compiler Settings), or run a seed sweep to see if the skew improves.

    Regards,
    Richard Tan
