各位前辈好我在使用quartus 16.0 标准版联合modelsim仿真时，用到了一个fir ip，但是在启动modlesim的时候，报了一个找不到altera_mf库的问题，不知道怎么解决，各位前辈帮忙解答一下

Hi, I was able to run your RTL simulation. Your problem is because your version of ModelSim (ModelSim 10.6d) is incompatible with your version of Quartus. Refer to Table 5 of this document for a list of compatible ModelSim versions: https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/rn/archives/rn-qts-std-dev-support-18.0.pdf#page=7Regards,Nurina

quartus联合modelsim仿真找不到altera_mf库

15 Replies

Nurina
Regular Contributor
4 years ago
Hi,

Is this FIR II IP? To simulate this IP you need to follow steps 2.4 of this document: https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_fir_compiler_ii.pdf#page=21

I believe you did not complete step 3, section 1.5.1 of this document expands on that: https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug-qpp-tp-simulation.pdf#page=7

Let me know if this helps.

Regards,
Nurina
- pp
  Occasional Contributor
  4 years ago
  hi Nurina：

  我看了您给我发的文档，我可以告诉您上面的步骤，我应该都有做，下面是我的一些关键截图

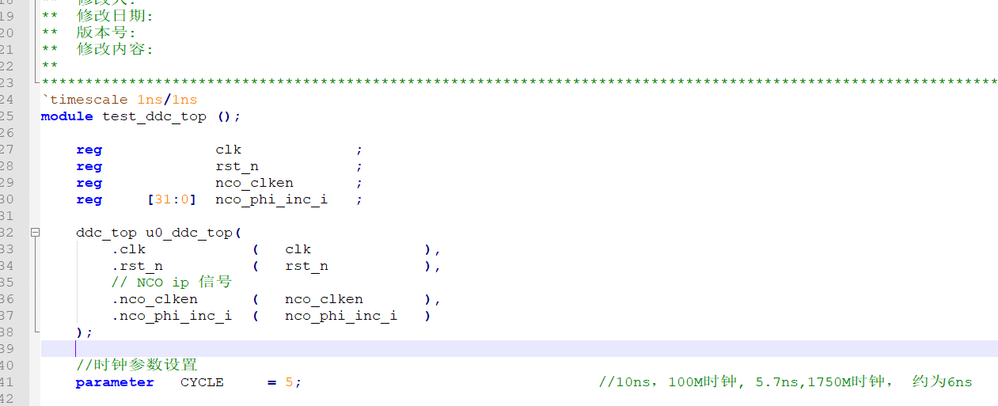

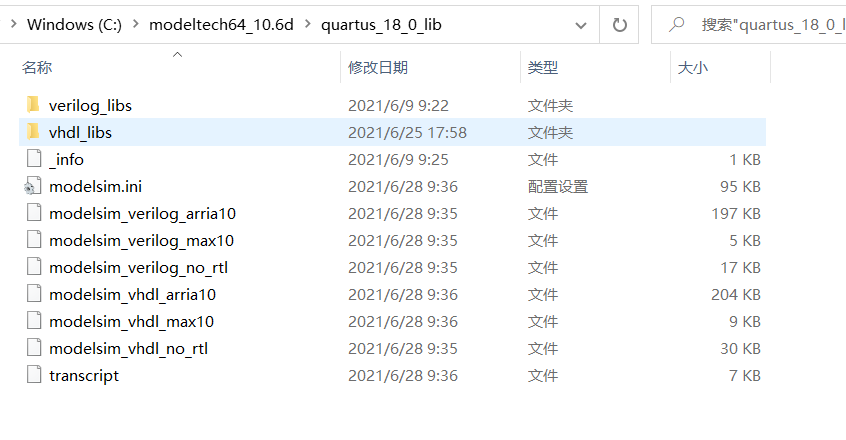

  首先我已经执行了编译quartus 仿真库文件了，即Launch Simulation Library Compiler.，并且放在了 modlesim 软件的根目录下

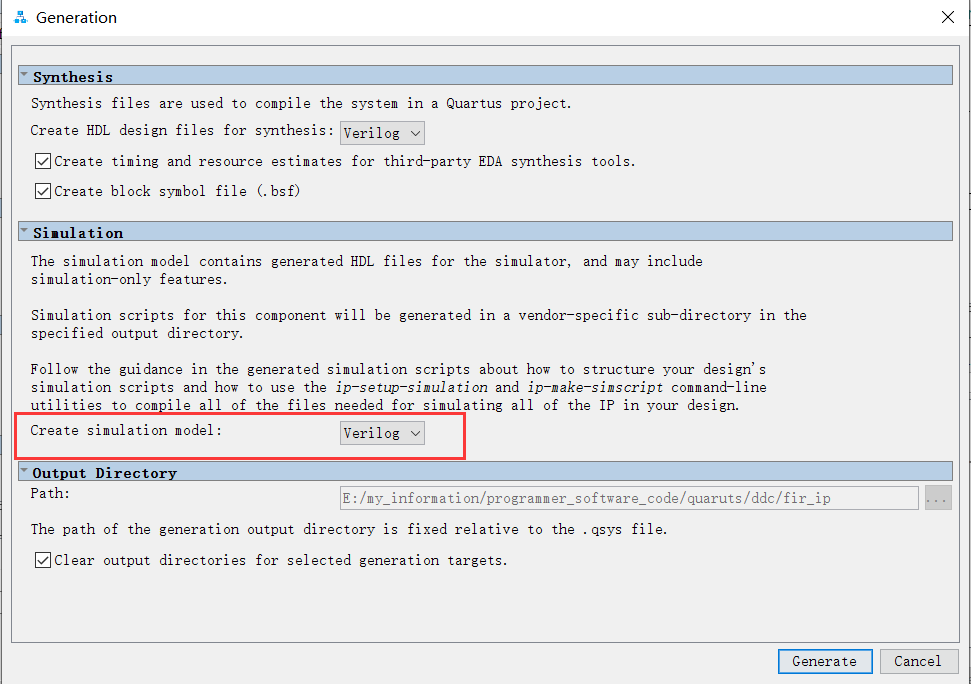

  然后，我在生成FIR IP核的时候，也选择了生成仿真文件了

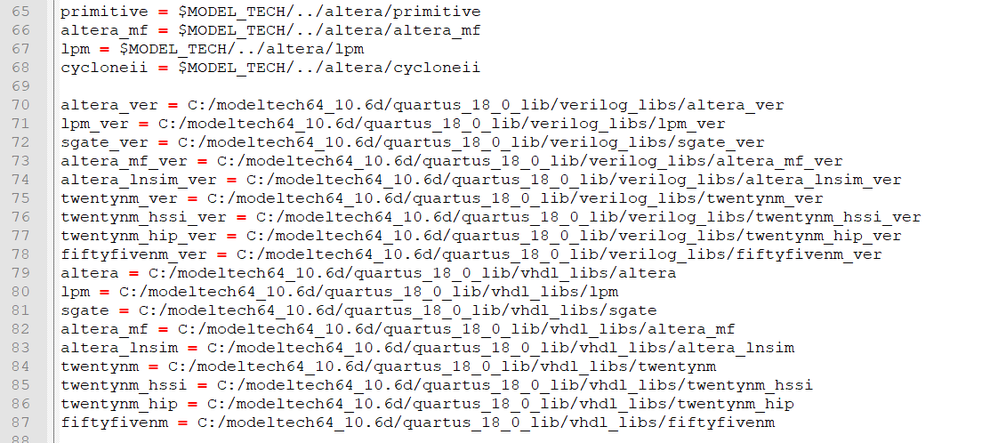

  最后呢，生成的quartus 仿真库文件，我也将里面的关键信息，复制到了modelsim.ini 文档下

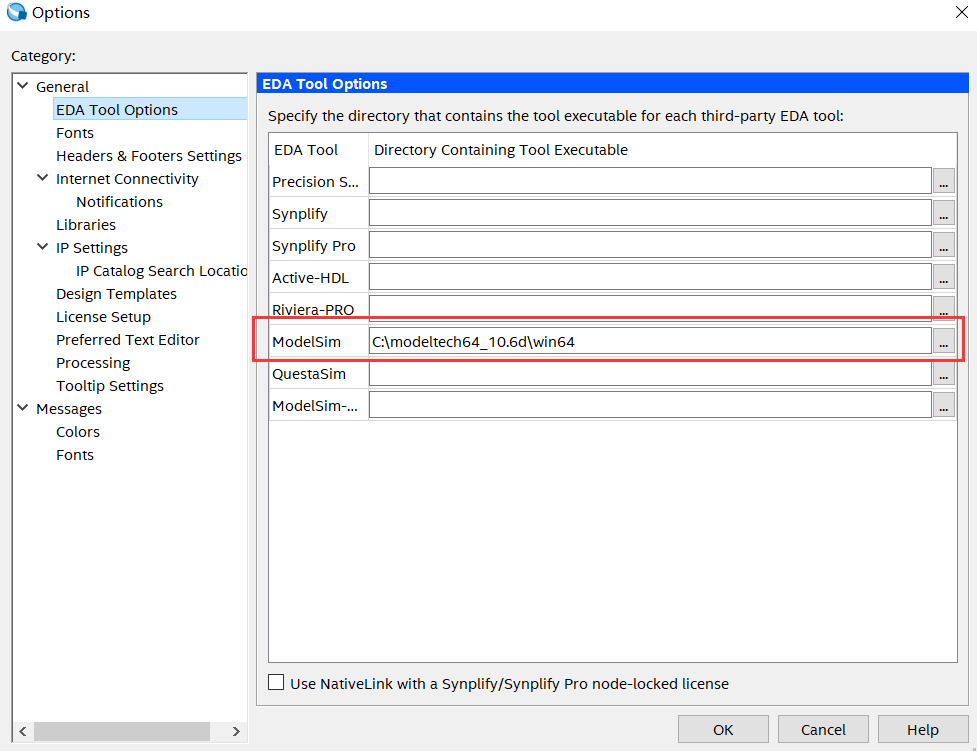

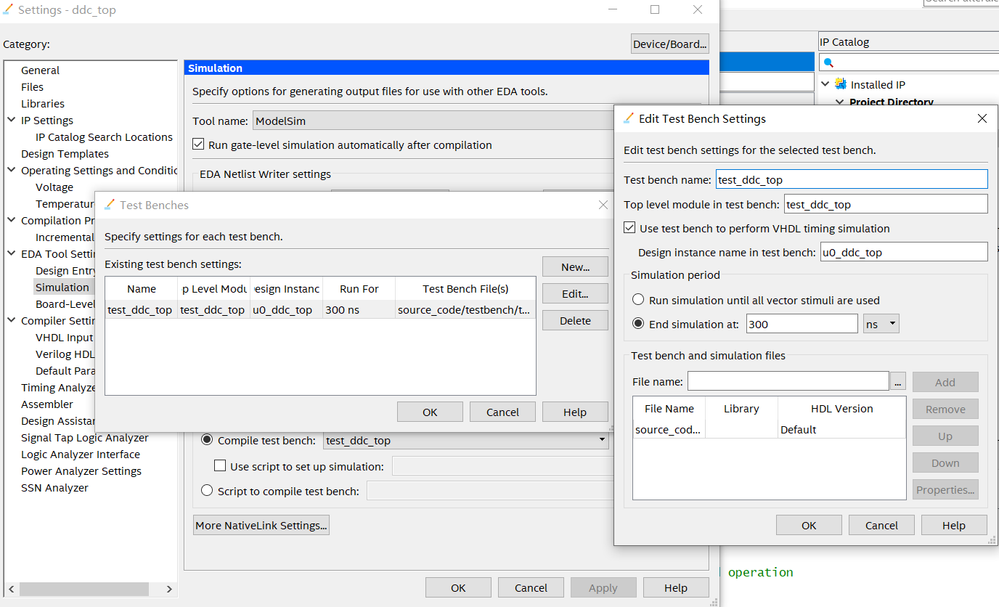

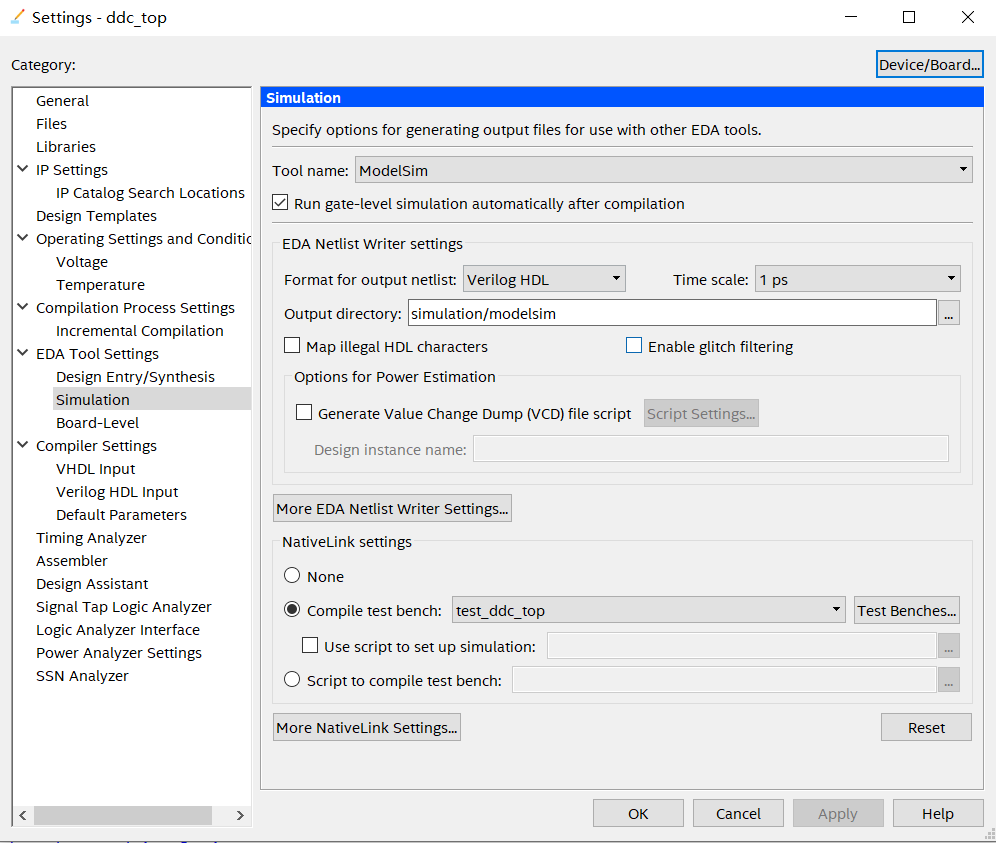

  quartus 里对仿真环境的设置如下

  根据您给我的文档，我不知道我哪里出了问题，我觉得我所有步骤，都已经做了
Nurina
Regular Contributor
4 years ago
Hi,

I was able to run your RTL simulation. Your problem is because your version of ModelSim (ModelSim 10.6d) is incompatible with your version of Quartus. Refer to Table 5 of this document for a list of compatible ModelSim versions: https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/rn/archives/rn-qts-std-dev-support-18.0.pdf#page=7

Regards,
Nurina
- pp
  Occasional Contributor
  4 years ago
  Hi,

  If this is the problem, then I decide to use Modelsim-Altera to solve this problem, because I do not have the 10.4D Modelsim SE software, thank you for your answer
BrusC_Intel
New Contributor
4 years ago
Hello, PP.

Thank you for posting in the Intel Community Support forum.

We have a specialized community section for this type of inquiry, and I will move this thread to that section so it can be answered as soon as possible.

Best regards,

Bruce C.
Intel Customer Support Technician
pp
Occasional Contributor
4 years ago
Dear brusc:

谢谢你帮我转发至对应的社区板块，这个问题困扰我很久了，一直得不到解决，希望前辈们可以帮助我
Nurina
Regular Contributor
4 years ago
Hi,

Can you change the simulation environment in EDA Tools Options like so:
C:/intelFPGA/16.0/modelsim_ase/win32aloem

Let me know if this solves your problem.
Nurina
- pp
  Occasional Contributor
  4 years ago
  dear Nurina:

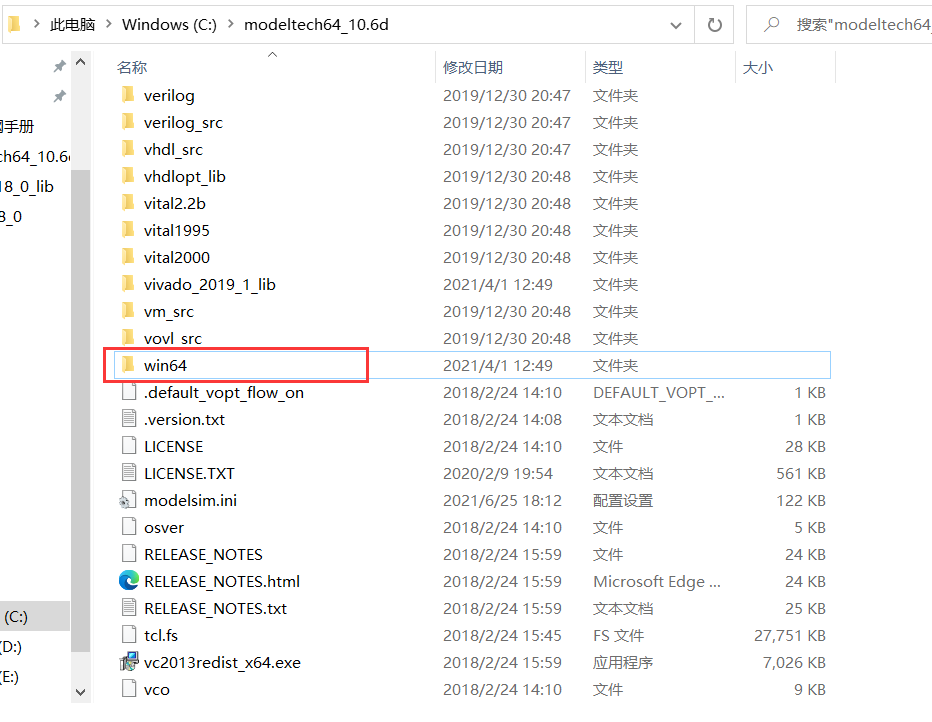

  我不知道您的这个文件路径指向的是什么软件？如果是指向的是modelsim 软件的根目录的话，我这边文件夹只有win64，没有win32的文件夹路径可选
- pp
  Occasional Contributor
  4 years ago
  dear Nurina：

  我用的modelsim 是第三方的工具，并不是intel quartus 的 modelsim - altera
Nurina
Regular Contributor
4 years ago
Hi,

OK. Since you didn't receive "executable cannot be found" error then I don't think this is a problem, the EDA tools setup should be fine.

Can you attach your project? On Quartus, go to Project->Archive Project.. Then attach the .qar file here.

Thanks,

Nurina
pp
Occasional Contributor
4 years ago
dear Nurina:

按照您的步骤，我已经将工程的 .qar文件上传
ddc.qar3.2 MB
Nurina
Regular Contributor
4 years ago
Hi,

Are you using Quartus Standard 18.0 or Quartus Standard 16.0?

Nurina
pp
Occasional Contributor
4 years ago
Hi,

Yes，i'm using Quartus Standard 18.0
Nurina
Regular Contributor
4 years ago
Hi,

You're welcome! I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.

Regards,
Nurina

PS: If you find any comment from the community or Intel Support to be helpful, feel free to give Kudos.
- pp
  Occasional Contributor
  4 years ago
  Hi,

  OK, I see. Thank you for your help and kind answer
