Preservation level: Final leads to Quartus crash on re-run

I changed one partition from final to synthesis preserve, it wen't further but still crashed later on.

I think the final flow is kind of broken, which is sad because this is what I was planning to use to speed-up the big projects.

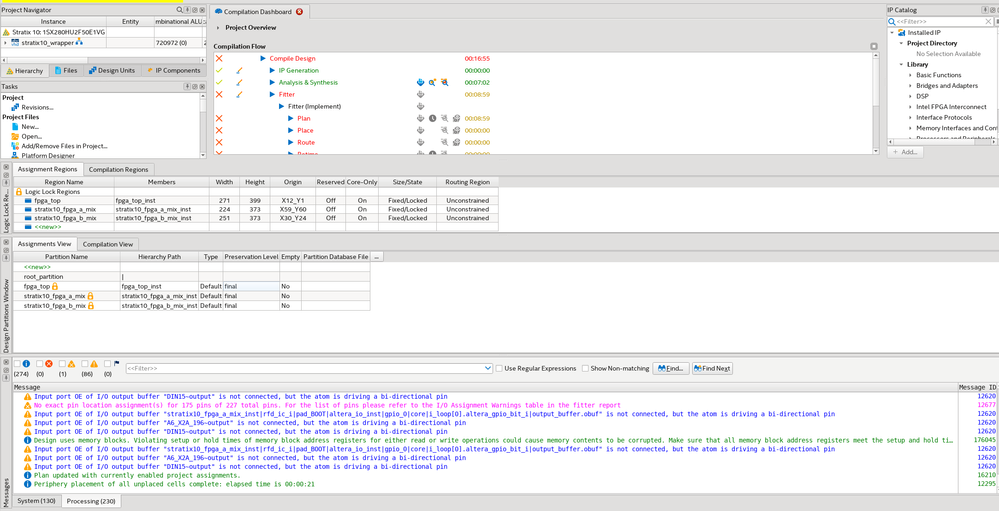

See new picture too.

Problem Details
Error:
Internal Error: Sub-system: QHD, File: /quartus/comp/qhd/qhd_database_impl.cpp, Line: 2057
validate_split_route check failed (see debug messages for more info):
            	snapshot:routed
	flat_vs_split:FAILED
	split_vs_flat:PASSED

Stack Trace:
  Quartus         0x111679: QHD_CHECK_DESIGN::validate_split_route(QHD_DESIGN const&, QHD_ENUM_IMPL<QHD_SNAPSHOT_BASE>) + 0x2e17 (comp_qhd)
  Quartus          0x58fe7: QHD_CHECK_DESIGN::fit_post_commit_design_check(QHD_DESIGN const&, QHD_ENUM_IMPL<QHD_SNAPSHOT_BASE>) + 0x3e (comp_qhd)
  Quartus          0x49568: FIT2_DATABASE_EXPERT_QDB::commit(bool, bool, bool) + 0xb3c (comp_fit2)
  Quartus          0x2c6b3: fit2_commit_fitter_netlist + 0x376 (comp_fit2)
  Quartus          0x50fb7: TclNRRunCallbacks + 0x47 (tcl8.6)
  Quartus          0x527df: TclEvalEx + 0x94f (tcl8.6)
  Quartus          0x52ad6: Tcl_EvalEx + 0x16 (tcl8.6)
  Quartus          0x26b81: atcl_tcl_eval(Tcl_Interp*, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, bool) + 0x1df (ccl_atcl)
  Quartus          0x5c0a0: fit2_commit_result(Tcl_Interp*, bool) + 0x5f (comp_fit2)
  Quartus          0x3c132: fit2_fit_route_commit + 0x2a2 (comp_fit2)
  Quartus          0x50fb7: TclNRRunCallbacks + 0x47 (tcl8.6)
  Quartus          0x287d6: fit2_fit_route + 0x2fb (comp_fit2)
  Quartus          0x50fb7: TclNRRunCallbacks + 0x47 (tcl8.6)
  Quartus          0x527df: TclEvalEx + 0x94f (tcl8.6)
  Quartus          0xfa3a6: Tcl_FSEvalFileEx + 0x266 (tcl8.6)
  Quartus          0xfa4be: Tcl_EvalFile + 0x2e (tcl8.6)
  Quartus          0x2a8fc: qexe_evaluate_tcl_script(std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&) + 0x3de (comp_qexe)
  Quartus          0x2dd73: qexe_do_tcl(QEXE_FRAMEWORK*, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, std::__cxx11::list<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > > const&, bool, bool) + 0x4c2 (comp_qexe)
  Quartus          0x2ee7b: qexe_run_tcl_option(QEXE_FRAMEWORK*, char const*, std::__cxx11::list<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > >*, bool) + 0x66e (comp_qexe)
  Quartus          0x6d1ec: QCU::DETAIL::intialise_qhd_and_run_qexe(QCU_FRAMEWORK&, FIO_PATH const&, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, char const*, std::__cxx11::list<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > >*, bool) + 0x9c (comp_qcu)
  Quartus          0x6d638: qcu_run_tcl_option(QCU_FRAMEWORK*, char const*, std::__cxx11::list<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > >*, bool) + 0x343 (comp_qcu)
  Quartus          0x3421d: qexe_standard_main(QEXE_FRAMEWORK*, QEXE_OPTION_DEFINITION const**, int, char const**) + 0xba2 (comp_qexe)
  Quartus         0x40ad6c: qfit2_main(int, char const**) + 0x8c (quartus_fit)
  Quartus          0x4e546: msg_main_thread(void*) + 0x10 (ccl_msg)
  Quartus          0x4f764: msg_thread_wrapper(void* (*)(void*), void*) + 0x8c (ccl_msg)
  Quartus          0x1f568: mem_thread_wrapper(void* (*)(void*), void*) + 0x98 (ccl_mem)
  Quartus          0x10f3a: err_thread_wrapper(void* (*)(void*), void*) + 0x1e (ccl_err)
  Quartus           0xb7f5: thr_thread_wrapper + 0x15 (ccl_thr)
  Quartus          0x4f684: msg_exe_main(int, char const**, int (*)(int, char const**)) + 0xd8 (ccl_msg)
  System           0x22555: __libc_start_main + 0xf5 (c)
  Quartus         0x4062a9: _start + 0x29 (quartus_fit)

End-trace

Hi Alex,

Can you share your design? Maybe through email?

Regards,

Nurina

Hi Alex,

I found report for below IE in our database:

Internal Error: Sub-system: QHD, File: /quartus/comp/qhd/qhd_database_impl.cpp, Line: 2057

Can you try this quartus.ini and see if it works? This seemed to work for 23.1 & 23.2.. I'm not quite sure of 22.4.

Save the quartus.ini file in the project directory and run compilation.

Regards,

Nurina

I couldn't attach an .ini file. Please change this file extension to .ini and save it to your project directory.

Thank You Nurina,

I will try that. Is that an ini password?

Can you explain a bit the logic behind?

As for the design, never ask me, I will never share our design (except if I can create a small test case).

Alex.

Yes it's an ini password, it would disable dangling routes.

Based on the IE case report, this IE is suspected to be a side effect of a PR-related fix. If you have a core clock driving to the periphery then there will be dangling route issue and Quartus throws this IE.

All you need to do is change the extension of the above quartus.txt file to .ini, save it to the same directory as your .qpf file and run compilation.

Regards,

Nurina

Hello,

I still got this crash:

I will try from a clean run to see if that makes any difference with that quartus.ini.

I'm also attaching the route report (the last one generated before the crash),

as you can see the long high speed interconnects are above 100% utilization,

I'm wondering if that is not the cause of the crash.

(Please add the .rpt allowed file in this website such that I don't have to add the .txt extension).

note: Overall fit report usage:

Fitter Status : Successful - Tue Jul 4 14:13:44 2023
Quartus Prime Version : 22.4.0 Build 94 12/07/2022 SC Pro Edition
Revision Name : stratix10_wrapper
Top-level Entity Name : stratix10_wrapper
Family : Stratix 10
Device : 1SX280HU2F50E1VG
Timing Models : Final
Power Models : Final
Device Status : Final
Logic utilization (in ALMs) : 514,940 / 933,120 ( 55 % )
Total dedicated logic registers : 277863
Total pins : 227 / 1,152 ( 20 % )
Total block memory bits : 58,828,507 / 240,046,080 ( 25 % )
Total RAM Blocks : 3,583 / 11,721 ( 31 % )
Total DSP Blocks : 418 / 5,760 ( 7 % )
Total DIB Channels : 0 / 75 ( 0 % )
Total HSSI RX channels : 0 / 96 ( 0 % )
Total HSSI TX channels : 0 / 96 ( 0 % )
Total HSSI HPS : 0 / 1 ( 0 % )
Total HSSI EHIPs : 0 / 4 ( 0 % )
Total PLLs : 7 / 184 ( 4 % )

Auto logic lock was giving stacked locations (well I did not ask to reserve the region either so Quartus can do that),

but I'm wondering if this is not counter productive.

So my question:

Shall the final snapshot work better or not with logic region or is that not relevant?

Or shall I use the logic lock with reserved ?

I will try with reserved and without partition to see how that goes with final.

Let me know what is expected.

Still crashing on re-run with the .ini password,

even without logic lock region set (so only the final setting for re-use):

Internal Error: Sub-system: PCC, File: /quartus/periph/pcc/pcc_port_rotation_util.cpp, Line: 1672

Crashing the same with Quartus pro 23.1.
