No file related to error when running functional simulation.

I cannot get a proper waveform simulation for a project. I am running Quartus Lite 20.1. I have a larger project, but I opened a more basic sub-project in order to rule out some issues. I create a file/block, open up the VWF simulation, input the nodes, generate the modelsim/testbench script, and hit functional simulation. I get the error shown in the first image labeled "error" every time. The line it is referencing is shown in the second image labeled "errorline"/

This file does not exist. I have searched every folder related to Quartus and beyond. Everything compiles just fine, and I can upload it to the FPGA where it runs like a dream. I cannot simulate it. I hope someone can say it is something simple, so I can feel stupid and get on with my work. If this has already been solved or there is a better place to ask please point me to it. Thank you for taking the time to read this!

10 Replies

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi,


    That file is mainly used for power analysis. Do you want to do any power analysis? Did you try deleting your simulation files and repeat all the steps to start an RTL simulation on university program?


    Can you share a screenshot of your EDA settings?


    Thanks,

    Nurina


    • JohanL's avatar
      JohanL
      Icon for New Contributor rankNew Contributor
      4 years ago

      Clicked the wrong thing, I replied below.

  • JohanL's avatar
    JohanL
    Icon for New Contributor rankNew Contributor
    4 years ago

    Hi and thank you for your response!

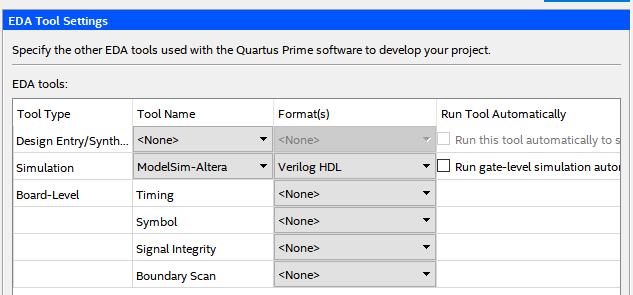

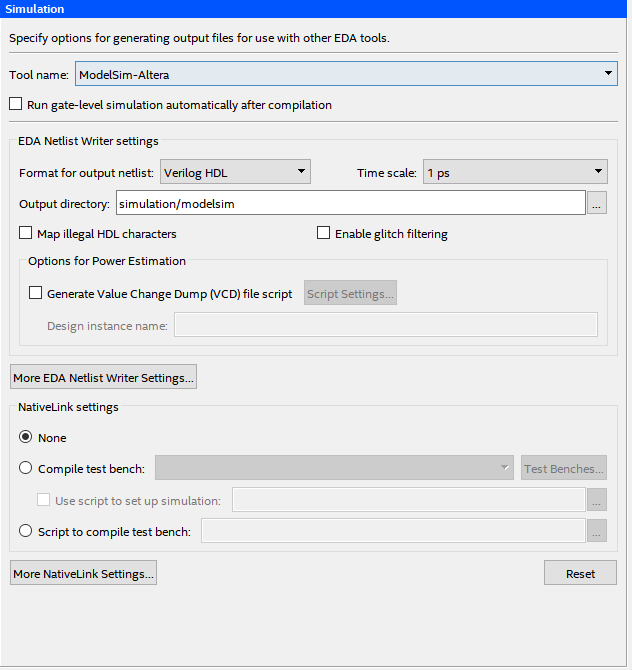

    I don't want to do any power analysis, but how would I get around it? I want to use the vwf simulation, but that file is stopping the functional sim. I ran the RTL simulation tool, but I am not familiar with it. It gave no errors if that is an indication of anything. I have also included a screenshot of everything under the EDA settings in the options. I feel as though it has something to do with the board level section, but I am not sure. In class we simply generated a netlist, assigned nodes, and ran the simulations without issue. That is why I am confused here. Thank you again for your help.

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Thank you for your response. Did you run a full compilation of your project on Quartus before running the simulation? Make sure you compile it first.


    Otherwise, why don't you try delete the db folders from your project and start a new simulation? If that does not work, try changing your EDA settings from "Modelsim-Altera" to "None" so that the RTL simulator will choose automatically.


    Let me know if this helps.

    Regards,

    Nurina


    • JohanL's avatar
      JohanL
      Icon for New Contributor rankNew Contributor
      4 years ago

      I did run a full compilation before running the simulation. The compilation is successful, though there are 93 warnings.

      I have tried deleting the db folder and starting a new simulation. I did not change the EDA settings. I do believe this has given me new errors which is nice as it is hopefully a sign of progress.

      Now, you're talking about the RTL simulator, but I want to do a vector waveform simulation. Are these connected? Sorry I do not know exactly how things are related in Quartus.

      I have attached the "new" errors below and I will look into them more tomorrow, but for now I must sleep.

      Thank you again for your continued help.

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi,


    RTL simulator is a simulator that captures the expected Register-Transfer Level behaviour of an FPGA design, which is what the Quartus University Program VWF does. So yes, they are connected.


    From your error I think the problem is you named your signal "out", and this is illegal in VHDL/Verilog as that is a reserved name. Try renaming it out1 or anything else, I think that should solve your problem. BTW "in" is also a reserved signal name.


    I think you designed your project using .bdf right? The downside of this is that Quartus will compile it as .bdf design, and show you a clean compilation based on bdf rules. But the University Program will convert the design to VHDL/Verilog code first, and then make a testbench based on the code and run the simulation for you, here it will compile the files using VHDL/Verilog rules and you will see the errors here.


    Regards,

    Nurina


    • JohanL's avatar
      JohanL
      Icon for New Contributor rankNew Contributor
      4 years ago

      Hello,

      I do not have any pins labelled as "out" or "in". Maybe something is happening with the IP files I do not know.

      I need to get actual data from this as deadlines draw near. I will learn the RTL simulation tool and hope it works.

      If all else fails I will manually test the outputs in stages through an oscilloscope or do a fresh install and start over.

      Thank you for all of your help and maybe at some point I will figure it out. After this project haha

    • JohanL's avatar
      JohanL
      Icon for New Contributor rankNew Contributor
      4 years ago

      This may be a dumb question, but do all the blocks in a diagram need to be the same language type? i.e. all verilog or all vhdl? or does it not matter if they mix.

      • Nurina's avatar
        Nurina
        Icon for Regular Contributor rankRegular Contributor
        4 years ago

        I believe they need to be the same. You must have only one language in a file.

        You can have files of different languages though. As in, you can have 2 verilog design files and 3 vhdl design files in a project and it will be fine.

        Can you attach your .qar file so I can see what's the problem? To generate a .qar file, go to Project>Archive Project.

        Thanks,

        Nurina
