MAX10: Dual purpose pins DCLK, nCSO, DATA[0], DATA[1]

Hey everyone

I'm at the very beginning of a project where I want to implement a power converter digital controller on a MAX10 device. I have a little experience, but only with Lattice FPGAs and tools.

I'm using the MAX1000 development board with a 10M08SAU169C8G and Quartus Prime 20.1.

As a start I've implemented a binary counter using the on-board 12MHz oscillator and 8 LEDs. It works but I get the following warning, that I would like to handle:

Info (169124): Fitter converted 4 user pins into dedicated programming pins
Info (169125): Pin ~ALTERA_TMS~ is reserved at location G1
Info (169125): Pin ~ALTERA_TCK~ is reserved at location G2
Info (169125): Pin ~ALTERA_TDI~ is reserved at location F5
Info (169125): Pin ~ALTERA_TDO~ is reserved at location F6
Info (169141): DATA[0] dual-purpose pin not reserved
Info (12825): Data[1]/ASDO dual-purpose pin not reserved
Info (12825): nCSO dual-purpose pin not reserved
Info (12825): DCLK dual-purpose pin not reserved
Warning (15714): Some pins have incomplete I/O assignments. Refer to the I/O Assignment Warnings report for details

Seems it first complains about the JTAG pins, but after that about another (or the same?) 4 dual-purpose pins.

Does anybody know what I'm supposed to do here?

Also there is a warning, that I didn't specify timing constraints:

Critical Warning (332012): Synopsys Design Constraints File file not found: 'counter.sdc'. A Synopsys Design Constraints File is required by the Timing Analyzer to get proper timing constraints. Without it, the Compiler will not properly optimize the design.

Can somebody point me to a tutorial for a starting point how to do this?

Many thanks and all the best

Gaston

4 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor

    Hello,

    meassage lines starting with "info" are no warnings, just processing information. The warning about incomplete I/O assignments can be traced in the Fitter report/Resource Section/I/O Standards Section/I/O Assignments Warnings. You'll find hints like missing drive strength or missing location assignment for specific pins.

    You should have a .sdc file that at least declares the pin and frequency of your clock input. This enables the timing analyser to check the internal timing of your design.

    Frank

  • Gaston's avatar
    Gaston
    Icon for New Contributor rankNew Contributor

    This is what I find in the I/O Assignment Warnings:

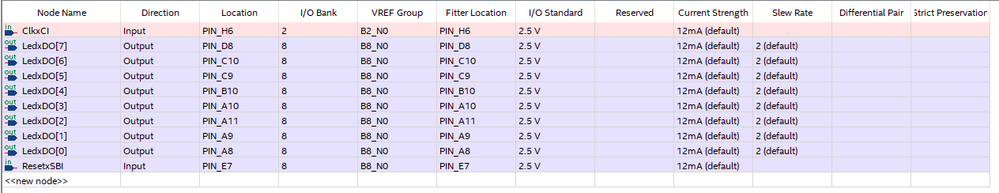

    This is the list in pin planner:

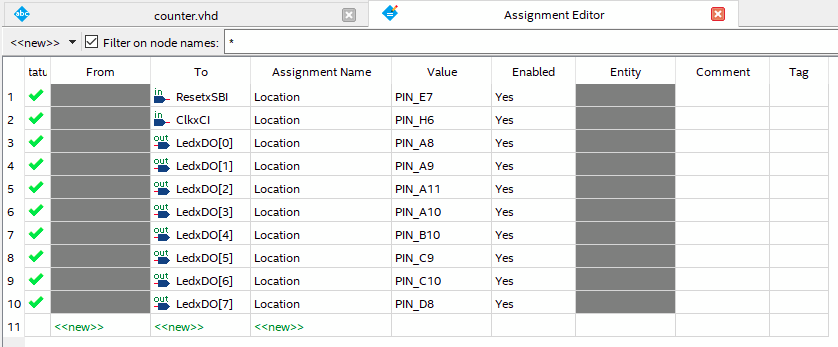

    The assignment editor:

    And the top vhdl:

    library ieee;
    use ieee.std_logic_1164.all;
    use ieee.numeric_std.all;
    use work.Counter_pack.all;

    entity counter is

     	port (

    	ResetxSBI    		: in  std_logic;
    	ClkxCI      		: in  std_logic;
       LedxDO     			: out std_logic_vector(7 downto 0)

    	);

    end counter;


    architecture behavioral of counter is

    	signal CountValuexD						    : unsigned(COUNTER_WIDTH-1 downto 0); -- count value

    begin

    	CntStateMachine: process (ClkxCI,ResetxSBI)
    	begin
    		if ResetxSBI = '0' then

    			CountValuexD <= to_unsigned(0,COUNTER_WIDTH);

    		elsif ClkxCI'event and ClkxCI = '1' then

    			-- determine next counter value
    			CountValuexD <= CountValuexD + to_unsigned(1,COUNTER_WIDTH);

    		end if;
    	end process CntStateMachine;

    	-- assign outputs
    	LedxDO <= std_logic_vector(CountValuexD(COUNTER_WIDTH-1 downto COUNTER_WIDTH-8));


    end behavioral;

    The mesage incomplete set of assignments seems to refer to the only two inputs of the design. The outputs seem to be OK. But I don't understand what's missing.

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

    clk_clk and reset_reset_n don't even appear in your design. Do you have any idea where these are coming from?
