failed to load results from design analysis and cannot get the list of IPs in the design

Hi,

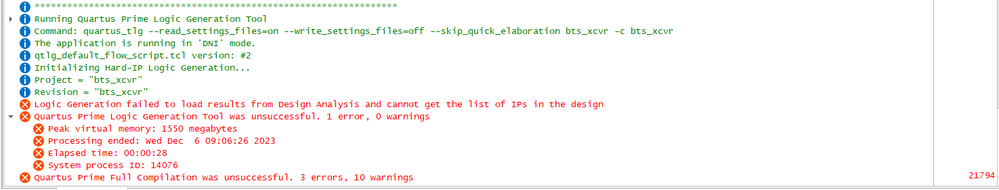

I have agilex 7 i series transceiver dev kit and i'm trying to using qsfp. There are example designs named bts_xcvr_nrz QSFDDD and bts_xcvr_pam4 QSFPDD0_1 that use qsfp. When i compiled the designs I am getting "Logic Generation failed to load results from Design Analysis and cannot get the list of IPs in the design". Also I'm adding here the error message;  

When I compiled other example designs such as bts_xcvr_nrz SDI etc. there is not problem. It only occurs if it is QSFP.

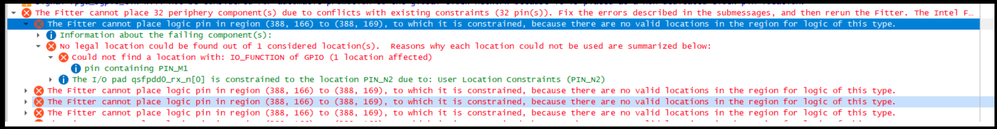

Also when I designed basic qsfp project without any IP, I can assign QSFP pins but during compilation this error occurs;

 Any help would be appreciated.

Hdl

5 Replies

  • Kshitij_Intel's avatar
    Kshitij_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,


    As we do not receive any response from you on the previous answer that we have provided. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.


    Thank you,

    Kshitij Goel


    • fey's avatar
      fey
      Icon for New Contributor rankNew Contributor
      2 years ago

      Hi, sorry, your response notification mail was in the spam folder. I saw your response this morning when I checked this page. I'm trying your suggestion. I'll inform you.

      I'm using Quartus 22.4 with 90-day eval license and AGIB027R31B1E2VR0 device on Agilex® 7 FPGA I-Series Transceiver-SoC Development Kit (4x F-Tile).

      Thanks

  • fey's avatar
    fey
    Icon for New Contributor rankNew Contributor
    2 years ago

    Hi,

    I tried these;

    Intel Agilex® device I-Series PCIe development kit (ES Version): 10GbE (10G-1), Single lane Example Demo design using QSFPDD1

    Intel Agilex® device I-Series PCIe development kit (ES Version): 1x8 channel 53Gbps PAM4 soft PRBS test design with KPFEC (544,514) in 2x200G Aggregate mode using FGT transceivers connected to QSFPDD1

    Intel Agilex® device I-Series SI/SOC Board (ES Version) (4 F-tile device): 1x8 channel 53Gbps PAM4 soft PRBS test design with KPFEC (544,514) in 400G Aggregate mode using FGT transceivers connected to QSFPDD0

    First two of that suitable for different device type and i can not open the last one.

    What must I do, which ones should I try?

    Thanks.

  • fey's avatar
    fey
    Icon for New Contributor rankNew Contributor
    2 years ago

    Hi @Kshitij_Intel ,

    I'm waiting for response. I'm not sure did you not see my answer or did the thread transitioned the community. Please inform me about this.

    Regards
