External Memory Interfaces Intel Cyclone 10 FPGA IP: MMR interface trouble

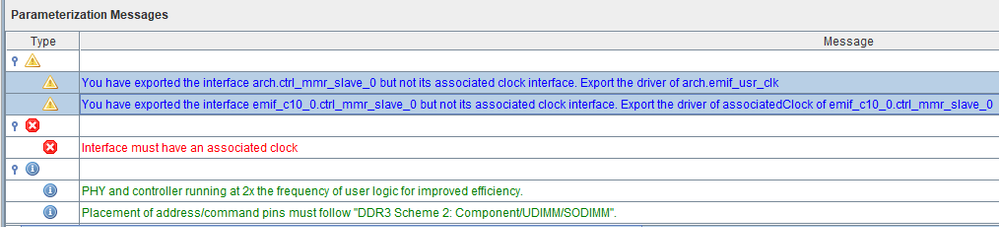

You have the MMR interface enabled, but you haven't connected a clock interface yet (pll_ref_clk). Once you connect the reference clock for the interface, the error should go away.

#iwork4intel

Dear sstrell,

Thank you very much for your desire to help me.

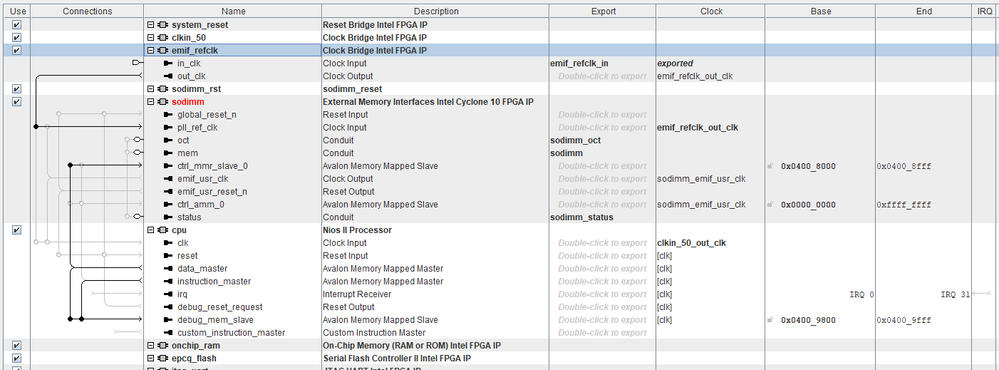

Actually the input "pll_ref_clk" is connected to "emif_refclk" (Clock Bridge Intel FPGA IP). This component is collapsed, but you can see the signal "emif_refclk_out_clk" in the column "Clock".

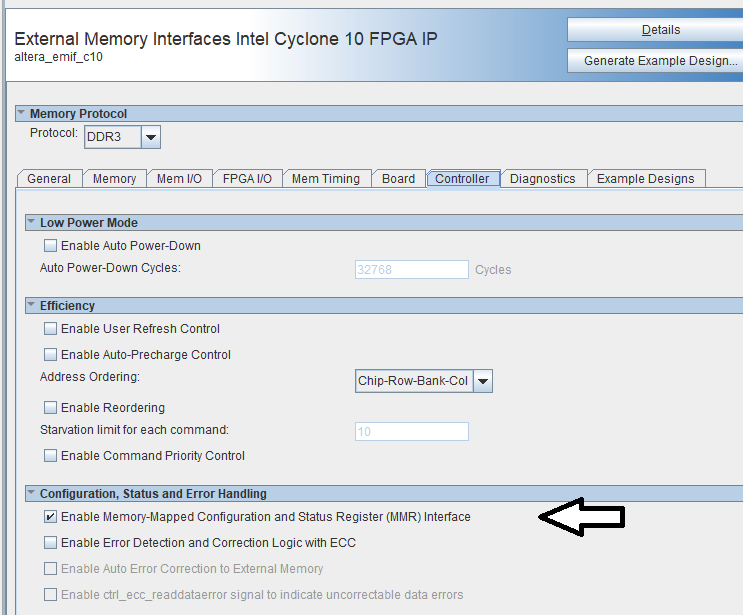

The project is already working, but the module is very hot and I wanted to switch DDR3 in the deep power-down mode at the time when image generation is not performed. That's why I want to use MMR register for control the deep power-down mode with sideband5/sideband10 addresses. But when I checked "Enable Memory-Mapped Configuration and Status Register (MMR) Interface" nothing inputs added to the "sodimm". And I don`t understand what I have to do in this situation?

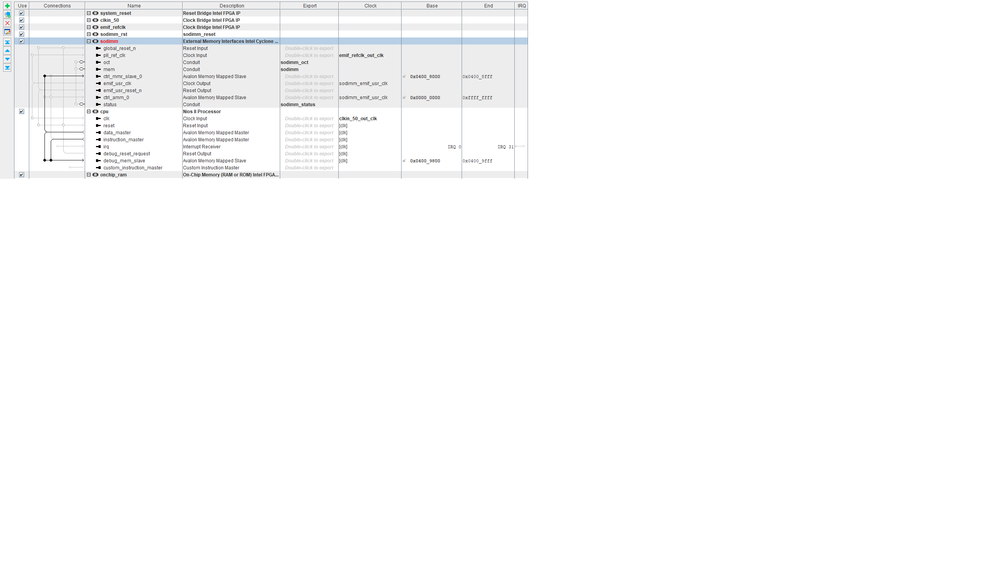

You normally don't have to set the associated clock for an interface on an off-the-shelf IP. The Clock column should be filled in with the associated clock interface in brackets ([ ]) like it is below in your Nios component, so I'm not sure what's going on here.

Since you're using Pro edition, I'd check the Component Instantiation tab and make sure you haven't accidentally changed or deleted the associated clock for the MMR interface.

I'd also recommend going into the EMIF IP's parameter editor again and generating the example design with the MMR option turned on. Take a look at how that project is set up and see if there's anything you need to replicate here in your main project.

Worst case scenario: delete the component from the system and add it back it (re-parameterize). Something has gotten messed up here with the associated clock property for the interface.

#iwork4intel

Dear sstrel, many thanks for your advice. I deleted the component from the system and added it back with MMR option turned on. Now everything is fine with MMR register 🙂

Unfortunately, the whole project is in slacks after compilation and now I try to understand why 😕

Hi Konst_777,

You can try to optimize the timing by change Quartus assignment -> setting -> compiler setting and select one of the performance option under Optimization mode then recompile design again. (refer to page 201 of the EMIF handbook for more details on how to optimize timing)

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug-20116.pdf

Hope this helps

Regards,

NAli1

Hi NAli1,

Many thanks for your advice. It really helped me.

I migrate my project to the Quartus Prime Pro 19.2 in the hope that there will be fewer problems with the new version. Indeed, something has improved. But, new problems have appeared.
