ES vs Production SOF

Hi, I am encountering this error: The device chain in Programmer does not match physical device chain. Expected JTAG ID code 0x4364F0DD for device 1, but found JTAG ID code 0x0364F0DD. The SOF was ...

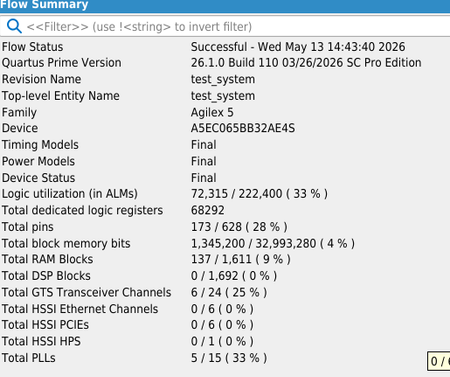

Compilation
Platform
FakhrulA_altera's avatar
FakhrulA_altera
Icon for Regular Contributor rankRegular Contributor
4 months ago



Hi,

The error is due to a JTAG ID mismatch between the SOF and the actual silicon. Most likely due to a JTAG ID mismatch caused by ES vs Production silicon revision, not a random JTAG readback issue.

The SOF expects ID 0x4364F0DD while the device reports 0x0364F0DD. This difference typically indicates an ES versus production silicon variant mismatch. Quartus performs a strict ID check before programming, and this validation cannot be disabled or bypassed in System Console.

This is not a JTAG read issue. It is a device targeting mismatch between the compiled SOF and the detected hardware.

Recommended action:

  • Recompile the design using the correct device variant that matches the silicon on your board
  • Ensure the Quartus device selection aligns with the actual JTAG ID being detected

Once the device and SOF match, programming should proceed normally.

Regards,
Fakhrul
