clock control intel FPGA IP is not correct in quartus prime pro 23.4

Question

I have created a project in quartus prime pro 23.4 ant I have used clock control intel FPGA IP as a MUX for clock.And When I run synthesis error encouted.

Error(13224): Verilog HDL or VHDL error at clk_mux_stratix10_clkctrl_2000_yem6tmi.v(67): index 1 is out of range [0:0] for 'clkselect'

And sorry my computer cannot upload any picture

Below is the detail part of clk_mux_stratix10_clkctrl_2000_yem6tmi.v module module

module clk_mux_stratix10_clkctrl_2000_yem6tmi_clksel_mux (

input inclk0x,

input inclk1x,

input clkselect,

output clkout

);

parameter num_clocks = 2;

genvar i;

wire [num_clocks-1:0] clk;

wire [num_clocks-1:0] clk_select; // one hot

reg [num_clocks-1:0] ena_r0;

reg [num_clocks-1:0] ena_r1;

reg [num_clocks-1:0] ena_r2;

wire [num_clocks-1:0] qualified_sel;

// A look-up-table (LUT) can glitch when multiple inputs

// change simultaneously. Use the keep attribute to

// insert a hard logic cell buffer and prevent

// the unrelated clocks from appearing on the same LUT.

assign clk[0] = inclk0x;

assign clk[1] = inclk1x;

// Decoder logic

assign clk_select[0] = ~clkselect[1] & ~clkselect[0];

assign clk_select[1] = ~clkselect[1] & clkselect[0];

sstrell · Answer

Dupe post.Answered in your other post that clkselect is single bit but you're using it as 2 bit.

ethanli · Answer

As mentioned above, the input clkselect should be 1bit while you defined it as 2 bit.Thanks,Ethan

microdick · Answer

Thanks, I know what this message means , but this Verilog file is automatically created by Quartus prime ,which is why i am confused

microdick · Answer

Thanks, I know what this message means , but this V file is automatically created by QUARTUS prime ,which is why i am confused

sstrell · Answer

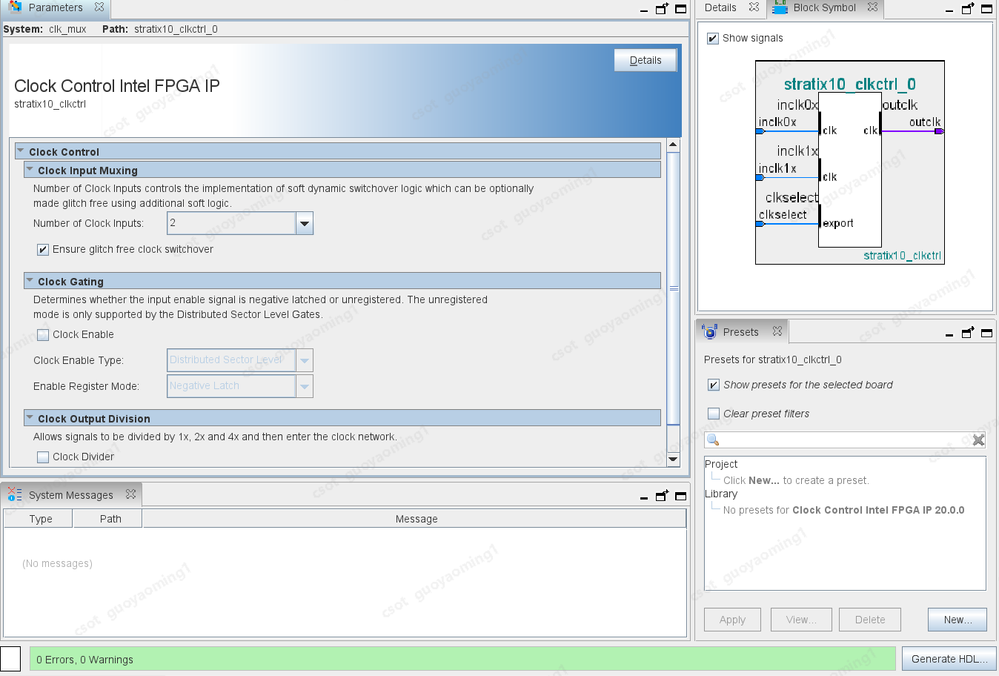

How are you generating this?  Is it from the IP?  Show your IP parameter editor settings.  If it's from an IP, the GUI would prevent you from using illegal values.
