Can't find a PCIe simulation library for post fit simulation.

I'm using a PCIe IP "Intel Arria 10/ Cyclone 10 Hard IP For PCI Express" in my Quartus Prime Pro 21.4 design. When I generate a netlist using the "EDA Netlist Writer" tool, I find that the netlist includes some libraries at the beginning of the .vho file. I have found these libraries in this folder: "quartus\eda\sim_lib". But, there is one library I can't find anywhere: "CYCLONE10GX_PCIE_HIP". I tried the "Launch Simulation Library Compiler" tool, but it also didn't generate this library. Where can I find this library?

Simulation

7 Replies

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,


    Can I know what is the simulation tools you are using ? Questa or Modelsim ?

    Are you using Windows version of Quartus or Linux version ?


    If you using windows version, please ensure that the path is shorten as that is limitation of the window.


    Regads,

    Wincent_Intel


    • YousefSherif's avatar
      YousefSherif
      Icon for New Contributor rankNew Contributor
      2 years ago

      Hi,


      I'm using Questa Sim on Windows 11.

      Sorry, I don't understand this sentence:
      "If you using windows version, please ensure that the path is shorten as that is limitation of the window."

      Regads,

      Youef Sherif

  • YousefSherif's avatar
    YousefSherif
    Icon for New Contributor rankNew Contributor
    2 years ago

    Hi,

    I made sure that my path was no more than 250 characters. The same problem occurs. Also, the "Launch Simulation Library Compiler" tool generates all needed libraries except for this one.

    Regards,

    Yousef Sherif

    • Wincent_Altera's avatar
      Wincent_Altera
      Icon for Regular Contributor rankRegular Contributor
      2 years ago

      Hi,

      Are you able to generate the design example if not in a simulation environment?
      Do you search all possible libraries in the directory?

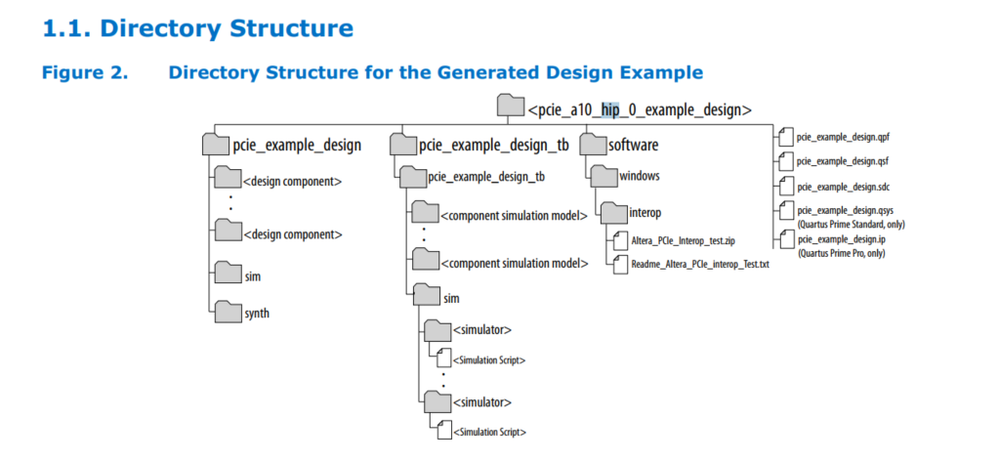

      Please ensure you generated testbench simulation scripts as example below

      many static design examples for simulation are only available in the

      <install_dir>/ip/altera/altera_pcie/altera_pcie_a10_ed/ example_design/a10 and <install_dir>/ip/altera/altera_pcie/ altera_pcie_a10_ed/example_design/c10 directories



      Regards,

      Wincent_Intel

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,

    I wish to follow up with you about this case.

    Do you have any further questions on this matter ?

    ​​​​​​​Else I would like to have your permission to close this forum ticket

    Regards,

    Wincent_Intel

    p/s: If any answer from the community or Intel Support is helpful, please feel free to give the best answer or rate 9/10 survey.


  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi

    We have not hear from you and this Case is idling. It is not recommended to idle for too long.

    Therefore following our support policy, I have to put this case in close status. My apologies if any inconvenience cause

    Hence, This thread will be transitioned to community support.

    If you have a new question, feel free to open a new thread to get support from Intel experts.

    Otherwise, the community users will continue to help you on this thread. Thank you

    If your support experience falls below a 9 out of 10, I kindly request the opportunity to rectify it before concluding our interaction. If the issue cannot be resolved, please inform me of the cause so that I can learn from it and strive to enhance the quality of future service experiences.

    Regards,

    Wincent_Intel

    p/s: If any answer from the community or Intel Support is helpful, please feel free to give the best answer or rate 9/10 survey.
