Arria 10 and Eye Viewer Support (Transceiver Toolkit)

Hi,

FPGA: Arria 10 10AX066K1F35I1HG

Software: Quartus Prime Standard 20.1

We would like to see and check the eye diagram of our display port inputs that are connected to transceivers.

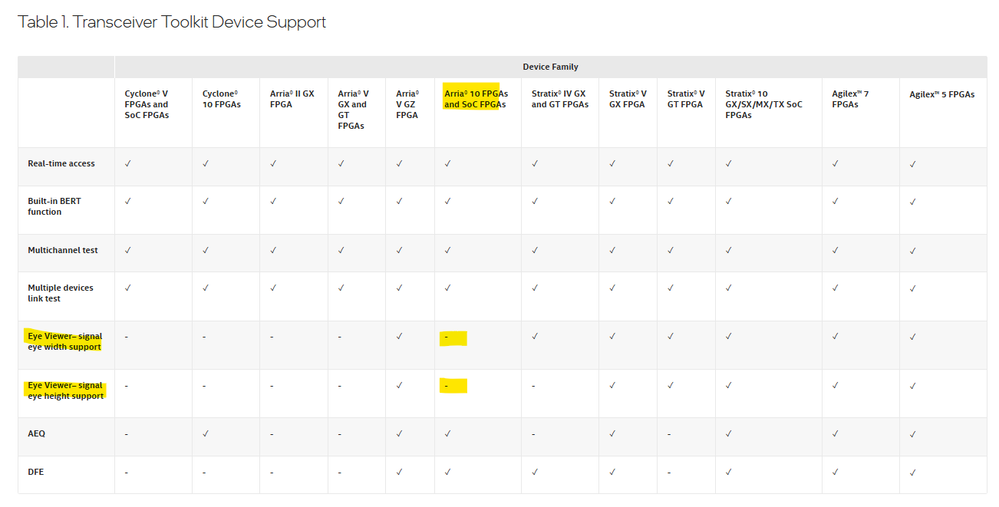

We've assumed that the transceiver toolkit (eye viewer) may help us in this manner but the table which is given in the below link says that Arria 10 FPGAs are not supported.

Quartus® Prime Software Features Transceiver Toolkit

So, is there any way to see the eye diagram of our transceiver input ?

Maybe using another quartus version/type, or another software, etc..

Thank you in advance for your help.
