Why does the Avalon-MM bridge add 5 bits of address (33 total) when connecting to a DDR3 memory controller that only needs 28 bits?

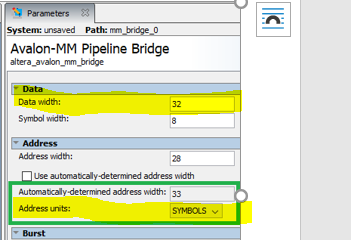

I have a Platform Designer design with two DDR3 memory controllers. They both require 28-bits address on the Avalon bus. I want them to look like contiguous memory. I want to connect an Avalon-MM Pipeline Bridge to connect them. The slave port on the bridge should be 29 bits with the high bit representing the switch between the two memory controllers. I configured each memory as 8GB (1Gx64) SODIMM configuration with row/column/bank equal to 16/10/3 bits. The memory controller suggests that I only need 28 bits of Avalon address. However, when I go through the Avalon-MM Pipeline Bridge component it adds 5 address bits on top of that. Can you tell me why? Can you suggest a better way to set up the memories so they look like one big memory? I could write the controller myself but was hoping Intel had IP to take care of it.
