Remote System Upgrade for ARRIA 10 FPGA Devices over UART with the Nios II Processor

Hi @n_scott_pearson

We want design Remote System Upgrade for ARRIA 10 FPGA Devices over UART with the Nios II Processor.

1. We want use UART terminal to upgrade .rpd file to flash EPCQL1024

can you explain me how to design that one. we tried all the example design but we are not able upgrade remotly.

  • JohnT_Altera's avatar
    JohnT_Altera
    5 years ago

    Hi,

    After you update the rpd file, do you performed reconfiguration or power cycle the board to see if the new image is being configured into the FPGA?

    The reason is that the rpd file update is only updating the flash content and not reconfigure the FPGA

7 Replies

  • BoonBengT_Altera's avatar
    BoonBengT_Altera
    Icon for Moderator rankModerator
    5 years ago

    Hi @APPU_appu,

    Thank you for posting in Intel community forum and hope this message find you well.
    Please help us better understand the situation with a few clarification, 1) What are the design example that have been tried? 2) As mention not able to upgrade, is there any error/warning upon compilation or programming? 3) Upgrades are done via .rpd files, did you managed to try programming via active serial interface?

    Warm regards.
    BB

    • APPU_appu's avatar
      APPU_appu
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Hi @BoonBengT_Altera

      Thanks for reply....

      This is our requirement: Remote System Upgrade over UART based on Nios II Processor with EPCQ1024 (ARRIA 10 FPGA Development Kit

      1. I reffered example project of max 10 and cyclone V remote system upgrade over uart based on the nios || Processor.

      2. there is no warning

      3.yes

      * In nios eclipse we don't how to write main.c program
      * generating the .rpd file using .sof and .hex we not abled update over flash

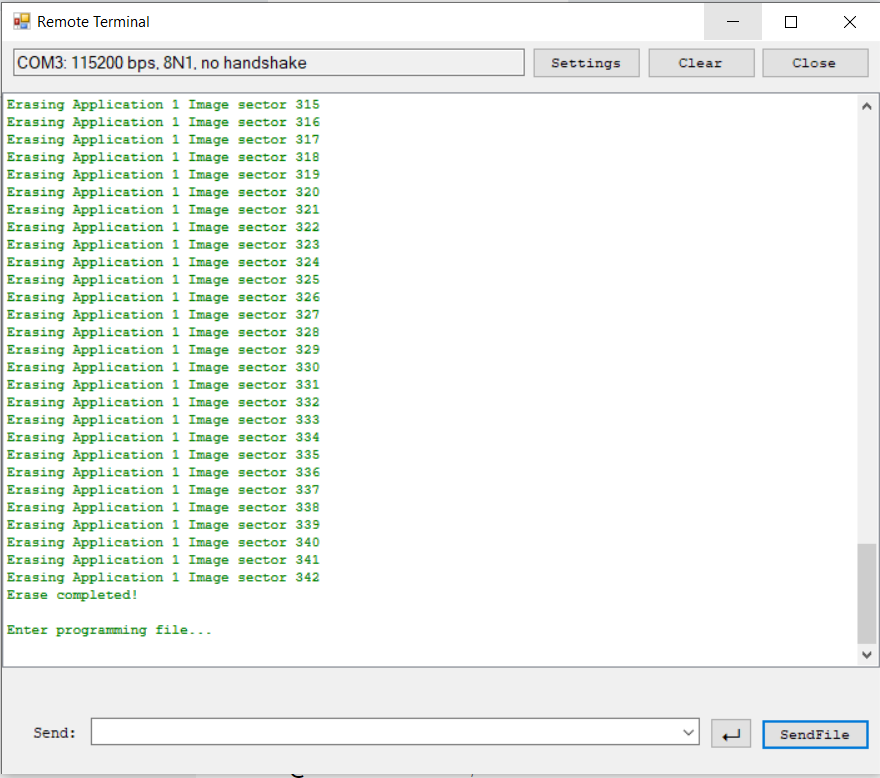

      below i attached one capture in that enter programming file displaying if i tried to update .rpd file it is not sending

      • APPU_appu's avatar
        APPU_appu
        Icon for Occasional Contributor rankOccasional Contributor
        5 years ago

        @BoonBengT_Altera @JohnT_Intel @Deshi_Intel @n_scott_pearson

        flash upgraded completely .
        1. after upgrading it is not giving expected result, it means after upgrading led should glow. if load .sof of same project lead will glow.but if load .rpd file led is not glowing.

        upgrading is taking more than 3 hours(Uart baudrate value is 115200)
