JESD Test Bench Simulation - no activity

Hello

I am using Quartus Prime Pro 22.4.0 on Windows and Questa Intel Starter FPGA-64 2022.1 on Windows.

The full path to my project is:

c:/jesd

and the project name is also "jesd".

The JESD204B IP that I created is called "my_j" and so the testbench resides at default directory:

c:/jesd/my_j_tb

The generation of HDL and Test-Bench from within the IP Parameter Editor was OK.

Note that I have configured JESD to match my specific board requirements.

Within Questa I am changing to directory:

c:/jesd/my_j_tb/my_j_tb/sim/mentor

and sourcing msim_setup.tcl

This proceeds to compile and elaborate without any errors.

However, when I run the simulation, there is no activity on any signals with the except of clocks and resets.

What am I doing wrong?

Thank you for any answers.

Jesd

8 Replies

  • ZH_Intel's avatar
    ZH_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    3 years ago

    Hi David,

    Thank you for reaching out.

    Just to let you know that Intel has received your support request and currently we are confirming the details with our internal team.

    Allow me some time to look into your issue. I shall come back to you with findings.

    Thank you for your patience.

    Best Regards,

    ZulsyafiqH_Intel


  • ZH_Intel's avatar
    ZH_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    3 years ago

    Hi David,

    Thank you for your patience.

    Allow me to clarify some of the items below:


    Q1. May I know which device are you using for your project?


    Q2. May I know are you using the example design or custom design? If you are using example design, which preset settings you are using?


    Q3. Is there any message comes up when running simulation? Have you tried using a linux environment?


    Looking forward to hear back from you so that we can proceed for next step.

    Thank you.

    Best Regards,

    ZulsyafiqH_Intel


  • ZH_Intel's avatar
    ZH_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    3 years ago

    Hi David,


    Good day.

    I wish to follow up with you on this case.

    We have not heard any feedback from you for quite some time.

    I would like to get update on the questions in my previous reply.

    Looking forward to hear back from you so that we can proceed for next step.


    Thank you.

    Best Regards,

    ZulsyafiqH_Intel


    • David32's avatar
      David32
      Icon for Occasional Contributor rankOccasional Contributor
      3 years ago

      Hi and sorry for the delay

      1. Targeting 10AS057H2F34E1HG

      2. custom design

      3. did not yet use Linux but that is on my list for the future. I did not notice any error messages.

      David

  • ZH_Intel's avatar
    ZH_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    3 years ago

    Hi David,

    Thank you for your patience and reply.

    We have run some tests from our end, at the moment, we did not find any abnormality and is working fine.

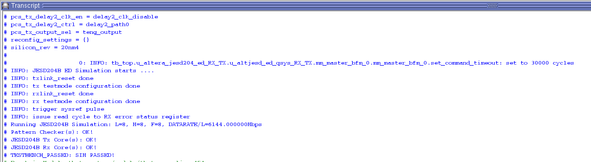

    Screenshot

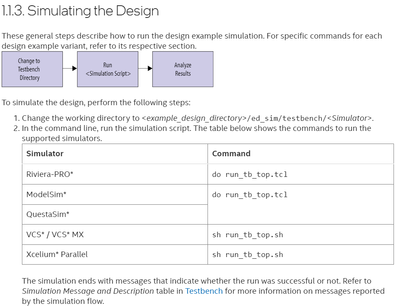

    Screenshot 2

    If you follow the steps above, by right it should be working fine.

    Q1. May I know the exact steps that you use to run the simulation? (command used), and Is there any licensing issue when opening Questa Intel Starter?

    Q2. Could you try it on linux environment?

    Q3. Are you running multiple Quartus version in your operating system? Could you please check you environment variables if the directory is correct.

    Environment Variables window

    I would also like to suggest below item and see if symptom still happens from your end:

    1. re-generate your design in a new folder and re-run the simulation.
    2. use the latest Quartus version for your design.

    Thank you.

    Best Regards,

    ZulsyafiqH_Intel
