IOPLL output clock issue Stratix10

Hi Team,

I configured iopll IP for three output clocks, (outclk0)100MHz, (outclk1)200MHz and (outclk2)600MHz. Ref clock is 100MHz.
I see duty cycle variation in the generated clock of 200MHz from iopll. I'm capturing the clocks using signal tap analyzer at a frequncy of 600MHz, genrated by same iopll.
Why the duty cycle is varying from 50%?

Clock waveform

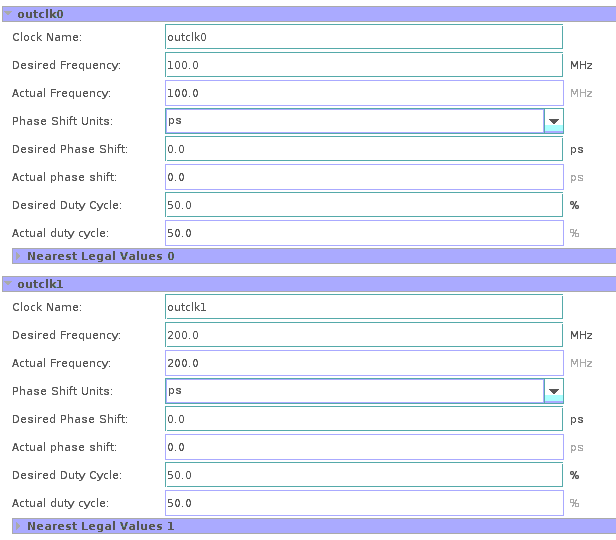

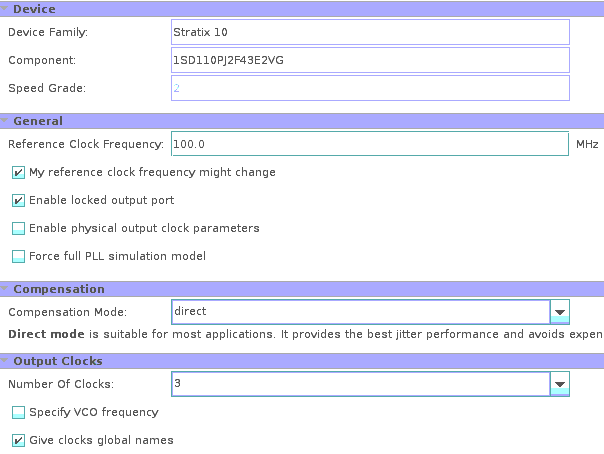

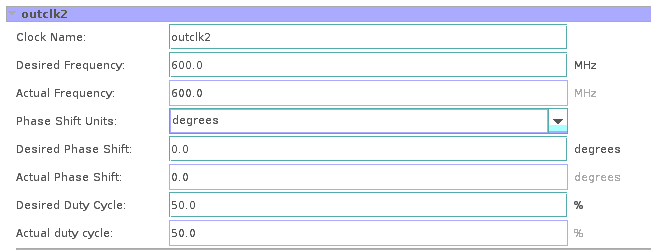

IOPLL Settings




Other Ips

4 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    6 months ago

    You're not going to be able to see accurate sampling for a signal that fast. Rely on the timing analyzer to verify your clocks, not Signal Tap, or output to a pin and view on a scope. Signal Tap is for functional debug of data signals, not analyzing clocks.

  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    6 months ago

    SignalTap uses a clock to capture the data, so it's dependent on that clock rate. For logic, you want it to be the same clock that drives the logic you're tapping, as you need to synchronously tap it. For probing a clock, I'm not sure exactly what you're hoping to see. Normally people have the clock drive a counter and then just sample that with another clock, to calculate X transitions happened in Y time.
