Intel P tile PCIE avmm for Stratix 10DX device

Hi ,

I integrated P tile PCIE avmm with 4 DDR memory. I am having doubt on connections in platform designer.

PCIe parameters:

gen3x16 is used with end point mode.

i am not getting proper utilization for my design.

can you please look into my connection is that correct or not ?

Thanks in advance

3 Replies

  • BoonT_Intel's avatar
    BoonT_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    5 years ago

    Hi 10,

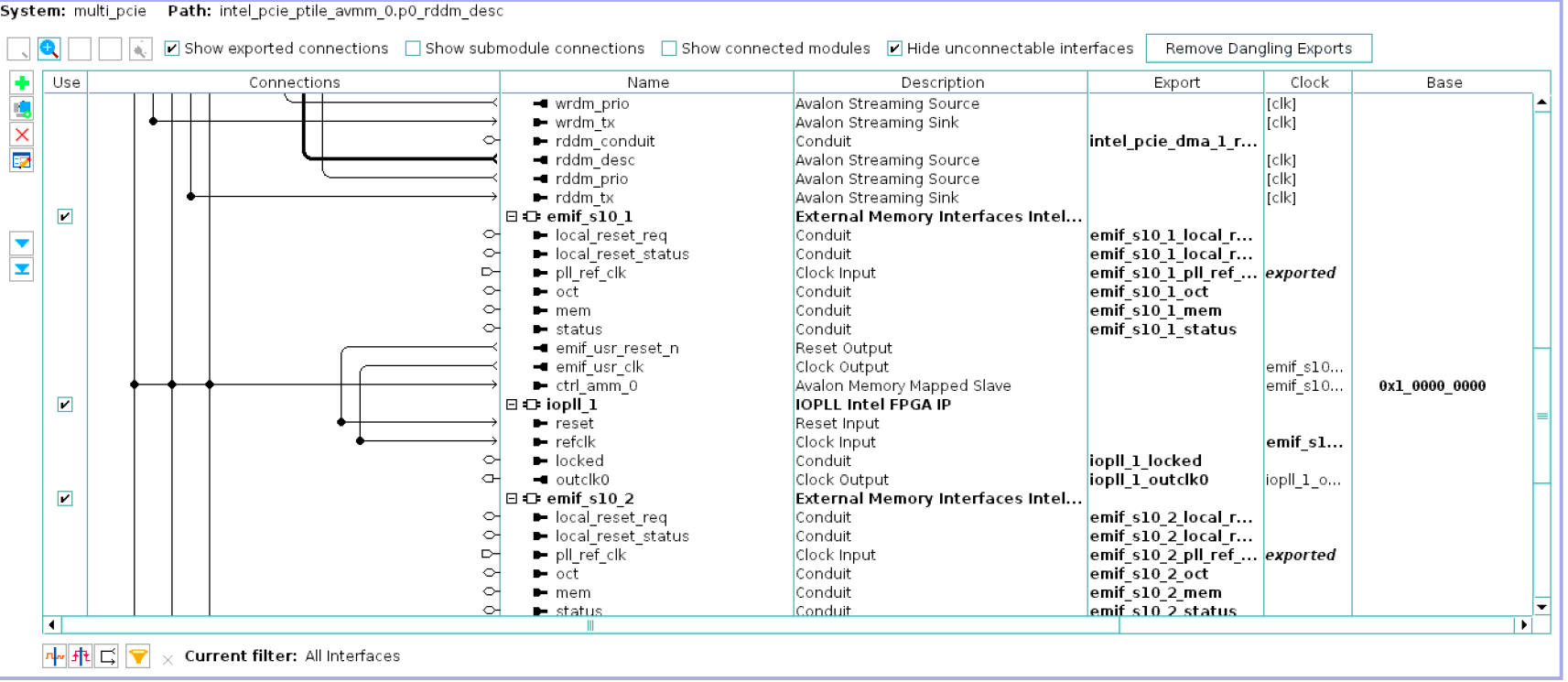

    With the screenshot, it is hard to look on it and understand in full picture. Perhaps you should attach the platform designer file (.qsys).

    By the way, you can look on the existing reference design (PCIe-DDR4) and compare it with your design?

    https://fpgacloud.intel.com/devstore/platform/18.1.0/Pro/pci-express-gen3-x16-avmm-dma-with-ddr4-memory-reference-design/

    Lastly, I can see you connect the emif_usr_clk to an IOPLL ref clock, this is looks like PLL cascading, I am wonder fitter allow you to pass the compilation?


    • 10's avatar
      10
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hi

      thanks for the reply.

      i will share my qsys file and please check it out if any changes mention it

      Thanks in advance

  • BoonT_Intel's avatar
    BoonT_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    5 years ago

    Hi Sir,

    What is the quartus version that you using? I am unable to open it, I think I need to use the same quartus version to open your qsys file.

    Anyway, do you have a chance to look at the reference design? I think you should refer to the reference design first. Thanks.
