emif burst size configuration

Hello Sir,

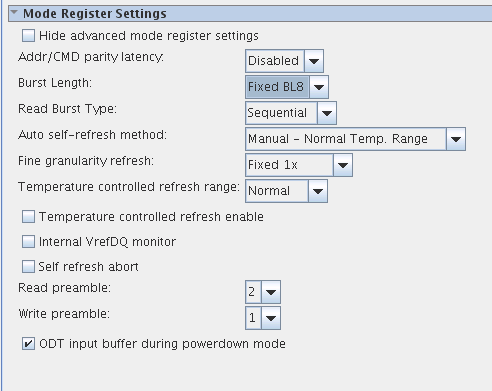

I think there are misunderstanding. The BL that you are seeing in this GUI is the BL between FPGA and the SDRAM device.

I believe you are interest on the Burst length on the local interface (Avalone -MM).

If yes, it is actually support 128Bits. See this document:

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug-20115.pdf#page=36

You do not need to set the local burst length value when you generate the IP. The IP will generate the local interface with the burstcount signals with 7 bits which is equal to 128.

Sorry, typo correction:

Hello Sir,

I think there are misunderstanding. The BL that you are seeing in this GUI is the BL between FPGA and the SDRAM device.

I believe you are interest on the Burst length on the local interface (Avalone -MM).

If yes, it is actually support BL up to 127. See this document:

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug-20115.pdf#page=36

You do not need to set the local burst length value when you generate the IP. The IP will generate the local interface with the burstcount signals with 7 bits which is equal to 128.

hi

thank you for the answer.

I tried reducing the burst size on the avalon MM bridges (Avalon MM Pipeline bridge IP) to 128 and 64, both did not work (when trying to read, the 'waitreq' asserts and stays high).

from what I understood from your answer this should work (when burst size was '1' it worked).

any ideas what may be the issue?

I'm working with data_size of 64 bit does that have any impact?

thanks

Hi, You can generate the example design and check how its work. Then compare with your traffic pattern and see any difference.

You also can run the simulation of the example design.
