CXL type 3 design example Design Assistant Errors

In building the CXL Type 3 example design in Quartus Prime Version 23.1.0 Build 115 03/30/2023 SC Pro Edition I get some CDC errors. I do not see them with the 22.4 build.

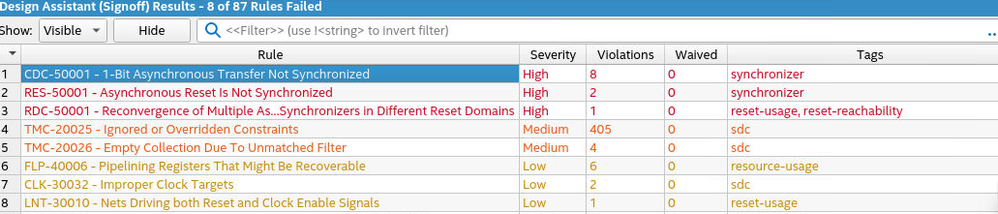

CDC-50001 - 1-Bit Asynchronous Transfer Not Synchronized 1
RES-50001 - Asynchronous Reset Is Not Synchronized 2
RDC-50001 - Reconvergence of Multiple Asynchronous Reset Synchronizers in Different Reset Domains 3
TMC-20025 - Ignored or Overridden Constraints 4
TMC-20026 - Empty Collection Due To Unmatched Filter 5
FLP-40006 - Pipelining Registers That Might Be Recoverable 6
CLK-30032 - Improper Clock Targets 7
LNT-30010 - Nets Driving both Reset and Clock Enable Signals 8

Transceiver

5 Replies

  • JonWay_C_Intel's avatar
    JonWay_C_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Generating and compiling the example design. Will update you if same observation.

  • JonWay_C_Intel's avatar
    JonWay_C_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    These DRC Checks were enabled late in 22.4 onwards. These errors are expected for 23.1 and expected to be fixed by 23.3.

  • brian1211's avatar
    brian1211
    Icon for Occasional Contributor rankOccasional Contributor
    2 years ago

    So the build should work fine in a system and shouldn't experience any CDC issues with the given errors correct?

  • JonWay_C_Intel's avatar
    JonWay_C_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    We do not receive any response from you to the previous question/reply/answer that I have provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
