Can an Application Ignore PCIe flow Control Credits?
I'm using a Cyclone V GT with PCIe core using Gen 1 Avalon-ST 64-bit endpoint interface. Occasionally packet sending would stall and I had thought it was because I was ignoring the flow control credits. But after properly handling tx_st_ready going low, the problem seems to have gone away.
So the question is can I ignore the flow control signals as long as I throttle the sending when tx_st_ready goes low?
In the flow control section of the UG-011110 dated 2020.06.02, it says

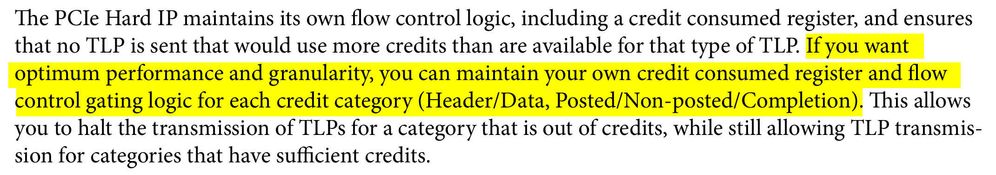

That is not important for our application. But then after spending several paragraphs explaining how the PCIe Hard IP tracks and checks credits, it make says:
Can I assume that is only in the case described in the yellow highlight?

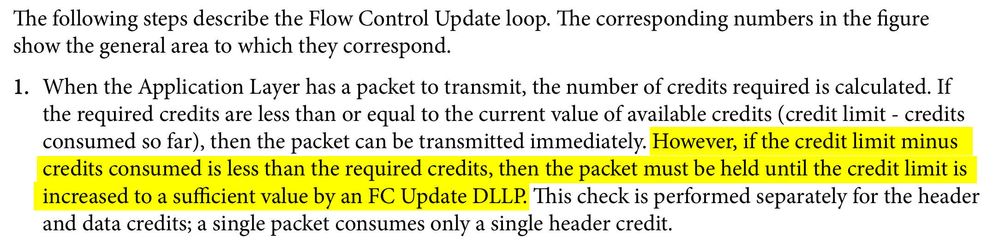

Also, in the flow control update loop description, is says:
Is that where the Hard IP is lowering tx_st_ready so the App is indirectly handling credits?
If so, one odd thing is that sometimes tx_st_ready does not go low until toward the end of a packet write (ie closer to the EOP and the SOP). I would think it would do the credit check as soon as it had the TLP headers which contain the type, number of dwords etc.
Just a suggestion, but for Apps that did want to optimize throughput, it would have been helpful to just expose the credit limits to the App instead of making it independently keep track of them. The credit system is a bit confusing.
2 Replies
- VenT_Altera
Frequent Contributor
Hi corestar
Thank you for your question. I will go through your enquiry and get back to you soon.
Thanks.
Best Regards,
Ven Ting - VenT_Altera
Frequent Contributor
Hi corestar,
My apologies on the delayed response.
Yes, the flow control signal (tx_cred_*) can be ignored and honoring tx_st_ready is sufficient. The Hard IP performs the mandatory PCIe credit check on every TLP internally; if credits are short it blocks the TLP (and all following ones) and expresses that back-pressure solely by deasserting tx_st_ready. The flow control signals are needed to track credits to optimize the throughput, which is optional.
Regarding the credit limits, the Avalon-ST TX datapath does expose them. The six credit limit signals tx_cred_hdrfcp/datafcp, tx_cred_hdrfcnp/datafcnp, tx_cred_hdrfccp/datafccp carry the current per-type credit limits; the tx_cred_fchipcons strobes each credit the Hard IP consumes; and tx_cred_fc_infinite flags infinite types.
