virtual clock - latch and launch clock on same cycle

Hi,

I am defining a virtual clock in .fdc file for work with external device as in the link here:
https://www.intel.com/content/www/us/en/docs/programmable/683068/18-1/creating-virtual-clocks.html

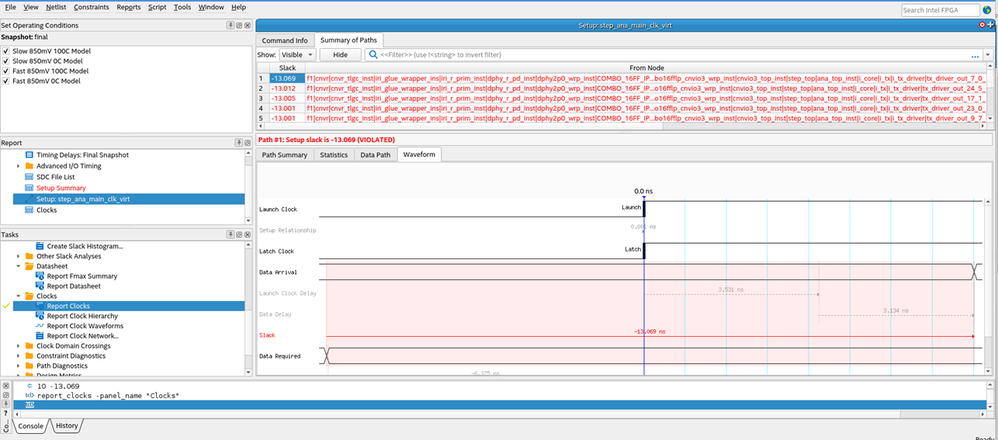

When calculating setup timing - Quartus fails on paths from my system_clk to the virtual clock because it refers to it as if the launch and latch are on the same cycle (picture attached).

How can I change Quartus STA to set the launch and the latch clock to be in next cycle ?

Thanks ahead,
Nitzan

Configuration

13 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Very difficult helping with this without seeing your .sdc. Can you post it?

    • NitzanD's avatar
      NitzanD
      Icon for New Contributor rankNew Contributor
      3 years ago

      Do you mean .scf file ?
      I synthesize with synplify_premier which uses Quartus for P&R, so I have .fdc file and .scf file

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi Nitzan,


    Can you share your .qar file? To generate this, go to Project>Archive Project.


    Regards,

    Nurina


    • NitzanD's avatar
      NitzanD
      Icon for New Contributor rankNew Contributor
      3 years ago

      where to upload it?
      I don't want to share it on the forum.


      BR
      Nitzan

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    You don't have a .sdc file with your timing constraints in it? (create_clock, set_input_delay, etc.)

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi Nitzan,


    You can share in email. I'm sending you an email shortly.


    Regards,

    Nurina


    • NitzanD's avatar
      NitzanD
      Icon for New Contributor rankNew Contributor
      3 years ago

      Hi, have you seen my email? I sent it as you asked.

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    Yes I have. Can you please try set_multicycle_path as stated in the email? I have sent detailed information in email.


    Regards,

    Nurina


    • NitzanD's avatar
      NitzanD
      Icon for New Contributor rankNew Contributor
      3 years ago

      Hi,
      In addition to what I sent in email, I want you to see again this picture that happens when I don't define 'multicycle path' :



      Also another question - do the real clock and virtual clock should be in the same async group?
      set_clock_groups -asynchronous -group [get_clocks { main_clk main_clk_virt}]

      BR
      Nitzan

  • SyafieqS's avatar
    SyafieqS
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Hi Nitzan,


    It seems like you are encountering a setup timing violation issue in your design involving a virtual clock in a .fdc It is hard to see without the full constraint. I am suspecting there might be an issue on the input/output delay calculation that causing the launch and latch clock to be in the same phase.


    Also another question - do the real clock and virtual clock should be in the same async group?

    -From what I am seeing, in the scenario you've described with a real clock and a virtual clock, the concept of asynchronous clock domains might not directly apply. Both clocks are likely derived from the same master clock and are intended to be related, just with different clock frequencies or phases. Therefore, they may not need to be considered as separate asynchronous clock domains


  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hello Nitzan,


    Usually you don't have to specify that real clock and virtual clock are in different clock groups.

    As mentioned in email, I think the problem is that you are using the same virtual clock for both input and output delay.

    Have you tried using different virtual clocks for input and output delay?


    Regards,

    Nurina


    • NitzanD's avatar
      NitzanD
      Icon for New Contributor rankNew Contributor
      3 years ago

      I haven't. why should they be different ?

      BR
      Nitzan

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    3 years ago
