Subject: Issues Implementing Hitless Update on MAX 10 via Quartus Prime Programmer (AN904)

Target Devices: 10M08SAU324I7G / 10M25SAU324I7G

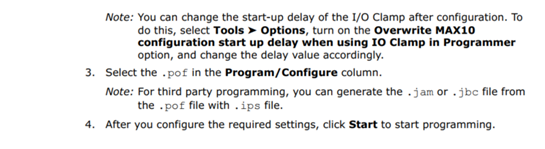

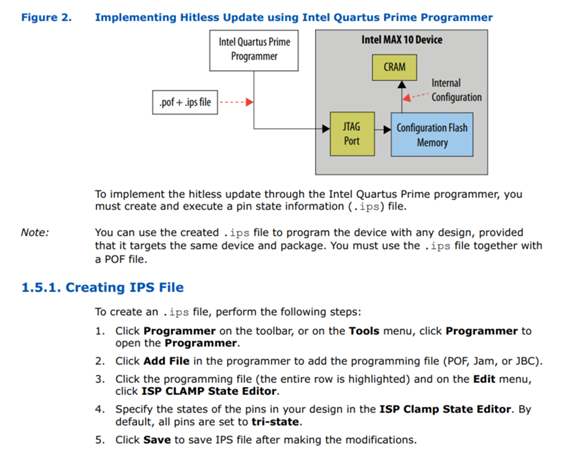

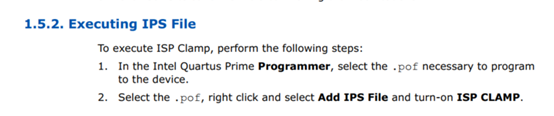

Reference Document: Intel AN904 (Section 1.5: Implementing Hitless Update using Intel Quartus Prime Programmer)

Problem Description:

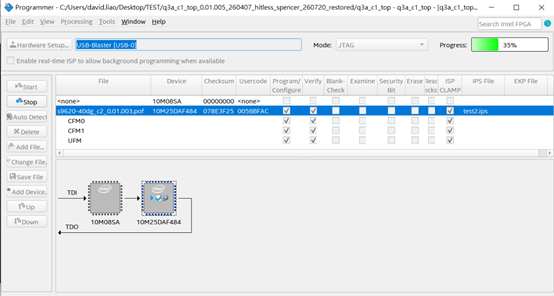

We are following the guidelines in AN904 (Section 1.5) to implement a Hitless Update on a MAX 10 FPGA using Intel Quartus Prime Programmer along with an .ips file for ISP CLAMP settings.

We have successfully created (Creating IPS File) and loaded (Executing IPS File) the .ips file. However, during flashing tests, we are unable to achieve a true hitless update (i.e., updating and activating the new firmware live without disrupting active logic execution).

Depending on the Programmer settings, we observed two distinct behaviors:

Test Scenarios & Results

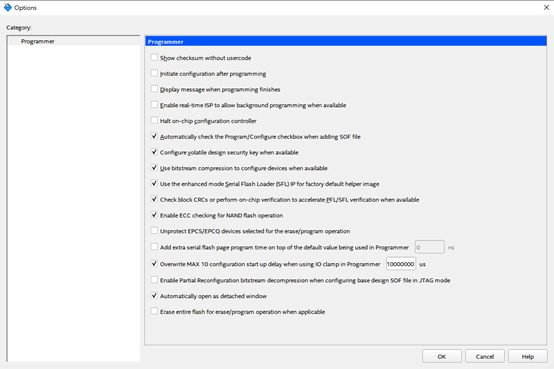

Scenario 1: "Enable real-time ISP to allow background programming" is UNCHECKED

Result & Behavior:

The new firmware (FW) takes effect after programming completes, but the process is NOT hitless. Since the 10M25 FPGA controls the board's power sequencing (PWR SEQ), the FPGA logic stops running during programming, triggering an unintended system/machine reboot.

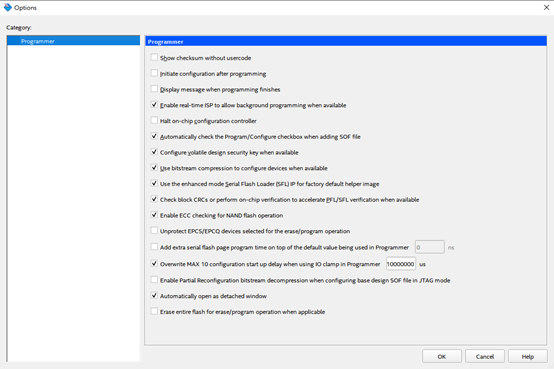

Scenario 2: "Enable real-time ISP to allow background programming" is CHECKED

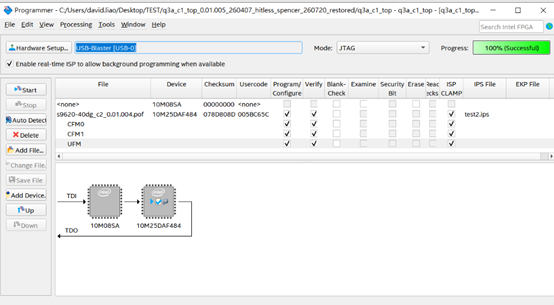

Result & Behavior:

Background programming finishes successfully without interrupting system operation. However, the new firmware does NOT take effect immediately. A manual Power-On Reset (POR) / power cycle is required for the new firmware image to actually load and run.

Questions

1.Is there any key step or setting missing in our Quartus Programmer setup or workflow?

2.When Real-time ISP is enabled, how can we properly trigger an internal reconfiguration after programming completes, so that the new image loads immediately while the I/O pins remain clamped (Hitless)?

3.Please let us know if any additional details, logs, or project configurations are needed to help diagnose this issue.

Thank you in advance for your support!
