signal tap invalid data received

Hello,

I have an ALTERA USB Blaster, some year ago i used it with a Cyclone IV without any problem using Signal Tap .

Now i am trying to use the same ALTERA USB Blaster with EP4CE10E22 , it works ok downloading the bitstream, but using Signal tap i got the next situation.

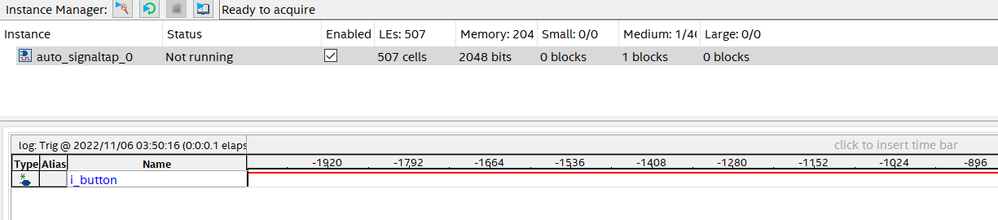

* it is a simple scheme , i use a button to turn on a LED, when i read the state of the button , the state is always '1' , even when i press the button (state '0') the state doesn't change

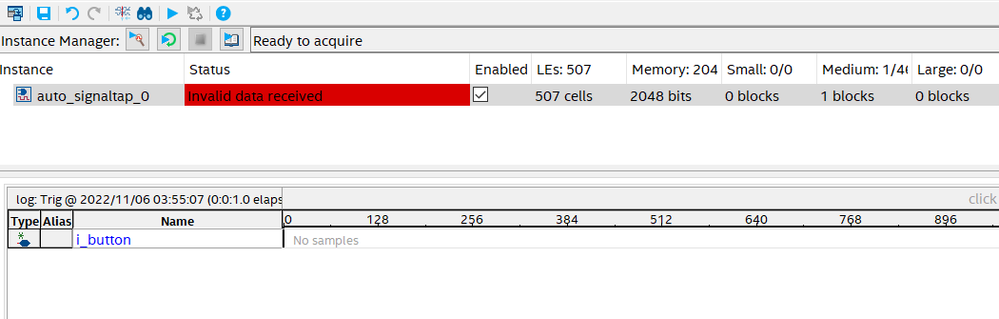

*when i press Autorun analysis, it shows "invalid data received"

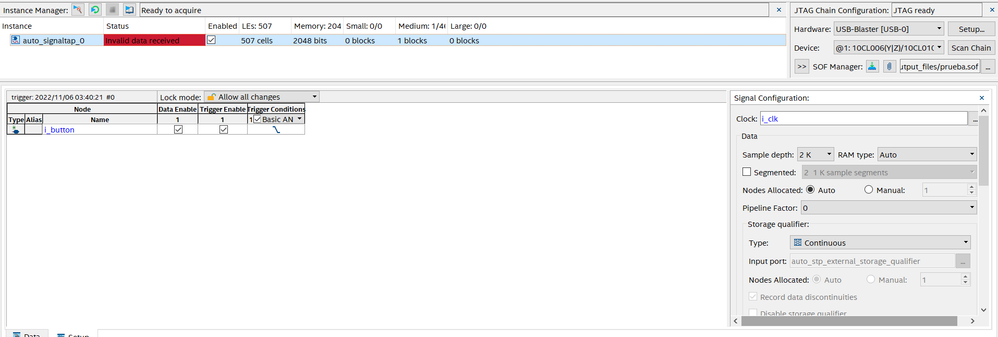

*if i set a falling edge trigger condition to the i_button, it shows "waiting for trigger" and after some seconds it shows "invalid data received"

This is the program

module prueba(i_clk, i_button, o_led);
	input i_clk;
	input i_button;
	output reg o_led;

	always@(posedge i_clk) begin
		o_led <= i_button;
	end
endmodule

thanks in advance

4 Replies

  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    CAUSE: You tried to run the Signal Tap Logic Analyzer, but the communications cable or circuit board is disconnected, or you made changes to the circuit board. As a result, the Signal Tap Logic Analyzer cannot acquire data.


    ACTION: Make sure the communications cable and circuit board are connected to your system, and re-attempt to run the Signal Tap Logic Analyzer.


    Reference: https://www.intel.com/content/www/us/en/programmable/quartushelp/current/index.htm#msgs/msgs/esedq_jtag_err_handware_changed.htm


    Most likely is connection issue or you might have made changes to the signal tap and need to recompile.


    Best Regards,

    Richard Tan


    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 9/10 survey.


  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    May I know does my latest reply help to solve your problem?


    Best Regards,

    Richard Tan


  • JC_arlen's avatar
    JC_arlen
    Icon for New Contributor rankNew Contributor
    4 years ago

    Hello, sorry for being late to answer.

    I tested the USB blaster with another board and it works perfectly, so there is something wrong with my board. It is strange because i don't have any problem to download the bitstream.

  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    Good to hear that you are to resolve the issue!
