PCIe on Cyclone IV and Quartus Prime 24.1 Lite Edition

Hello,

when I look into the IP Catalog I found in the Library -> Interface Protocols the PCI Express Option only for Cyclone V, but not for Cyclone IV GX. Is this not supported by this software version?

Regards

Gerhard

Configuration
Generic Io

2 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    9 months ago

    Hi,

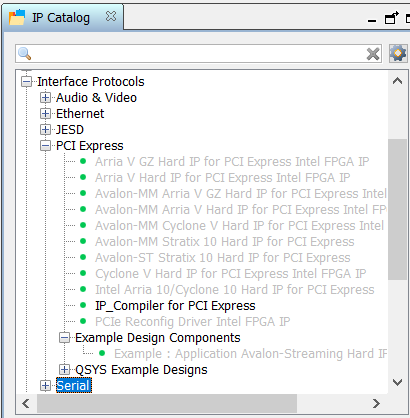

    for Cyclone IV GX designs, IP Compiler for PCI Express is only available in Platform Designer.
    Unfortunately there are apparently no ready-to-use example designs.
