Need "Installer Package" for Agilex F-Series FPGA Development Kit (ES -3V)

I would like to ask for help on the old development board and the matching Quartus version I recently found the “DK-DEV-AGF014E3ES” ,whichFPGA is AGFB014R24A2E3VR0, but there is no installation package on the official website, and I can't download the fpga model number with the latest “DK-DEV-AGF014EA” or “DK-DEV-AGF014EB”, but it doesn't match. DK-DEV-AGF014EA“ or ”DK-DEV-AGF014EB" fpga model number can not be matched, can not be downloaded! Translated with DeepL.com (free version)

Board Debug
Configuration

5 Replies

  • WZ2's avatar
    WZ2
    Icon for Frequent Contributor rankFrequent Contributor
    5 months ago

    Hi there,

    Due to the mismatch in board models, the content in the Max device might also be different. I can check whether there is a working package available for this ES version of the board that you can use for recovery.

    Best regards,

    WZ


  • WZ2's avatar
    WZ2
    Icon for Frequent Contributor rankFrequent Contributor
    6 months ago

    Hi there,

    Yes, the “DK-DEV-AGF014E3ES” is no longer supported. However, based on my review, the DK-DEV-AGF014E3ES board is identical to the DK-DEV-AGF014EA series except for the FPGA itself.

    Therefore, if your goal is simply to program a design onto the DK-DEV-AGF014E3ES board, you can use the DK-DEV-AGF014EA project and replace the device with the ES version.

    Best regards,

    WZ


    • xiaren's avatar
      xiaren
      Icon for New Contributor rankNew Contributor
      5 months ago

      Hi, after I use the factory_recovery provided by DK-DEV-AGF014EA to update the power_max10_recovery and ubii_max10_recovery firmware, the whole board can't work properly, for example, the smartVID of the fpga can't get the correct voltage, and the HPS part can't be found on the JTAG .
      .Please tell me how to recover it , thank you.

  • xiaren's avatar
    xiaren
    Icon for New Contributor rankNew Contributor
    5 months ago

    Thanks a lot for providing the file package, now I can download the FPGA program normally !!!

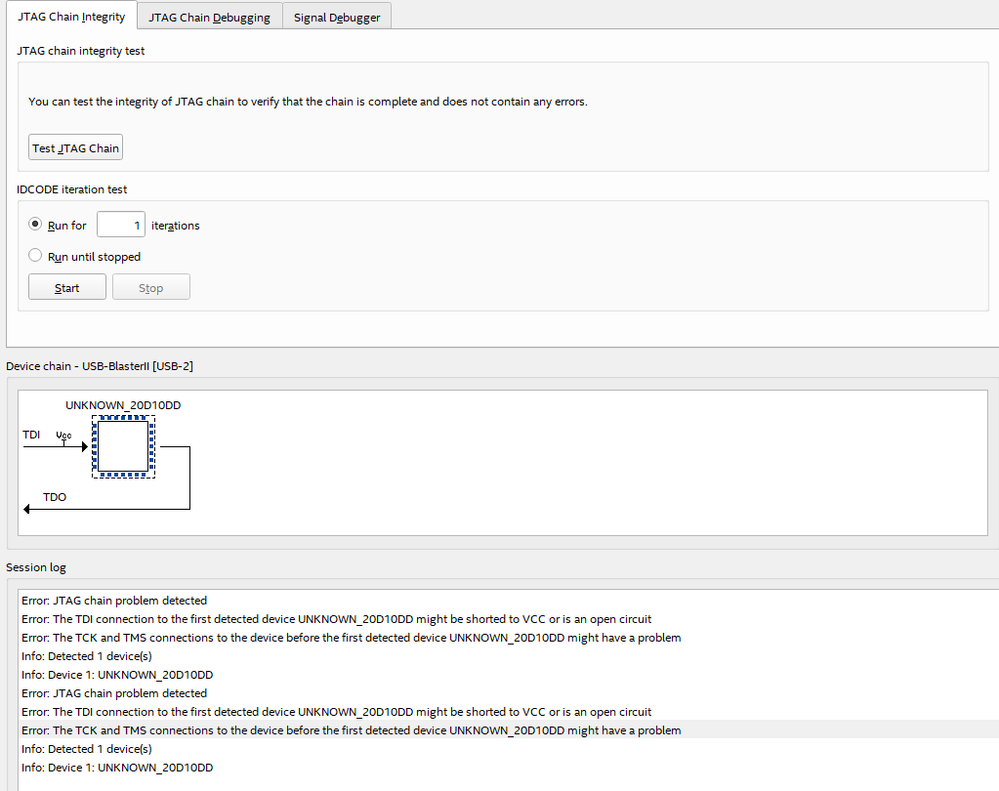

    however, I still can't find the JTAG for HPS, (only the jtag for HPS is turned on,sw4.3 on)
