Modelsim stuck in clock_div loop

Hello

I am using Arria FPGA configuration from Max II CPLD with m29ew parallel flash x8 mode I am not using PFL megacore IP.

I am using configure fpga by using config_controller.vhd from intel official

please find in attachments

whenever I simulate these codes in Altera modelsim it will stuck in clock_div loop but when i press restart button in modelsim it will working good

kindly help us

Thanks

Nome

2 Replies

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi Nome,

    Based on the code provided, I had commented out those two modules config_state_machine and config_control_signal instantiations since not provided.

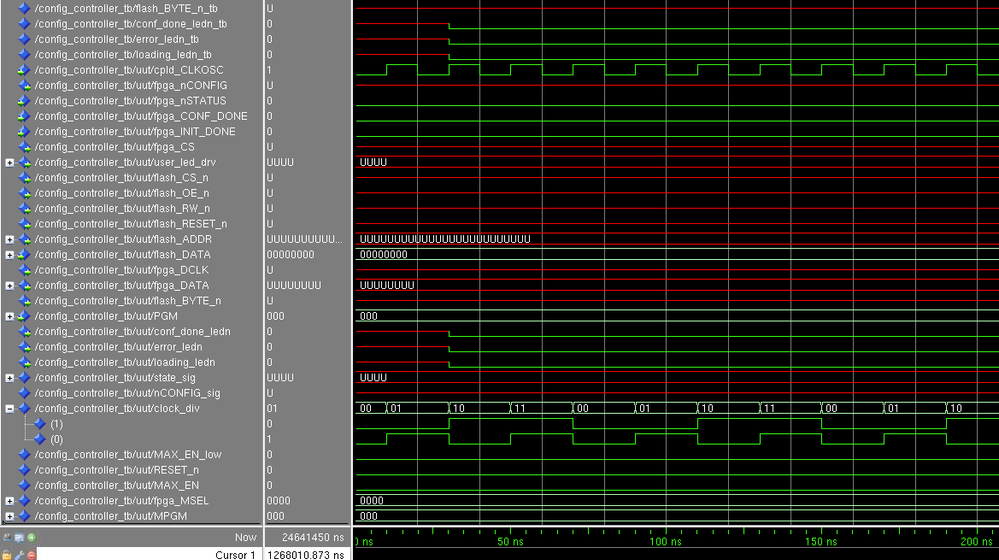

    I noticed you have commented out all the RESET_n port connection and instantiated signal RESET_n to '0' with signal RESET_n : std_logic := '0'; So signal RESET_n will be always '0'. Also, signal MAX_EN is always '0' as well. That's why it will stuck in clock_div loop and keep resetting like below pic.

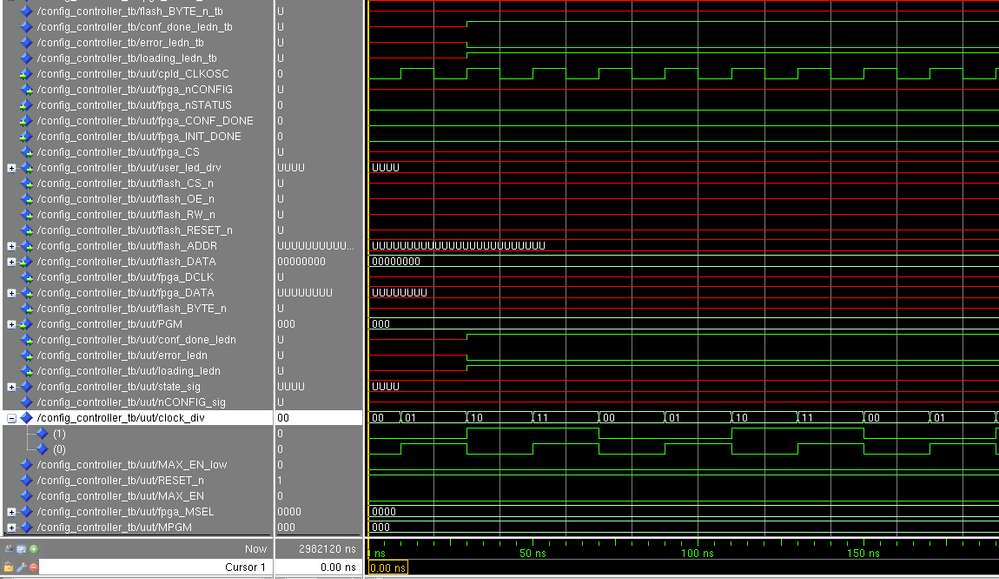

    If instantiated signal RESET_n to '1' with signal RESET_n : std_logic := '1'; It will no more stuck in clock_div loop like below pic.

    Thanks,

    Best regards,

    Sheng

    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,


    Let me know if you have any further update or concern?


    Thanks,

    Best regards,

    Sheng
