Max10 Programming with daul boot image

Dear Intel

I've compiled my project which has dual compressed image in it.

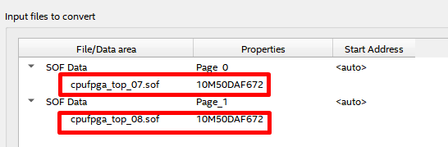

Also import two different .sof (07 and 08) in Page0 and Page1 respectively to convert an .pof file.

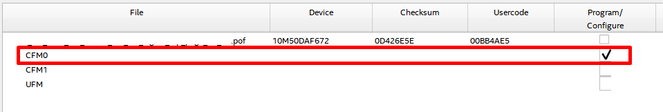

While I select the CFM0 only under Program/Configure in programmer tools , is it only programs Page0's image or it programs Page0 and Page1 in CFM0 at the same time?


Thanks!

Configuration
Programmable Logic Device
  • FakhrulA_altera's avatar
    FakhrulA_altera
    2 years ago

    Please be advised that due to the absence of a response from you regarding the previous notification we provided, we will be transitioning this thread to community support. If you have any new questions or concerns, we kindly suggest opening a new thread to receive assistance from Intel experts. However, if you do not have any further inquiries, the community users will be available to assist you on this thread. Thank you for your understanding.


6 Replies

  • Evan_shih's avatar
    Evan_shih
    Icon for New Contributor rankNew Contributor
    2 years ago

    Dear Fakhrul

    As you metion , Only Image 0 will be programmed if I check the CFM0.

    There is another question , what is Image 0 stands for ?
    Is it stands for an .pof which convert by two .sof (07 and 08 ) or it stands for an sof ( 07 ) only ?


    Thanks for your relay.
    Evan

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,

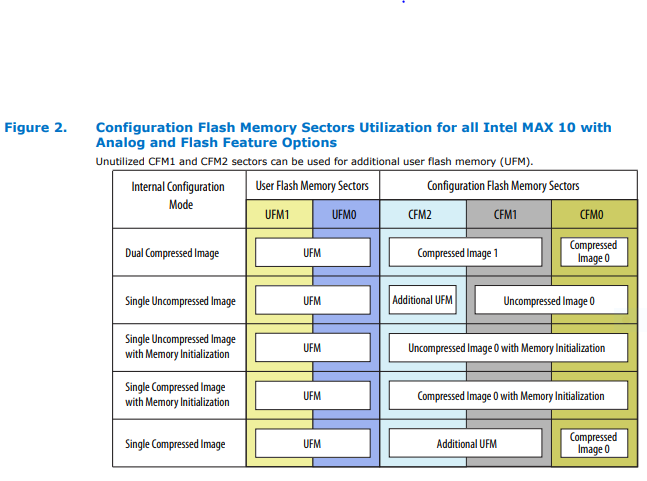

    you definitely should review the above mentioned configuration user guide. It clarifies about flash memory utilisation in dual boot configuration. CFM1 in Quartus Programmer stands for CFM1 + CFM2.

    Page0/CFM0 is usually the factory image in a RSU configuration, Page1/CFM1 the application image.

    Regards
    Frank

    • Evan_shih's avatar
      Evan_shih
      Icon for New Contributor rankNew Contributor
      2 years ago

      Dear Frank

      Thanks for your reply.

      Yes, I've study the configuration user guide already.

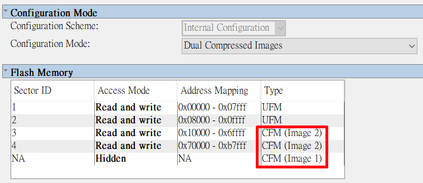

      According to Onchip flash IP setting on my design to compare the table you post and also the user guilde's change list the Image 2 should stands for CFM1 and Image1 should stands for CFM0 , right ?


      Here is the question , if I only select CFM0 under Program/Configure in programming tool. It should be programmed image0(Page0) into the Flash.
      While I earsed the CFM0 by programming tool it should not have any logic implement in next AC power on.
      But result shows Image1(Page1) instead.

      It was confused me that is only Image1( Page1) 's sof exist in CFM1 ?

      P.S. I've eraserd CFM0/CFM1/UFM before programming CFM0 only .




      Thanks!
      Evan.

      .

  • FakhrulA_altera's avatar
    FakhrulA_altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi Evan_shih,


    My apologies as I have overlooked your comment. Yes, you are right, if CFM0 is erased, the FPGA will attempt to load the configuration from CFM1 (image 1) instead.


    Regards,

    Fakhrul
