Incorrect PLL simulation in Questasim

Hello, everybody !
I'm new in FPGA and i have a problem with PLL simulation in Questasim.

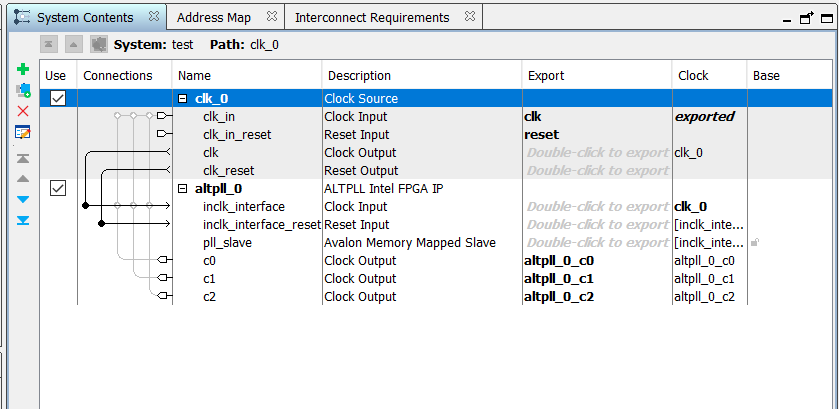

I'm create clear project, in Platform Designer add ALTPLL core and connect to clock source clk and reset. c0, c1, c2 conducuits is exported.

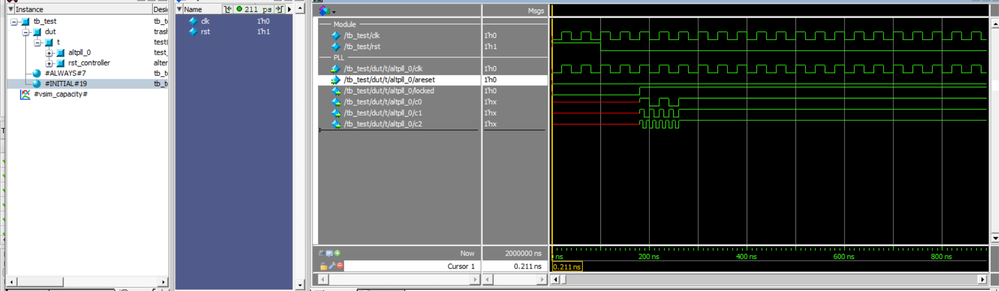

In questasim i get this plot. Pll generate c0/c1/c2 a little bit and then stop generate signals. Why does it work that way? How i can fix it ?  Project attached in the end of post.
