How to set up Cyclon 10gx transceiver 10g base SR （Short Range 850nm MMF）/LR(Long Range 1310nmSMF )/ER？

Hello,

  • I'm using the device of cyclon10gx, and I use the high-speed transceiver in it. My preset protocol is 10g base r..However, one of my clients USES an xilinx FPGA,We'll have optical communication
  • , and his 10G BASE R protocol needs to set up a 10G BASE SR or 10G BASE LR.
  • So,I want to know :
  • 1 ,can I set this in the high-speed transceiver of c10gx,How do I set up the correct docking?

2, Use the high-speed transceiver of c10gx to preset 10g base r. Should the single-mode(SM 850nm) optical module(SFP+) or multi-mode optical module be used?

THANK YOU!

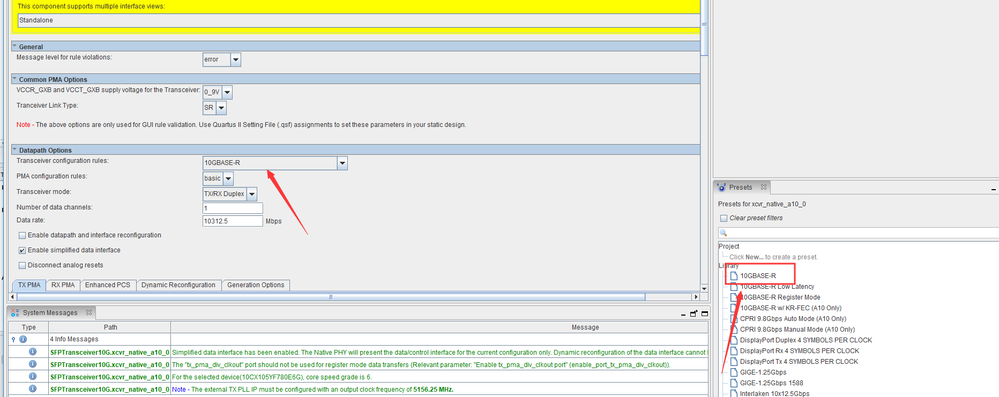

This is my setup for the high speed transceiver using the C10 device

​

3 Replies

  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    HI,

    Pls see my reply below.

    1. 10G BASE SR or 10G BASE LR setting in NativePHY
    • At the top of NativePHY IP gui, there is one section called "transceiver link type" where user can select either SR or LR option.
    1. Use the high-speed transceiver of c10gx to preset 10g base r. Should the single-mode(SM 850nm) optical module(SFP+) or multi-mode optical module be used?

    Thanks.

    Regards,

    dlim

    • syang97's avatar
      syang97
      Icon for New Contributor rankNew Contributor
      6 years ago
      • 1 Thank you very much, I've noticed the options in the NATIVEPHY IP GUI called "transceiver link type",But here's the explanation is RS :Chip to chip coummunication ;I don't know if this is the same as the" sr" in the 10gbase r protocol,
      • Now I know. Thank you very much
      • 2 My transceiver link type was selected as SR. I found in the actual test that both multi mode fiber and single mode fiber could receive data, but there was always a bit error rate, which may be caused by the incompatibility of the optical module I chose
      • 3 The XGMII interface data I receive sometimes has a bit of an order reversal, for example : The correct data should be :07060504_03020100; But sometimes the data I received was 03020100_07060504, and It's correct most of the time
      • Have you ever encountered a similar situation in this respect? Is it the same as the second problem? Is it caused by the incompatibility of the multi mode fiber I chose?
      • Thank you very much for your patience!
  • Deshi_Intel's avatar
    Deshi_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    HI,

    The SR and LR in NativePHY IP basically means short range (chip to chip) setting and long range (chip to backplane) setting irrespective of protocol.

    • FPGA to SFP is consider as "chip to chip" connection
    • So, you should set it to SR for your case

    Regarding BER error debug

    • Perhaps you can try enable PHY loopback to isolate is this board related issue or FPGA internal issue first

    For the data swap issue and not data corruption issue

    Thanks.
