HDMI example design errors with Agilex 7

Hello,

I generated the HDMI example design for the Agilex 7 devkit and it compiled and worked fine.

But when I ported it to my platform and remapped it to the nwe pins, I get these errors (for evenry RX lane and every TX lane):

Error(21843): (gdr.z1577b.u_ux_quad_3.flux_top.ux0_cdr_f_ref_hz -> hdmi21_i|u_hdmi_rx_top|gxb_rx_inst|u_rx_phy_0|rx_phy_12g|dphy_hip_inst|persystem[3].perxcvr[0].fgt.rx_ux.x_bb_f_ux_rx.cdr_f_ref_hz) > 99999899 || gdr.z1577b.u_ux_quad_3.flux_top.ux0_cdr_powerdown_mode == TRUE || (gdr.z1577b.u_ux_quad_3.flux_top.ux0_rx_tuning_hint -> hdmi21_i|u_hdmi_rx_top|gxb_rx_inst|u_rx_phy_0|rx_phy_12g|dphy_hip_inst|persystem[3].perxcvr[0].fgt.rx_ux.x_bb_f_ux_rx.rx_tuning_hint) == UX0_RX_TUNING_HINT_HDMI

Error(21843): (gdr.z1577b.u_ux_quad_3.flux_top.ux0_cdr_f_out_hz -> hdmi21_i|u_hdmi_rx_top|gxb_rx_inst|u_rx_phy_0|rx_phy_12g|dphy_hip_inst|persystem[3].perxcvr[0].fgt.rx_ux.x_bb_f_ux_rx.cdr_f_out_hz) == 0 || gdr.z1577b.u_ux_quad_3.flux_top.ux0_cdr_powerdown_mode == FALSE

Error(21843): as.sw_topology != UX16E400GPTP_XX_DISABLED_XX_DISABLED || gdr.z1577b.topology == UX16E400GPTP_XX_DISABLED_XX_DISABLED

Error(21843): gdr.z1577b.topology != UX16E400GPTP_XX_DISABLED_XX_DISABLED || gdr.z1577b.u_ux_quad_3.powerdown_mode == FALSE

Error(21843): as.sw_topology == UX16E400GPTP_XX_DISABLED_XX_DISABLED

Error(21843): user.bb_f_ux_rx[3] -> hdmi21_i|u_hdmi_rx_top|gxb_rx_inst|u_rx_phy_30|rx_phy_3p500g|dphy_hip_inst|persystem[3].perxcvr[0].fgt.rx_ux.x_bb_f_ux_rx

Error(21843): cdr_f_out_hz == 1745000000

Error(21843): cdr_f_ref_hz == 87250000

Error(21843): is_used == TRUE

Error(21843): location == UX12

Error(21843): rx_tuning_hint == RX_TUNING_HINT_DISABLED

Error(21842): Support logic cannot be generated because IP components used in the design have conflicting settings

Error(21843): Conflict 0 ----------------------------------------------------------------

Error(21843): Rule: gdrb_ip758fluxtop::ux0_cdr_f_min_ref_limit_rule @ gdr.z1577b.u_ux_quad_3.flux_top

Error(21843): (gdr.z1577b.u_ux_quad_3.flux_top.ux0_cdr_f_ref_hz -> hdmi21_i|u_hdmi_rx_top|gxb_rx_inst|u_rx_phy_0|rx_phy_12g|dphy_hip_inst|persystem[3].perxcvr[0].fgt.rx_ux.x_bb_f_ux_rx.cdr_f_ref_hz) > 99999899 || gdr.z1577b.u_ux_quad_3.flux_top.ux0_cdr_powerdown_mode == TRUE || (gdr.z1577b.u_ux_quad_3.flux_top.ux0_rx_tuning_hint -> hdmi21_i|u_hdmi_rx_top|gxb_rx_inst|u_rx_phy_0|rx_phy_12g|dphy_hip_inst|persystem[3].perxcvr[0].fgt.rx_ux.x_bb_f_ux_rx.rx_tuning_hint) == UX0_RX_TUNING_HINT_HDMI

Error(21843): Rule: gdrb_ip758fluxtop::ux0_cdr_f_out_hz_rule @ gdr.z1577b.u_ux_quad_3.flux_top

Error(21843): (gdr.z1577b.u_ux_quad_3.flux_top.ux0_cdr_f_out_hz -> hdmi21_i|u_hdmi_rx_top|gxb_rx_inst|u_rx_phy_0|rx_phy_12g|dphy_hip_inst|persystem[3].perxcvr[0].fgt.rx_ux.x_bb_f_ux_rx.cdr_f_out_hz) == 0 || gdr.z1577b.u_ux_quad_3.flux_top.ux0_cdr_powerdown_mode == FALSE

Error(21843): Rule: gdrb_wrapper::topology_mapping_mux_rule @

Error(21843): as.sw_topology != UX16E400GPTP_XX_DISABLED_XX_DISABLED || gdr.z1577b.topology == UX16E400GPTP_XX_DISABLED_XX_DISABLED

Error(21843): Rule: z1577b::topo_down_to_ux_and_barak_powerdown_rules @ gdr.z1577b

Error(21843): gdr.z1577b.topology != UX16E400GPTP_XX_DISABLED_XX_DISABLED || gdr.z1577b.u_ux_quad_3.powerdown_mode == FALSE

Error(21843): Input variables:

Error(21843): as.sw_topology == UX16E400GPTP_XX_DISABLED_XX_DISABLED

Error(21843): user.bb_f_ux_rx[3] -> hdmi21_i|u_hdmi_rx_top|gxb_rx_inst|u_rx_phy_30|rx_phy_3p500g|dphy_hip_inst|persystem[3].perxcvr[0].fgt.rx_ux.x_bb_f_ux_rx

Error(21843): cdr_f_out_hz == 1745000000

Error(21843): cdr_f_ref_hz == 87250000

Error(21843): is_used == TRUE

Error(21843): location == UX12

Error(21843): rx_tuning_hint == RX_TUNING_HINT_DISABLED

Can you please clarify what the issue is?

On my new platform, I am using Bank 12A Quad 3 (TX and RX) and for reference clocks fgt_12a_refclk_ch3 and fgt_12a_refclk_ch4.

Thanks

Core Logic

2 Replies

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 months ago

    Hi dncmrc1 ,

    May I know which quartus version that you are trying ?

    I lay down some of the suggestion in order to help you to move a step forward.
    1. Create a project targeted the device OPN that you need, for example, in this case, you need to select your targeted devkit

    2. Select HDMI from the IP Catalog

    3. On the Target Development Kit "Select Board" option, choose "Customer Development Kit" and click on Generate Example Design

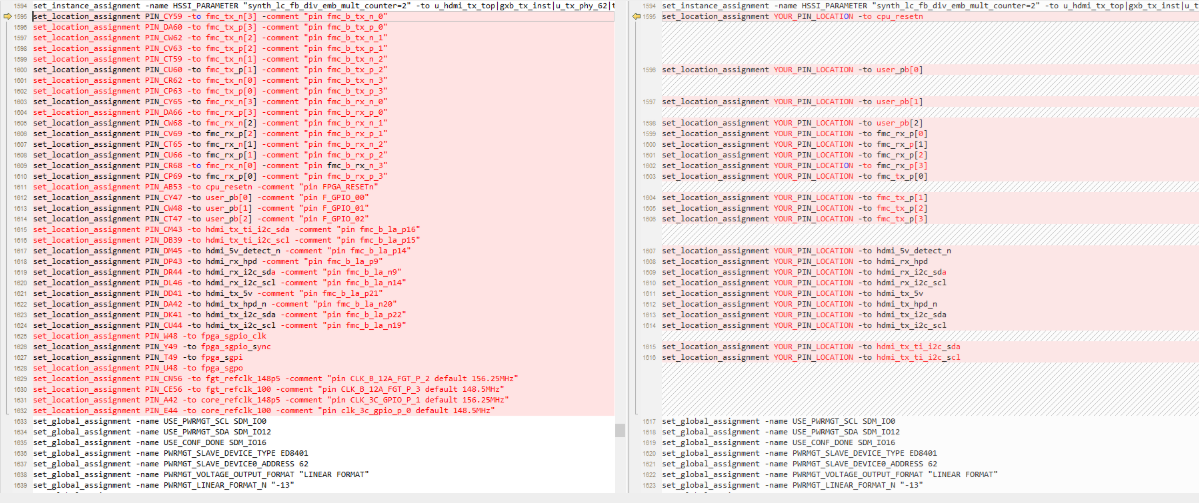

    After generation finishes, open the QSF file, there are some of the set_location_assignments with "Your_location" that needs to be updated.

    You can refer to the the design example (since the devkits are the same) and copy over the setting: (FOR YOUR REFERNCE PURPOSE ONLY)

    The error you seeing might due to clock and pin type mis-matching
    Do carefully checking each pin carefully https://www.altera.com/design/devices/resources/pinouts#tab-blade-1-3

    Regards,
    Wincent

    • dncmrc1's avatar
      dncmrc1
      Icon for Occasional Contributor rankOccasional Contributor
      4 months ago

      Thank you. I found the solution to my issue (I was missing to include one of the demo scripts).

      You can close this SR.
