Does 1SG085HN2F43E2LG must need to connect the PMBUS？

Hi ,

Does 1SG085HN2F43E2LG must need to connect the PMBUS？ >> Yes as per the recommendation,

Kindly find the explanation.

Intel Stratix 10 devices will not configure or function correctly if the core voltage is driven by a non-PMBus compliant regulator with a fixed output voltage

page no: 5

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/stratix-10/ug-s10-pwr.pdf

Hi Rxie ,

Kindly find the my reply below in details.

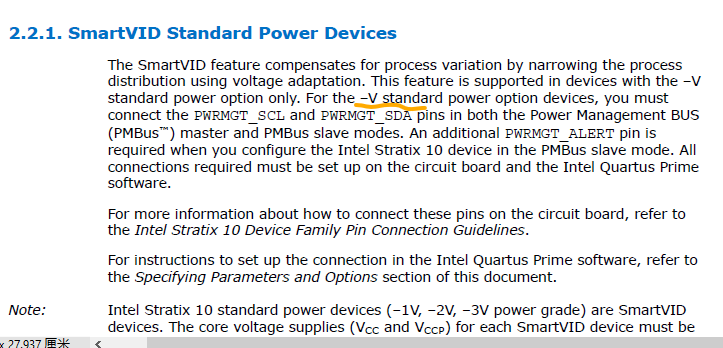

For Stratix 10 with support for SmartVID standard power ,you must connect the PWRMGT_SCT and PWRMGT_SDA connect to power management bus.

There are other opn in which the power line is fixed, that is L and X , in that there is no support for Smart VID , the power is fixed ,

Kindly find the reference in PCG : PAGE NO:28

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/dp/stratix-10/pcg-01020.pdf

If the OPN have L or x no support for SMART VID , so connection is not required , hope it clarifies

Hi ,

Let me know if you have any confusion in my reply ,

I am strongly recommend to follow the guidelines which present in the pin connection guidelines Pagno:28 about the pin connection.

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/dp/stratix-10/pcg-01020.pdf

Hi ,

Kindly let me know, if you need further assistance.
