Cyclone V FPGA configuration

Hello,

My platform configuration :

  • Cyclone V SoC FPGA
  • ECPQ memory connected to FPGA through AS
  • MSEL pins set to use AS configuration scheme

I store a FPGA configuration in EPCQ memory. While booting, FPGA is configured through AS link.

The question is :

Is it possible to reconfigure FPGA (with a new configuration and without changing MSEL pins setting) through HPS while functionning ?

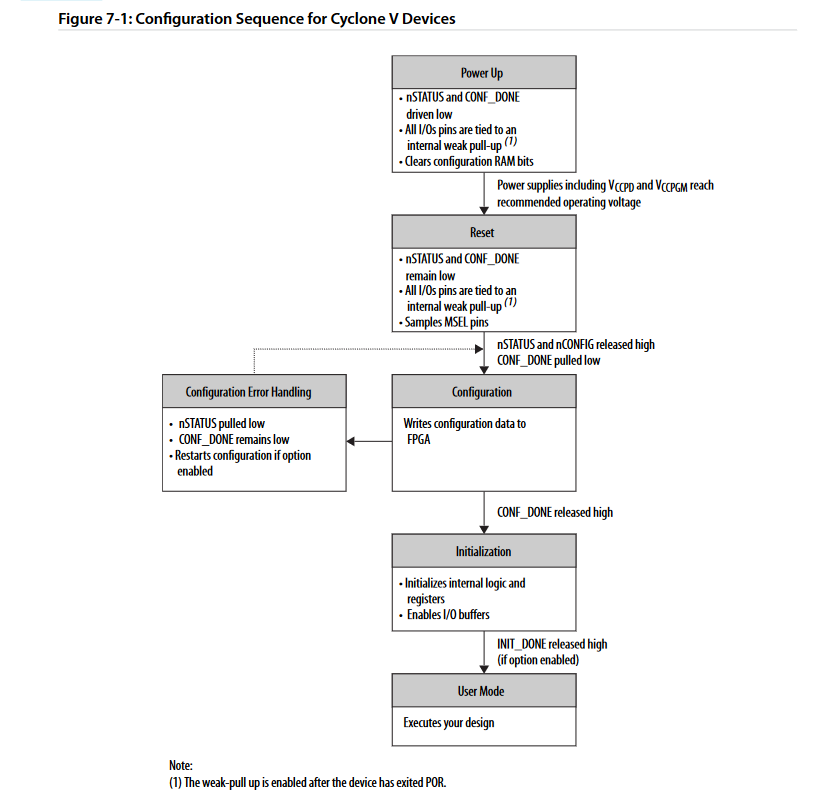

In Cyclone V Device Handbook Volume 1, I found out that MSEL pins are sampled during Reste state execution :

And in Cyclone V HPS Reference Manual, I found this :

Does it mean that FPGA Manager always starts by executing Reset state when configuring FPGA ? Regardless of the fact that it is processing full reconfiguration or partial reconfiguration ? Am I missing/misunderstanding something in the documentation ?

Thanks for the help

  • Once the processor is booted, it can be used to program the FPGA part of the device at any time.

6 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

    Once the processor is booted, it can be used to program the FPGA part of the device at any time.

    • Jpascal's avatar
      Jpascal
      Icon for New Contributor rankNew Contributor

      Hello,

      Thanks for the answer.

      Is it regardless of MSEL pins setting ?

      If so, where did you get the information ?

    • Jpascal's avatar
      Jpascal
      Icon for New Contributor rankNew Contributor

      I thought MSEL pins were an issue because my setting is not one of those described in the link of your answer (It's not FFP because FPGA is first configured on power-on from an external device connected through AS). What causes me trouble is the second and entirely new configuration that should be done by HPS.

      I understood that when using HPS to configure FPGA, FPGA manager resets the FPGA. Since MSEL pins are sampled during Reset phase and since my MSEL pins setting is not a HPS configuration scheme, I thought that trying to configure FPGA by HPS would not work.

      I guess I got it wrong seeing your answer and Fakhrul answer.

  • FakhrulA_altera's avatar
    FakhrulA_altera
    Icon for Regular Contributor rankRegular Contributor

    Hello Jpascal,


    Indeed, sstrell's statement is reasonable. The MSEL pins should not pose any problems.


    Regards,

    Fakhrul
