Configuring Arria V Transceiver PLL for 2.5G Ethernet

Hello,

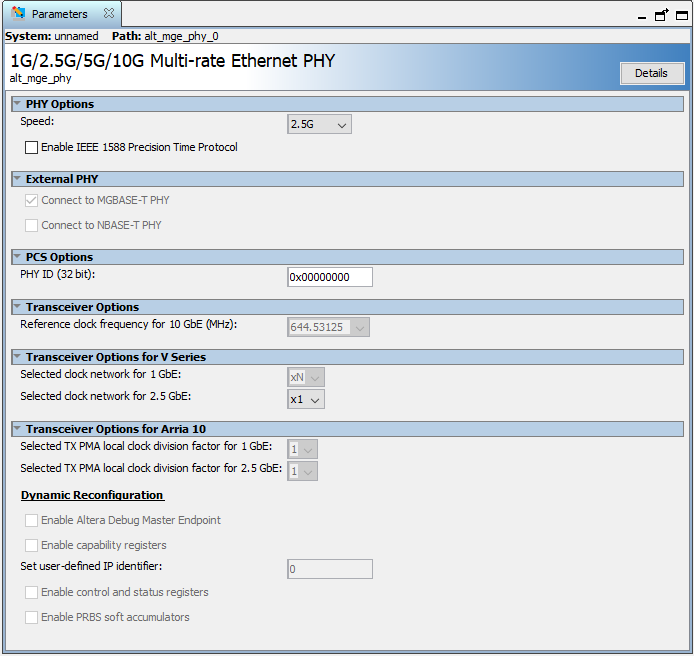

I want to use the Multi-rate Ethernet IP at 2.5G on an Arria V device

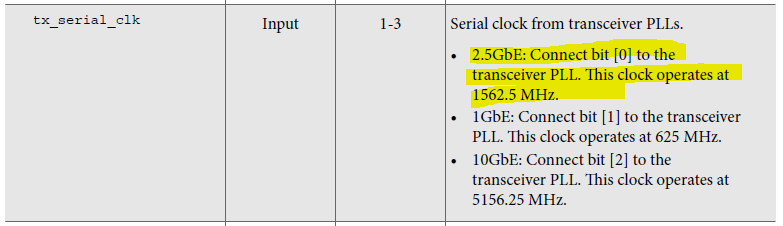

The datasheet mentions that rx_clkout will be derived from tx_serial_clk:

And it seems like I’ll need to use a Transceiver PLL that operates at 1562.5 MHz.

How do I need to configure the Arria V Transceiver PLL to make it output a clock at 1562.5 MHz?

What PLL base data rate should be used ?

Configuration
  • paveetirrasrie_Altera's avatar
    paveetirrasrie_Altera
    7 months ago

    Hello,


    After checking on this, here's the connection guideline:

    • The proper connections are to connect "fboutclk" to "pll_fbclk" and to leave "hclk" open.

    Hope I've answered your query.


    Regard,

    Pavee



6 Replies

  • paveetirrasrie_Altera's avatar
    paveetirrasrie_Altera
    Icon for Frequent Contributor rankFrequent Contributor
    7 months ago

    Here's the connection required to operates PLL for 2.5G


    Serial clock from transceiver PLLs.

    • 2.5GbE: Connect bit [0] to the transceiver PLL. This clock operates at 1562.5 MHz

    • 1GbE: Connect bit [1] to the transceiver PLL. This clock operates at 625 MHz.

    • 10GbE: Connect bit [2] to the transceiver PLL. This clock operates at 5156.25 MHz.


    Kindly refer to https://www.intel.com/content/www/us/en/docs/programmable/683171/current/clock-and-reset-signals.html for more detailed explanation.


    Regards,

    Pavee


  • paveetirrasrie_Altera's avatar
    paveetirrasrie_Altera
    Icon for Frequent Contributor rankFrequent Contributor
    7 months ago

    Hello,


    After checking on this, here's the connection guideline:

    • The proper connections are to connect "fboutclk" to "pll_fbclk" and to leave "hclk" open.

    Hope I've answered your query.


    Regard,

    Pavee



  • host's avatar
    host
    Icon for Occasional Contributor rankOccasional Contributor
    7 months ago

    Thanks for the input.

    I'm using only 2.5G so I need only one clock.

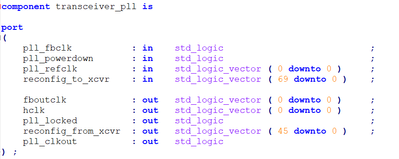

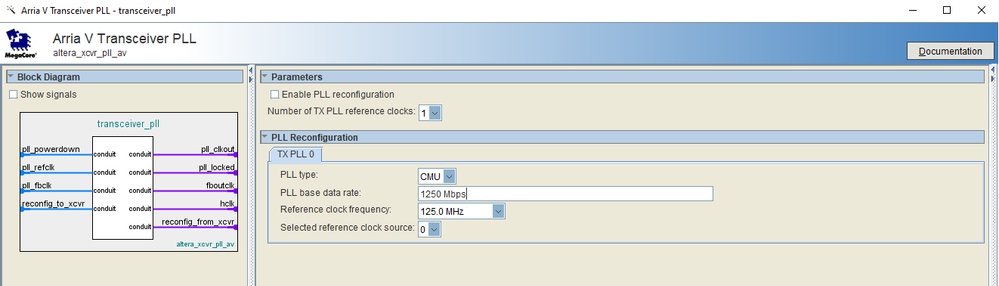

    This is my Transceiver PLL component as generated by the IP wizard:

    I have doubts about how to connect the following singals:

    1. pll_fbclk (input)

    2. fboutclk (output)

    3. hclk (output)

  • paveetirrasrie_Altera's avatar
    paveetirrasrie_Altera
    Icon for Frequent Contributor rankFrequent Contributor
    7 months ago

    Hello,


    Quartus will help on configuring PLL automatically.


    Complete the following steps to configure a Transceiver PLL IP Core:

    1. Under Tools > IP Catalog, select the device family of your choice.

    2. Under Tools > IP Catalog > Interface Protocols > Transceiver PHY> Transceiver PLL .

    3. Specify the options required for the PLL.

    4. Click Finish to generate your parameterize Transceiver PLL IP Core.


    Regards,

    Pavee


    • host's avatar
      host
      Icon for Occasional Contributor rankOccasional Contributor
      7 months ago

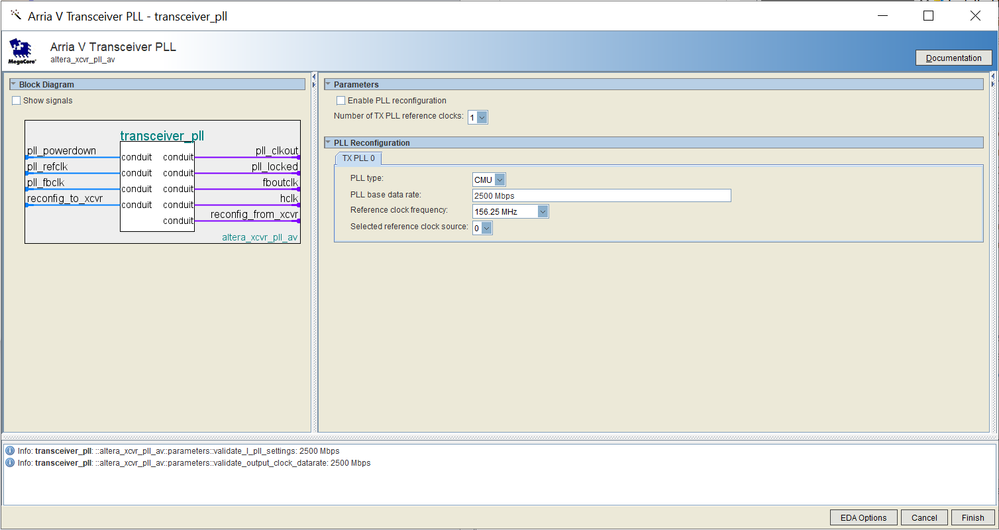

      That's exactly what I did:

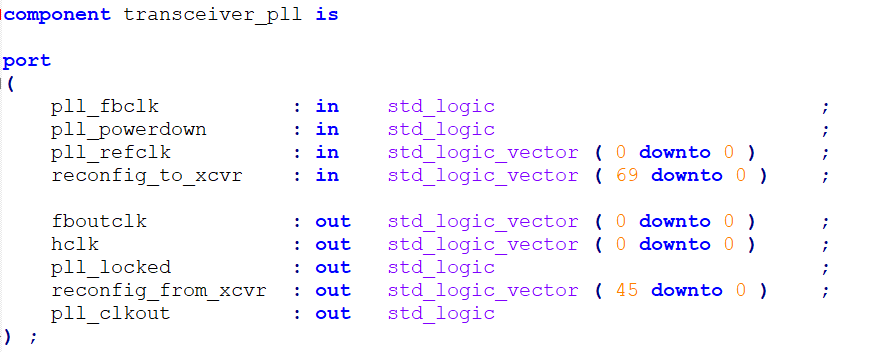

      And the PLL is generated as follows:

      How should I connect the following ports ?

      1. pll_fbclk (input)

      2. fboutclk (output)

      3. hclk (output)

  • paveetirrasrie_Altera's avatar
    paveetirrasrie_Altera
    Icon for Frequent Contributor rankFrequent Contributor
    7 months ago

    Hello,


    I’m glad that your question has been addressed, I now transition this thread to community support.

    If you have a new question, feel free to open a new thread to get the support from Altera experts.

    Otherwise, the community users will continue to help you on this thread.

    Thank you.


    Regards,

    Pavee
