Avalon mm pipeline bridge problem: multible write

Hi,

Im using CycloneVsoc link lwh2f(32bit) ---> Avalon mm pipeline bridge(32bit) -----> MyIP core(8bit)

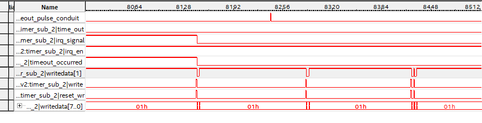

the following is the signal tap result:

When I ran alt_write_byte for one time in the timer IRQ.

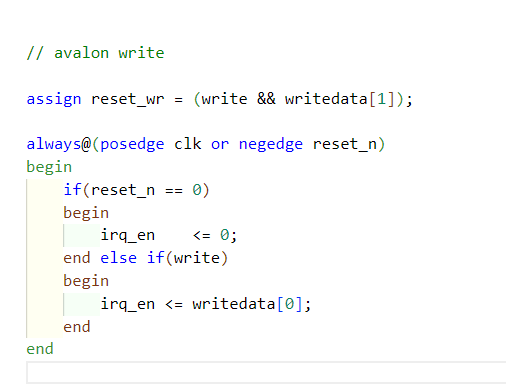

Here is my verilog logic:

The port reset_wr here should be only one pulse signal when I wrote to the FPGA module.

The other problem is that writedata signal should be at 0b01---->0b11------->0b01------> loop

yet signal tap didnt catch the value.

It change from 01 to 00 for severial times.

Writedata[1] should be at 0 until I write.

Could you please help me with that?

Thank you.

Reguards

Alex

8 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

    You don't specify in your HDL what irq_en should be when write is low, so you've basically created a latch.

    But I don't understand why in your Signal Tap capture writedata[1] does not match what is shown for writedata[7..0]. Are you sure you are tapping the correct signals or accidentally tapping a different writedata[1]?

    • CAlex's avatar
      CAlex
      Icon for Contributor rankContributor

      Hi

      irq_en is what I want to have,

      reset_wr signal is not, I didnt expect 4 write signal when using alt_write_byte().

      And yes, they are the same signal, which makes this case stranger.

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor

        You do not want to have a latch, especially in an FPGA design. They make it difficult to meet timing and can cause glitching. That could be part of this problem depending on how irq_en is working with the rest of the design.

        As for the weird writedata, I'd try removing and re-adding the signals in the .stp file or just create a brand new .stp in case the file is corrupt.

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    assign irq_signal = irq_en & reset_assert;

    always @(posedge clk or negedge reset_n)
    begin
         if (reset_n == 1'b0)
              irq_en <= 1'b0;
         else if (write)
              if (writedata[0])
                   irq_en <= 1'b1;
              else
                   irq_en <= 1'b0;

    Your "write" signal is essentially a synchronous clock enable for the register and writedata[0] is a synchronous set. You just have to cover both cases for it. This should now synthesize correctly.

    • CAlex's avatar
      CAlex
      Icon for Contributor rankContributor

      THANK YOU,

      if you dont mind , I'll add that into my design.

    • CAlex's avatar
      CAlex
      Icon for Contributor rankContributor

      And about the mult write problem, Ive created a new stp, but the problem still exist.

      Have you ever meat this knid of wield problem before?

      Tnak you again for your help.
