ALTPLL Clock switchover in Cyclone 10 LP

Hi @User15891149574421405910​ You will need to perform a dynamic reconfiguration if you want to keep the same 80Mhz when you are switching ref clock from 48Mhz --> 80Mhz.

Normally, the usage model is that....

For redundancy purposes, you have 2 ref clock of the same frequency + automatic switchover.

For clock sources originate from multiple cards on the backplane, requiring a system-controlled switchover between frequencies of operation (e.g. manual switchover + dynamic reconfiguration).

Hope this answers your questions.

Hi Chin,

Thanks for the clarifications. As a feedback if this point is captured in the documentation as well as the ALTPLL IP Catalog software it would be great.

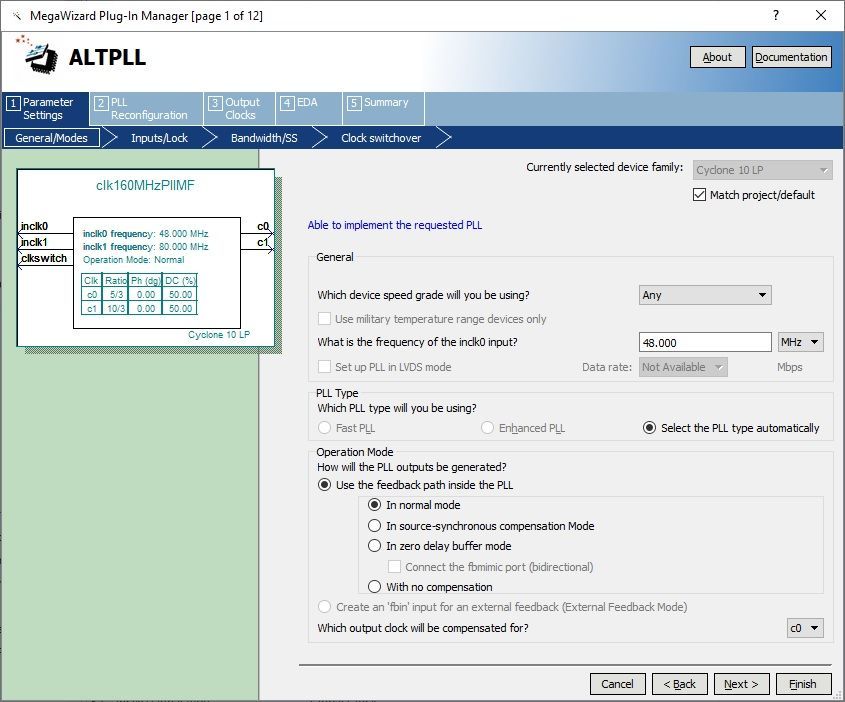

As a simple workaround to the dynamic configuration I am spoofing the 48MHz clock as 80MHz in the IP Catalog. i.e I mention inClk0 as 80MHz but give a 48MHz. This is a temporary arrangement until I get the clean 80MHz inclk1 in my application. It is working fine. But are there any design pitfalls in the PLL that would give random problems in field?

Hi @User15891149574421405910​ I am not sure what random problems you are referring to...but i guess it depends on your application. As a rule of thumb, as long as the PLL is locked, the output is reliable.
