ALTERA_FP_FUNCTIONS Single Precision Multiplier doesn't seem to support subnormal numbers

I am trying to use a Single Precision Floating Point multiplier as generated by QSys in Quartus Prime 16.1.2. We are using an Arria 10 device so the option I have is to use the ALTERA_FP_FUNCTIONS module.

After running some tests, I found that the device doesn't support the entire range of IEEE 754 numbers, specifically the subnormal (or denormal numbers). If the IP encounters a subnormal number, it sets the output to 0. This produces incorrect results especially if the output is to be fed into another IP like a multiplier (or divider), causing an error that propagates.

Is there a solution to this problem? Are there any updates to the ALTERA_FP_FUNCTION IP to provide subnormal number support? Would moving to Quartus 19 help solve the issue?

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    6 years ago

    Yes, I got the problem.

    However Altera floating-point IP cores do not support denormal/subnormal number inputs. If the input is a denormal value, the IP core forces the value to zero and treats the value as a zero before going through any operation.

    Hence we are seeing output zero.

    Regards

    Anand

7 Replies

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Ahmad,

    You have to check the output of ALTERA_FP_FUNCTION when valid signal is high.

    you can check with example design from user guide

    Please share you design or image.

    Regards

    Anand

    • ZAhma1's avatar
      ZAhma1
      Icon for New Contributor rankNew Contributor
      6 years ago

      Hi Anand,

      As you may be aware with most FPGA IPs, there is no data valid signal. You just have to wait the suggested number of cycles and hope the output is correct.

      I've created a sample project with the IP in question and also added a testbench which will run the problem cases. I'll attach them here.

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Ahmad,

    Check your testbench rest signal. Its is not properly handled and also reset is active high.

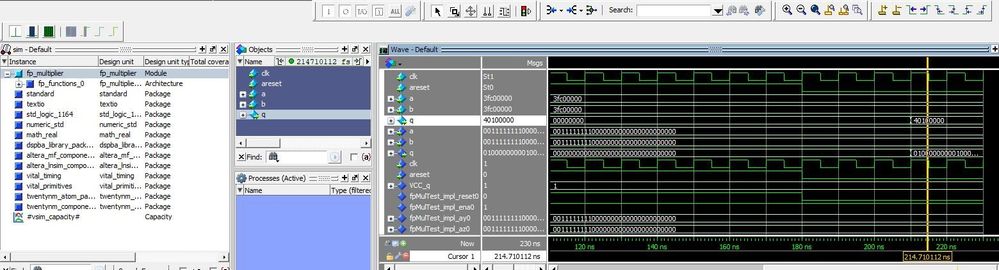

    without testbench IP works as expected.

    Regards

    Anand

    • ZAhma1's avatar
      ZAhma1
      Icon for New Contributor rankNew Contributor
      6 years ago

      Hi Anand,

      I don't understand what you mean by "reset is not properly handled". The testbench applies an active high reset at the start after which the test begins and reset is pulled low. I see you've done the same thing in your test.

      Also if you see the testbench there are three tests. Test 1 is *supposed* to pass. This is the same output in your run and my testbench.

          report( lf &
            "------------------ TEST 1 ------------------------"  & lf &
            "    This should pass"
          );
    wait until falling_edge(s_clk);
    s_a <= X"3fc00000";           -- 1.5
    s_b <= X"3fc00000";           -- 1.5
    expected_q := X"40100000";    -- 2.25

      Test 2 and 3 fail with the IP. These are the tests that show the IP doesn't support subnormal numbers. But you don't seem to have run these tests.

          report( lf &
            "------------------ TEST 2 ------------------------"              & lf &
            "    Multiply subnormal number to a regular number"               & lf &
            "    The output should be a regular number, but will likely be 0" & lf &
            "    This will probably fail"
          );
    wait until falling_edge(s_clk);
    s_a <= X"00781136";           -- 1.10264e-38    (subnormal)
    s_b <= X"3fc00000";           -- 1.5            (not subnormal)
    expected_q := X"01ba0cf5";    -- 6.83442e-38    (not subnormal)
          report( lf &
            "------------------ TEST 3 ------------------------"                      & lf &
            "    Multiply two regular numbers that should produce a subnormal number" & lf &
            "    The output should be a subnormal number, but will likely be 0"       & lf &
            "    This will probably fail"
          );
    wait until falling_edge(s_clk);
    s_a <= X"1ff7f0d6";           -- 1.05007e-19    (not subnormal)
    s_b <= X"1ff7f0d6";           -- 1.05007e-19    (not subnormal)
    expected_q := X"00781150";    -- 1.10265e-38    (subnormal)
  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Yes, I got the problem.

    However Altera floating-point IP cores do not support denormal/subnormal number inputs. If the input is a denormal value, the IP core forces the value to zero and treats the value as a zero before going through any operation.

    Hence we are seeing output zero.

    Regards

    Anand

    • ZAhma1's avatar
      ZAhma1
      Icon for New Contributor rankNew Contributor
      6 years ago

      OK. That's what I thought. Thanks for clarifying.

      Thanks!

      --Zohair
