Hello Intel team

We use SmartVID for the Agilex 5 in master mode,

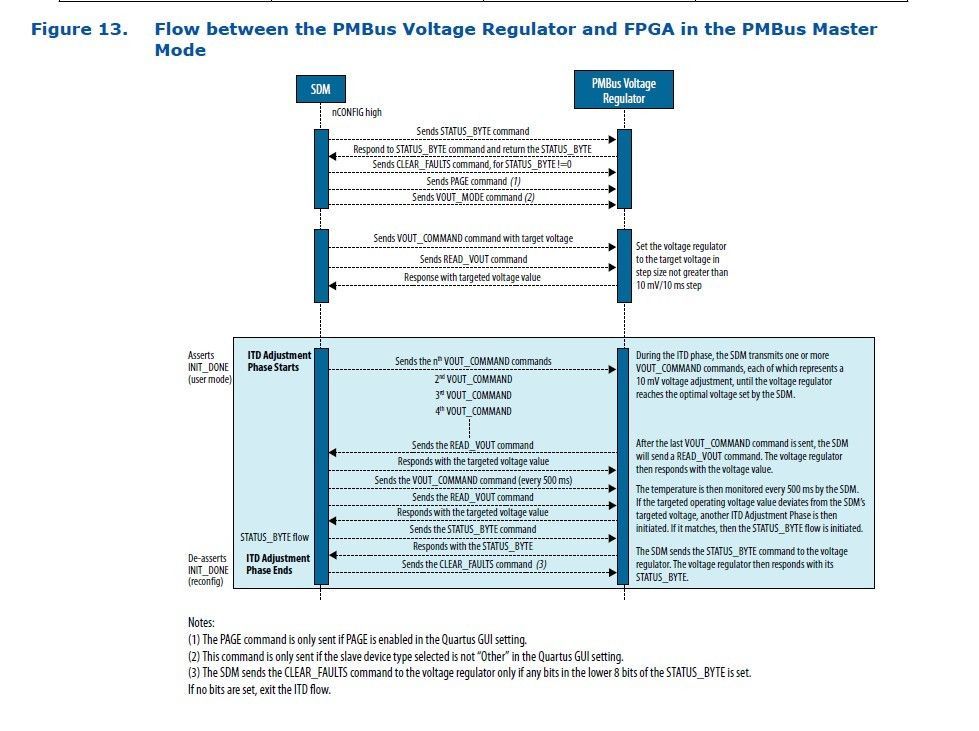

The interface between Agilex and voltage regulator is glueless and SDM manage the interface as below

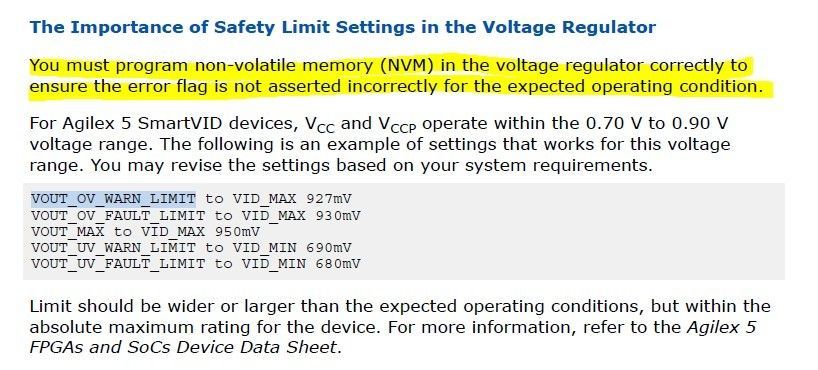

I found the following instructions to program the NVM parameters,

Is the Agilex (SDM) support the NVM configuration?

Or Intel expected the NVM be configured before implementing on board

Please advise

Thanks

Asaf

Board Debug

6 Replies

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    9 months ago

    Hi,

    Altera expect that the NVM to be programmed correctly before installing it on board

  • Asaf_Bloch's avatar
    Asaf_Bloch
    Icon for New Contributor rankNew Contributor
    9 months ago

    Thanks John,

    Is it applied to both, Master and Slave mode?

    So the voltage regulator is not standard device? it should be special Part Number - configured by the device manufacture. - Right?

    Thanks

    Asaf

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    9 months ago

    Hi Asaf,

    Yes, you are correct. As this NVM setting is set only once.

    Thanks.

    • Asaf_Bloch's avatar
      Asaf_Bloch
      Icon for New Contributor rankNew Contributor
      9 months ago

      Can the SmartVID work without the Limits setting and without the error Flag?

      Thanks

      Asaf

      • Asaf_Bloch's avatar
        Asaf_Bloch
        Icon for New Contributor rankNew Contributor
        9 months ago

        Is the NVM configured demand, is applies only when using voltage regulator that are not listed in the GUI by selecting the "Other" option in the Quartus® Prime software? or is it for all regulators?

        Thanks

        Asaf

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    9 months ago

    Hi Asaf,

    It is good to make sure all regulators is set correctly on the NVM setting.

    Thanks
