Agilex 7 HBM2E burst length

I noticed that I can use a burst length of 1 (arlen/awlen = 0). But the datasheet says "In BL8 mode, the HBMC supports only a burst length of 2 for write and read transactions. If you issue a burst l...
Core Logic
  • AdzimZM_Altera's avatar
    AdzimZM_Altera
    3 months ago

    Hi FBuss2 ,



    HBM2E operates with fixed internal burst lengths (BL4/BL8).

    In BL8 mode, each internal column access returns a full BL8 worth of data.

    A 1‑beat AXI write on a narrow port often forces read‑modify‑write internally; a 1‑beat read fetches a full internal BL8 but delivers only one byte on AXI.

    This is highly inefficient and can degrade throughput and increase power.



    Regards,

    Adzim

FBuss2's avatar
FBuss2
Icon for New Contributor rankNew Contributor
3 months ago

And a related question: what is the max burst length? The port is 8 bits wide, but it doesn't work if I use a length greater than 64 in BL8 mode.

AdzimZM_Altera's avatar
AdzimZM_Altera
Icon for Regular Contributor rankRegular Contributor
3 months ago

Hi FBuss2,



Sorry for the delay to reply. I was OOO last week and not able to reply on time.



Can you provide the HBM2E IP setting that you configured?



Are you testing on a Agilex 7 M devkit or a custom board?



Did you used example design to run the test or used your own design?



Regards,

Adzim

  • FBuss2's avatar
    FBuss2
    Icon for New Contributor rankNew Contributor
    3 months ago

    Here are all the IP configurations of the project: https://frank-buss.de/tmp/ip.zip
    Mostly default settings for the HBM2E IP, just BL8 enabled. I'm using the IA-860m PCIe card, with my own design, based on the card vendor cardtest example. Quartus version is 25.3.1, with patch 1.02 installed.

    • AdzimZM_Altera's avatar
      AdzimZM_Altera
      Icon for Regular Contributor rankRegular Contributor
      3 months ago

      Hi FBuss2,



      When running the test, what is the AXSIZE and AXLEN you used?

      Could be possible the test has cross 4KB boundary.





      Regards,

      Adzim

      • FBuss2's avatar
        FBuss2
        Icon for New Contributor rankNew Contributor
        3 months ago

        These are the settings:

        AWLEN / ARLEN = "00"
        AWSIZE / ARSIZE = "110"
        AWBURST / ARBURST = "01"
        AWPROT = "010"

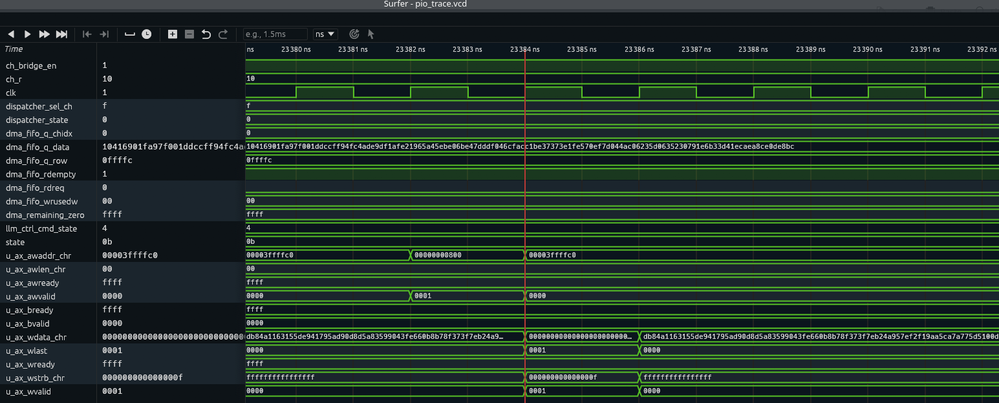

        Here is an example running on the FPGA. I don't have SignalTap, so I wrote my own logger for it.

        Some cycles later the HBM signals back the bvalid, and I can also read it back successfully with 1 burst (arlen=0). Attached is the full waveform file, including the read.
