Agilex 7 F/I Series True Differential Input Termination

Hi,

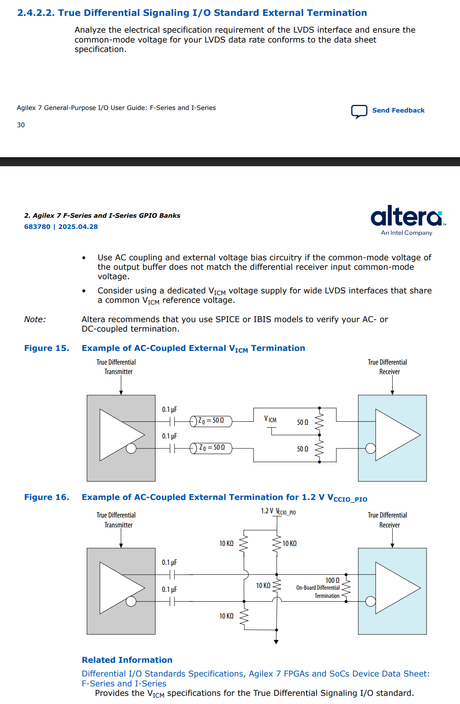

The Agilex F/I Series GPIO User Guide indicates that if using AC coupling for the true differential inputs you should add external voltage bias circuitry and has no examples of AC coupling without also externally biasing the inputs as shown in snippet below.

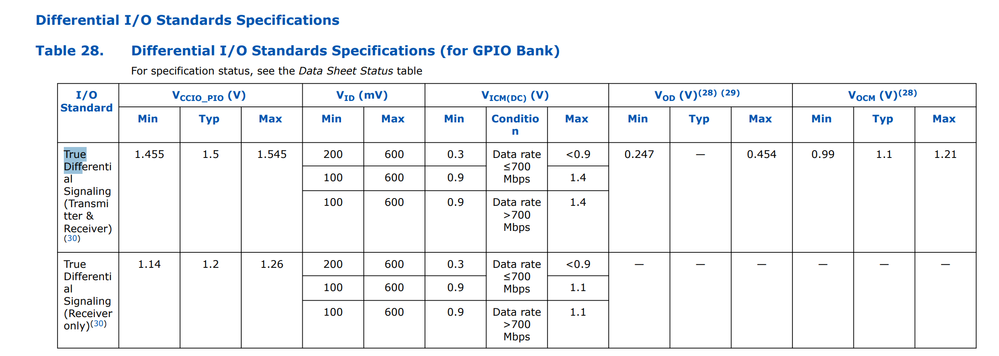

I would like to confirm whether the Agilex 7 F/I series parts have internal voltage biasing such that if AC coupling, external biasing resistors would not be needed so long as VID (max 600mV, so 1200mV differential pk-pk max) is being met? The IBIS model for the part shows a consistent voltage bias for the inputs that is within the VICM range listed in the Agilex 7 F/I series datasheet (see snippet below) which implies the external biasing is not needed. And the AGILEX FM86/FM76 DEVELOPMENT KIT has some differential inputs that are AC coupled with no external biasing.





Generic Io
  • FvM's avatar
    FvM
    1 month ago

    Hi Steve,

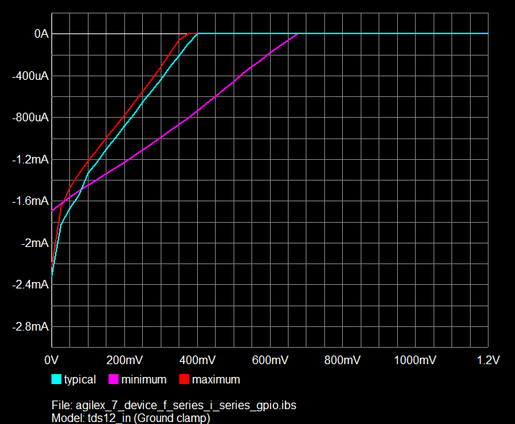

    reviewing documents and reference design, I agree that GPIO manual, datasheet and development kit schematic are inconsistent in several regards. Looking also at IBIS file, there seems to be a non-linear pull-up feature for TDS input standard which effectively pulls Vicm to about half supply with applied signal. Not sure if IBIS input characteristic is real or roughly simplified.

    So all-in-all, it seems like development kit implementation is a possible minimal effort termination option.

    Regards
    Frank
