Agilex 5 GTS Reset Sequencer Intel FPGA IP : what value to set to i_refclk_bus_out with a PCIe IP ?

Hello, Using a PCIe IP in Root Port on a AGILEX 5, I have to use the GTS Reset Sequencer Intel FPGA IP configured in PCIe. With Quartus 2025.1, the i_refclk_bus_out port appears on the GTS Reset Se...
Other Ips
Wincent_Altera's avatar
Wincent_Altera
Icon for Regular Contributor rankRegular Contributor
6 months ago

Hi,

Let me know if you need more time to response to this cases.

Regards

Wincent_Altera

Serge93's avatar
Serge93
Icon for Occasional Contributor rankOccasional Contributor
6 months ago

Hello Wincent,

Monday was off in France.

I could not answer to you because Quartus failed with the following error message :

Quartus 2025.1 fails when using the PCIe IP (GTS AXI Streaming IP) :

    Error(24542): VHDL error at gts_axi_streaming.vhd(2001): expression has 20 elements; expected 22

I have a project test case to reproduce the problem.

Are you able to work on this problem ?

Thnaks.

Serge

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    6 months ago

    Hi Serge,

    Is it possible to attach the design .qar file here ?
    Let me check if I can help to resolve this or not.

    Regards,

    Wincent

    • Wincent_Altera's avatar
      Wincent_Altera
      Icon for Regular Contributor rankRegular Contributor
      6 months ago

      Hi @Serge93 ,

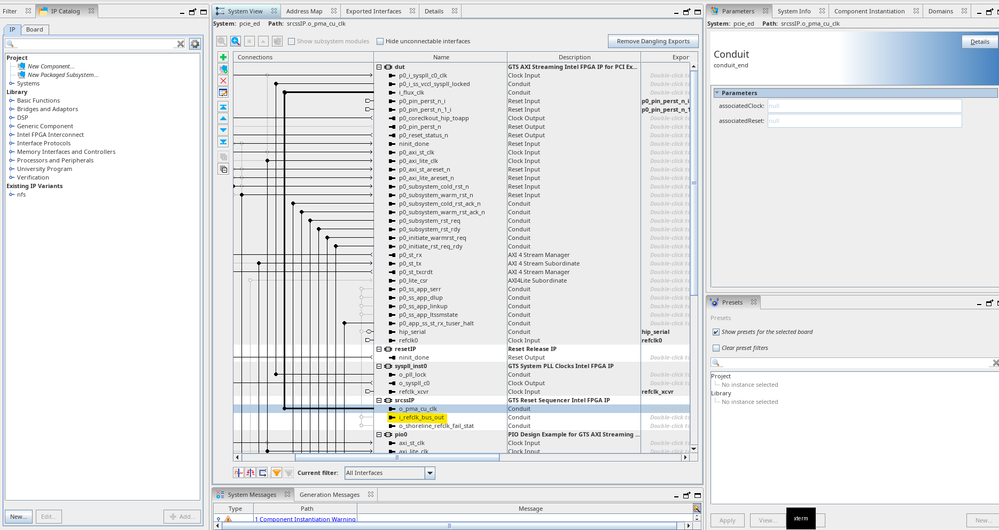

      Below is my design for i_refclk_bus_out clock - ON the GTS Reset Sequencer Intel FPGA IP

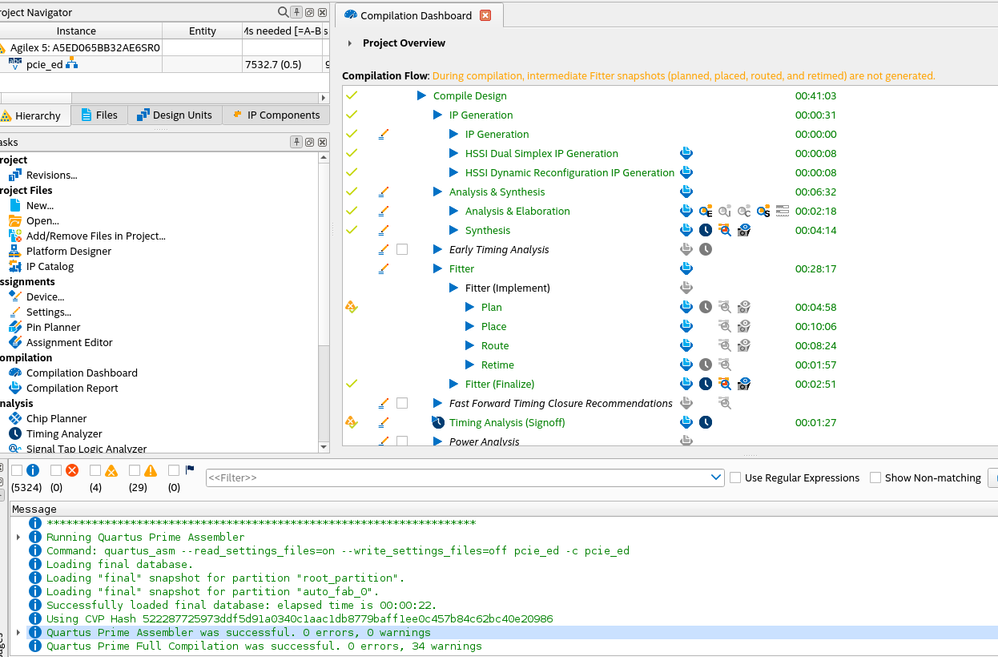

      the compilation pass as well

      I attach the design .qar file here, please have a look.

      Let me know if I could better assist you in anyway. Hope we can solved this.

      Regards,
      Wincent

      • Serge93's avatar
        Serge93
        Icon for Occasional Contributor rankOccasional Contributor
        6 months ago

        Hello Wincent,

        Sorry I was busy yesterday.

        Please pay attention the GTS PCIe IP must be configure in Root Port and not in End Point.

        If you modify the GTS PCIe IP in Root Port in your project, I am pretty sure you will get the error.

        Please find attached my test case.

        Thanks for help.

        Serge
