5CEBA7F27C8N_Power Consumption for VREFB[3..8]AN0

Question

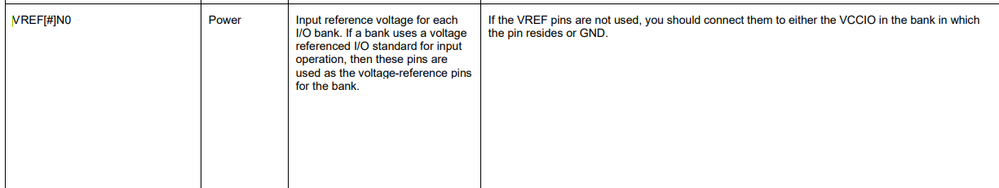

Hello,For 5CEBA7F27C8N FPGA, there are voltage reference pins as below.VREFB3AN0VREFB3BN0VREFB4AN0VREFB5AN0VREFB5BN0VREFB6AN0VREFB7AN0VREFB8AN0In Pin Connection Guidelines(PCG-01014-3.2), it is mentioned that "when VREF pins are not used, you should connect them to either the VCCIO in the bank in which the pin resides or GND."When these pins are connected to VCCIO of respective banks, will there be any current consumption on these pins? Please confirm.Note: Attached below snapshot from pin connection guidelines for reference.

fakhrula_altera · Answer

Hi ShivaKi,The current consumption of a Cyclone V VREF pin is typically very minimal. You can check the maximum leakage current for the IO pins , is 30uA, Page no: 13https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/cyclone-v/cv_51002.pdfYou may also check: https://cdrdv2.intel.com/v1/dl/getContent/655051?explicitVersion=true&amp;fileName=cyc_c51008.pdfRegards,Fakhrul

fakhrula_altera · Answer

As we haven't received a response to our previous notification, this thread will be transitioned to community support. We hope all your concerns have been addressed. If you have any new questions, please feel free to open a new thread to receive support from Intel experts. Otherwise, community users will continue to assist you here. Thank you.

Forum Discussion

5CEBA7F27C8N_Power Consumption for VREFB[3..8]AN0

2 Replies
