1 Port Rom MegaFunc, Only z output, with MIF. Max 10DA. DE10-Lite board

Question

I am using a small 1 port ROM, size 8bits by 64 locations. (Quartus 20.1 Lite)
When I simulate it using ModelSim Altera, providing Clocks and Address, I am only getting Z output.
I have the MIF file in the same directory where the RTL code is.
I am suspecting, as if ModelSim-Altera is not including the MIF file, when running the Sim. How to check and fix this?
What could be possibly wrong?
Thank you,

jkasingh · Answer

Is it true, that the Lite version won't support ROM IP, and only the Licensed version do it?
I never got any warning or error related to that though in Quartus.
What about just running a Sim with ModelSim Altera, using the files which Quartus generated for the ROM and the MIF file.

Thank you

jkasingh · Answer

Tried with a 'Standard' version and a licensed ModelSim-Altera version. Same results.

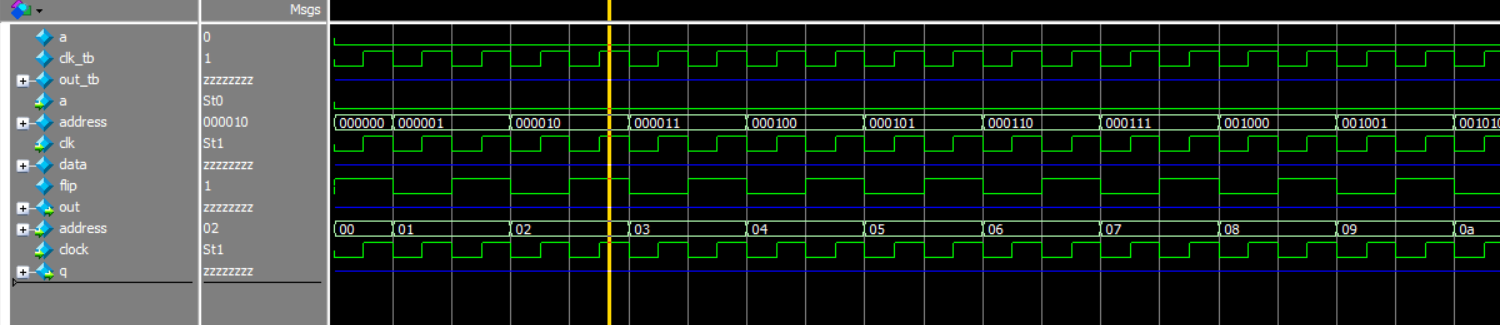

Showing picture below.  Bottom three traces are from the ROM instance.

richardt_altera · Answer

From the KDB below, it seems that Modelsim tool does not support the memory initialization file (.mif) format and requires you to generate a .hex file. Could you try the solution below and see if it helps?
https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/solutions/rd10062000_9191.html

richardt_altera · Answer

We do not receive any response from you to the previous question/reply/answer that I have provided. Please post a response in the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you with your follow-up questions.

jkasingh · Answer

Hello,
I was able to use the MIF file.
However I used a VHDL model of the ROM, instead of the Verilog, as I could not get it working as mentioned.
The link you provided, is about converting MIF to HEX. And I was still able to use the MIF file.
So the problem is still there, when I use the Verilog model, but not when I switched to the VHDL model of ROM.
I have been using the ModelSim Altera version, which comes with Quartus 20.1 Lite edition.
Thank you,
