Query on Power up sequence of MAX10 Dual Supply

Hello,

I have selected the FPGA part number 10M08DAF256I7G for our design. I would like to confirm whether a specific power-up sequence is mandatory for this device.

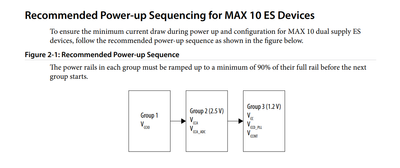

If a power-up sequence is required, could you please share the recommended sequence to be followed? I came across a reference in one of the documents suggesting a specific order, as shown in the image attached below. Kindly confirm if this is the correct and necessary procedure.

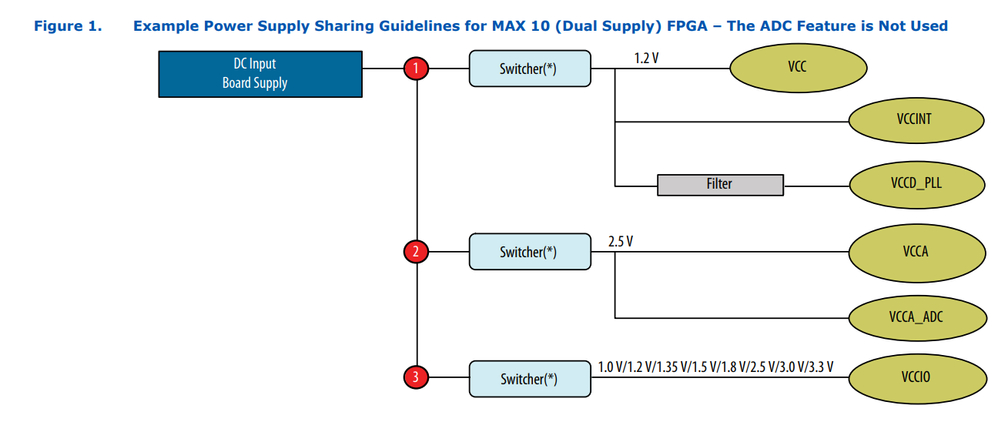

or is this the sequence to be followed?

Board Debug

3 Replies

  • AqidAyman_Altera's avatar
    AqidAyman_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 months ago

    Hello,


    For the 10M08DAF256I7G (MAX 10 production device), a specific power-up sequence is not required, unlike early engineering sample (ES) devices, all power rails (VCC, VCCINT, VCCA, VCCIO, etc.) can be ramped up in any order or simultaneously, provided that absolute maximum and recommended operating conditions are not violated. The sequencing shown in the attached images applies only to ES devices; for production devices, you may power the rails without a defined sequence. Please ensure that all supplies are stable before configuration begins.


    Reference: https://www.intel.com/content/www/us/en/docs/programmable/683400/18-0/hot-socketing.html


    Regards,

    Aqid
