PCIe hard IP example design generation fail

Hi

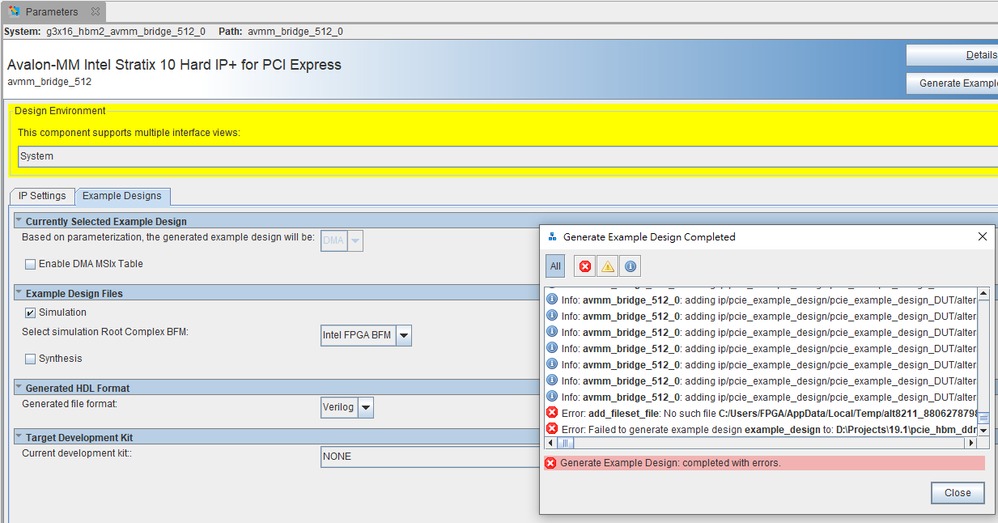

I generate example design of Stratix PCIe hard IP and get error message as following figure.

Could you please fix the problem?

PS. I'm using Quartus v18.1.2 and v19.1.

5 Replies

  • SengKok_L_Intel's avatar
    SengKok_L_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    I'm using v19.1 to generate the Avalon-MM intel Startix 10 Hard IP+ example design by using the default setting, but I can't see the same error.

    Questions:

    1. How do you configure the IP? Does using default settings also having the same issue?
    2. What is the OPN (Device's full name)?

    Regards -SK

    • CHung's avatar
      CHung
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Hi SK,

      ​

      1. I got the same errors either using default setting or selecting gen3x8 configuration.

      2. The device full name is 1SM21CHU1F53E1VG.

      Thanks.

  • CHung's avatar
    CHung
    Icon for Occasional Contributor rankOccasional Contributor
    6 years ago

    Hi,

    ​

    I've checked again, it's not default setting. Because we are based on a reference design.

    Please see the attached setting file.

    ​I've tried 1SM21CHU1F53E1VG (our current device) and 1SM21BHU1F53E1VG (reference design), they both failed.

    Thanks.​

    ​

    ​

  • SengKok_L_Intel's avatar
    SengKok_L_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi

    This problem may only happen in certain PC or OS. For a quick workaround, I have helped to generate the design and attached it here for your reference.

    Regards -SK
