jtagconfig not working properly.

I'm using quartus 13.1 installed on ubuntu 12.04 (32-bit) in a Oracle VM. When I tried to connect my cyloneV SoC development kit some times it works but most of the time it's not working.it's very random :( . I used sudo killall -9 jtagd and restart the jtagd but the issue remains. But for my cycloneII board it's working fine. I tried cycloneV in my host OS (win10 with quartus 17.1) and the device is detected properly. unfortunately I cannot change my environment (I must use ubuntu 12.04 in VM ) So anyone know how to solve this please help me.

15 Replies

  • dkaws's avatar
    dkaws
    Icon for New Contributor rankNew Contributor
    6 years ago

    I tried to reduce the TCK as you mentioned but the issue remains. And I tried it with new VM with ubuntu 14.04 64-bit version and Qaurtus 15.0 installed on it and jtagconfig worked fine. (but even for this environment I have reduce the TCK as you mentioned) :(

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    May I know what is the error message you observed? How do you connect the JTAG port?

    • dkaws's avatar
      dkaws
      Icon for New Contributor rankNew Contributor
      6 years ago

      I don't get any error message. using USB-BlasterII cable.

    • dkaws's avatar
      dkaws
      Icon for New Contributor rankNew Contributor
      6 years ago

      blaster is detected by VM. But when I call jtagconfig command most of the time it won't detect the device. (sometimes it did) I have attached screenshots with this comment.(NB: In those Screenshots I didnt do any harware changes (connect/disconnect the device). only thing I did was called the commands shown in terminal).

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    It looks like the issue is happening if you accidentally terminate or exiting the jtagconfig. Could you confirm if you run it normally without terminating it, are you still observing the issue? When you are not able to detect the device, are you seeing the led light?

    • dkaws's avatar
      dkaws
      Icon for New Contributor rankNew Contributor
      6 years ago

      No I don't see and red light. My task is to generate Nios II processor system and upload c program to processor and run it. Even if I successfully upload the system into FPGA I cannot upload my c code most of the time.

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    Have you try to reduce the TCK to 6M? If not then could you try to reduce it using this command "jtagconfig --setparam <cable number> JtagClock <frequency><unit prefix>". Example command "jtagconfig --setparam 1 JtagClock 6M "

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    May I know if this issue is also happening if you are not using VM? I would like to isolate to see what is actually happening.

    May I know whenever you use VM, you are seeing hanging issue detecting the blaster or the blaster is detected but not FPGA device?

    • dkaws's avatar
      dkaws
      Icon for New Contributor rankNew Contributor
      6 years ago

      No. jtagconfig is working properly when I connect it to my hhost OS. (Windows 10 with Quartus 17.1). But I didn;t check it for same environment as in VM. Since When I create a new VM with Ubuntu 14.04 and Quartus 15 and call jtagconfig works fine means it's not a issue with VM right?

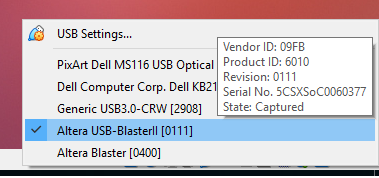

      What's happening is when I first connect the FPGA into VM the device is detected with revision no 1034. Then when I called jtagconfig device is detected again with different revision no 0111. and in VM it indicates that the device is attached. (like in this screenshot).

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    I think it is due to your system contain multiple Quartus version and it is usually used to load the firmware into the USB-BlasterII. May I know if you have USB-Blaster I?

    • dkaws's avatar
      dkaws
      Icon for New Contributor rankNew Contributor
      6 years ago

      I hv uninstalled all other quartus versions and now I have only quartus 13.1 installed in my PC.

      ------------------------May I know if you have USB-Blaster I?----------------------------

      In my rules.d/usbblaster.rules file I have the following.

       "SUBSYSTEM==\"usb\", ATTR{idVendor}==\"09fb\", ATTR{idProduct}==\"6001\", MODE=\"0666\"" | sudo tee /etc/udev/rules.d/usbblaster.rules -a
"SUBSYSTEM==\"usb\", ATTR{idVendor}==\"09fb\", ATTR{idProduct}==\"6002\", MODE=\"0666\"" | sudo tee /etc/udev/rules.d/usbblaster.rules -a
 "SUBSYSTEM==\"usb\", ATTR{idVendor}==\"09fb\", ATTR{idProduct}==\"6003\", MODE=\"0666\"" | sudo tee /etc/udev/rules.d/usbblaster.rules -a
"SUBSYSTEM==\"usb\", ATTR{idVendor}==\"09fb\", ATTR{idProduct}==\"6010\", MODE=\"0666\"" | sudo tee /etc/udev/rules.d/usbblaster.rules -a
 "SUBSYSTEM==\"usb\", ATTR{idVendor}==\"09fb\", ATTR{idProduct}==\"6810\", MODE=\"0666\"" | sudo tee /etc/udev/rules.d/usbblaster.rules -a
  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    May I know if the issue is happening if you are not running VM?

    • dkaws's avatar
      dkaws
      Icon for New Contributor rankNew Contributor
      6 years ago

      I didn't check it on similar environment as in VM.

      But I hv checked it on

      1.windows 10 quartus 17.1 (64 bit)

      2.ubuntu 14.04 quartus 15.1 (64 bit) in VM

      In above environments it worked fine. (EVEN THOUGH I HAVE TO CHANGE THE JTAG CLOCK SETTINGS (AS YOU MENTIONED) ON 2ND ENVIRONMENT.)
