Hi, What are the tolerances for the 5AGXMB7G4F35C5N BGA package or where can i find them? Especially the height tolerances including the BGA are needed.

Hi SUrba3,

Thank you for contacting Intel Community.

Please refer to Packaging specification and dimension page for the device package dimension.

https://www.intel.com/content/www/us/en/programmable/support/literature/lit-index/lit-pkg/package.html?family=Arria_V

Regards,

Aim

Hi Aim,

thanks for your reply and the link!

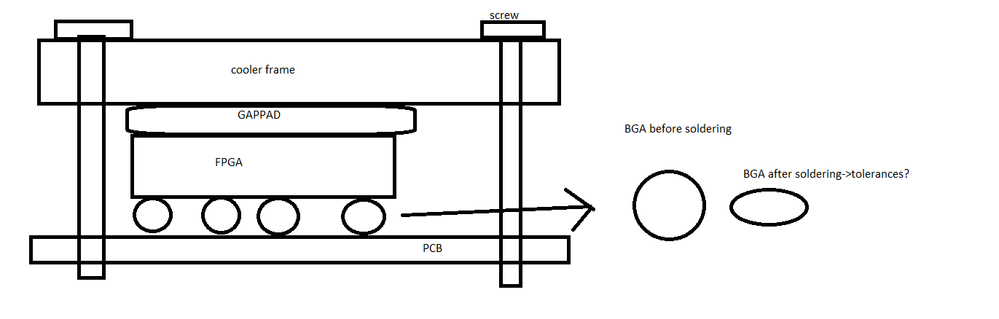

The PDF says A1 are the dimensions for the BGA itself. Are these dimensions valid after soldering?

I need to know the tolerances for A1 after soldering.

Regards,

Sven

Hi Sven,

The dimension also valid after soldering. Hence you can refer to the same pdf link for tolerances after soldering.

Regards,

Aim

Hi Sven,

Is there any further information needed for this case? If not, i will continue to close this case.

Thank you.

Regards,

Aim

Hi Aim,

thanks. You can close this case. No more information is needed.

Regards,

Sven
