EPM240T100I5N Architecture Variation !

Good morning,

I require assistance to understand the difference in the architecture between two batched of the same product, namely EPM240T100I5N.

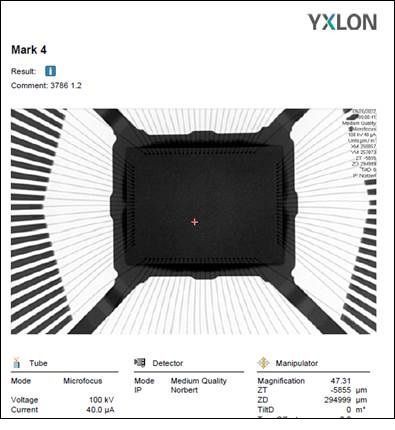

The pictures below show the x-ray image & its corresponding marking the of batch with "holes":

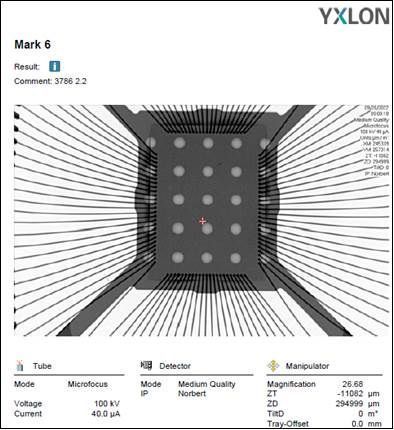

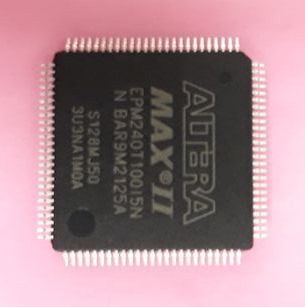

The following pictures, similarly show the x-ray image & its corresponding marking the of batch with " NO holes":

Our difficulty lays in understanding the difference between the two product architectures, the reason for the "holes" in the first batch and why they are not present in the second batch with "NO holes".

Please evaluate my query and kindly let me know your clarifications for this case.

Kind regards

Alex Bonello

Purchasing Executive

Bavarian Technology Systems

F16-F18 Tübingen Centre

Mosta Technopark

Mosta MST3000

Malta

Tel: +356 23399109

Fax: +356 21422227

Email: alex.bonello@btsmalta.com

  • FakhrulA_altera's avatar
    FakhrulA_altera
    3 years ago

    Hi BtsMalta2022,

    Just got feedback from the internal. Both designs are normal. The “holes” below are not holes, but dimples on bottom of die pad. It is to enhance mold to die pad adhesion. This is a newer design.

    Regards,

    Fakhrul
