Do I need USB driver on host for Arria 10 GX dev kit (PCIe)?

Hi Sir

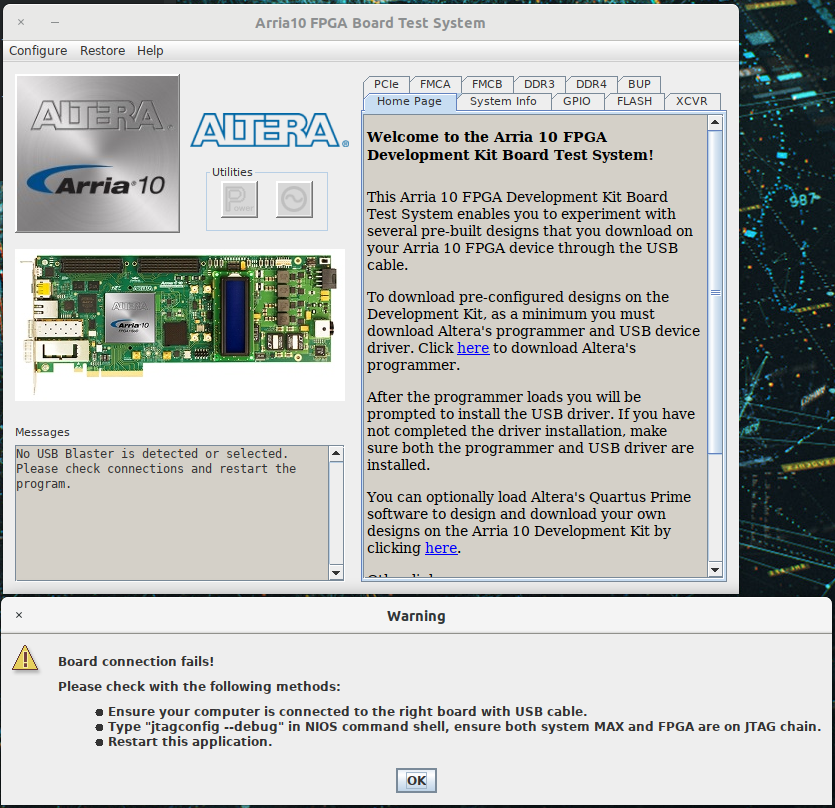

Welcome to INTEL forum. USB port on the dev kit is used to program FPGA via onboard JTAG connection when user uses dev kit as standalone board without plugging into any PC or server system. If the dev.kit is plug into PC or server system via PCIe slot then there is no need to use the USB port anymore.

Hie,

It seems the PCIe link is not up.

Please ensure you are following the steps described in the user guide on configuring the PCIe configuration (Pg 4-6 onwards).

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_a10-fpga-prod-devkit.pdf

After configuring the correct PCIe design, you can check in the "System Info" Tab whether the correct PCIe design configuration is loaded. This should enable the PCIe tab to work. If it still does not work, please try re-start the host PC without power cycling the board. This should resolve your issue.

Do let me know if my suggestions fixes your issue.

Regards,

Nathan

Following the instructions in that document, I can make the board visible on PCIe:

$ lspci | grep Altera
a1:00.0 Processing accelerators: Altera Corporation Device 2494 (rev 01)

Also, "aocl install $INTELFPGAOCLSDK/board/a10_ref" successfully compiled source and installed. But diagnose gives:

$ aocl diagnose
--------------------------------------------------------------------
ICD System Diagnostics
--------------------------------------------------------------------

Using the following location for ICD installation:
	/etc/OpenCL/vendors

Found 4 icd entry at that location:
	/etc/OpenCL/vendors/Altera.icd
	/etc/OpenCL/vendors/nvidia.icd
	/etc/OpenCL/vendors/Intel_FPGA_SSG_Emulator.icd
	/etc/OpenCL/vendors/intel64.icd

the following OpenCL libraries are referenced in the icd files:
	libalteracl.so
	libnvidia-opencl.so.1
	libintelocl_emu.so
	/home/okramer/system_studio_2019/opencl_compilers_and_libraries_18.1.0.013/linux/compiler/lib/intel64_lin/libintelocl.so

checking LD_LIBRARY_PATH for registered libraries:
	libalteracl.so was registered on the system at /home/okramer/intelFPGA_pro/19.3/hld/host/linux64/lib
	libnvidia-opencl.so.1 was registered on the system at /usr/lib/x86_64-linux-gnu
	libintelocl_emu.so was registered on the system at /home/okramer/intelFPGA_pro/19.3/hld/host/linux64/lib
	/home/okramer/system_studio_2019/opencl_compilers_and_libraries_18.1.0.013/linux/compiler/lib/intel64_lin/libintelocl.so was registered on the system.

Using the following location for fcd installations:
	/opt/Intel/OpenCL/Boards

Found 1 fcd entry at that location:
	/opt/Intel/OpenCL/Boards/a10_ref.fcd

the following OpenCL libraries are referenced in the fcd files:
	/home/okramer/intelFPGA_pro/19.3/hld/board/a10_ref/linux64/lib/libaltera_a10_ref_mmd.so

checking LD_LIBRARY_PATH for registered libraries:
	/home/okramer/intelFPGA_pro/19.3/hld/board/a10_ref/linux64/lib/libaltera_a10_ref_mmd.so was registered on the system.

Number of Platforms = 4
	1. Intel(R) FPGA SDK for OpenCL(TM)                             | Intel(R) Corporation           | OpenCL 1.0 Intel(R) FPGA SDK for OpenCL(TM), Version 19.3
	2. NVIDIA CUDA                                                  | NVIDIA Corporation             | OpenCL 1.2 CUDA 10.1.236
	3. Intel(R) FPGA Emulation Platform for OpenCL(TM)              | Intel(R) Corporation           | OpenCL 1.0 Intel(R) FPGA SDK for OpenCL(TM), Version 19.2
	4. Intel(R) CPU Runtime for OpenCL(TM) Applications             | Intel(R) Corporation           | OpenCL 2.1 LINUX
--------------------------------------------------------------------
ICD diagnostics PASSED
--------------------------------------------------------------------
--------------------------------------------------------------------
BSP Diagnostics
--------------------------------------------------------------------
--------------------------------------------------------------------
Warning:
No devices attached for package:
/home/okramer/intelFPGA_pro/19.3/hld/board/a10_ref
--------------------------------------------------------------------
Vendor: Intel(R) Corporation

Found no active device installed on the host machine.

Please make sure to:
      1. Set the environment variable AOCL_BOARD_PACKAGE_ROOT to the correct board package.
      2. Install the driver from the selected board package.
      3. Properly install the device in the host machine.
      4. Configure the device with a supported OpenCL design.
      5. Reboot the machine if the PCI Express link failed.

DIAGNOSTIC_FAILED
--------------------------------------------------------------------

Call "aocl diagnose <device-names>" to run diagnose for specified devices
Call "aocl diagnose all" to run diagnose for all devices

Specifically, "Warning: No devices attached for package: /home/okramer/intelFPGA_pro/19.3/hld/board/a10_ref" seems like the problem. But I don't know what to do about that. The same issue persisted in this thread. I checked everything that was mentioned in that thread along with other threads referenced, but no luck. The OP said he finally fixed it by moving the board to a different PCI slot. I guess I have to try that (I have a GPU in another slot). Tried that but still get "no device attached" message.

Now your PCIe link is up as your Windows can detect the device. However, your Windows system environment is pointing towards Quartus Prime Pro 19.3. Can you please install a fresh Quartus Prime Standard. I believe this should fix the issue.

Regards,

Nathan

You mean "Pro" is not a superset of "Standard"? On another post I have on the forum for a related (probably same) problem, they suggested reverting to Quartus v15.1.2. I'm confused. Before I switch to "Standard", can you explain a bit why you think this is the problem?

Hie,

Quartus Pro is not a super-set of "Standard". If you refer to the Arria 10 Devkit User Guide, it mentions using Quartus Prime Standard in Chapter 2 "Getting Started".

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_a10-fpga-prod-devkit.pdf

Some of the IP file directory structures and hierarchy are different between Quartus Standard and Pro which could be contributing to the issue you have observed. Hence, that is the reason I requested to try installing Quartus Prime Standard as the BTS UI could be using some files in from Quartus. Since, your windows "System Environment path" points towards Quartus Prime Pro, the BTS UI might not be able to call/read the required Quartus files. Hence, installing a fresh Quartus Prime Standard should change the "System Environment path" to Quartus Prime Standard.

Another way is if you already have a Quartus Prime Standard installed, then you can manually change the System Environment path.

Regards,

Nathan
