DDR4 SODIMM 内存 修改位宽Fitter失败

Hi,

Thank you for joining this Intel Community.

I am sorry but I didn't received any attachment as per mentioned. Can you help to re-attach so that I can take a closer look to your issue.

Thank you .

Regards,

Aida

已经上传

已经上传

Hi,

Thanks for sharing the designs. Please allow me sometime to look into the design. I shall come back to you with findings.

Thank you for your patience.

Regards,

Aida

Dear DXu2,

Please accept my apology for the delay in response due to public holiday in my region.

I've compiled your project and see the fitter error. Below is what I’ve been analyzed.

1) Top level file:

• I noticed that there is a mismatch between the DQ width in the top level file set in the project (s10_ddr4_top.v) and the DDR4 IP top level file (ddr_ip.v). I am not familiar on the modified top level file thus not able to edit it. Please help to change this accordingly. Refer below:

a) s10_ddr4_top.v = 72 bits --> inout wire [71:0] mem_dq,

b) ddr4_ip.v = 64bits --> inout wire [63:0] mem_dq

2) Assignment Editor:

• Pins is assigned for 72 bits data. Please remove extra 8 DQ data ( DQ [ 71:64]) in the QSF file and save.

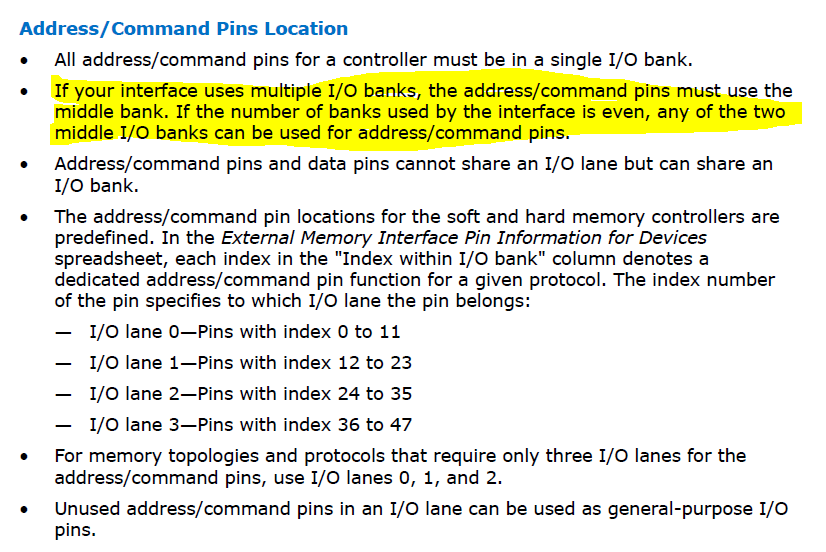

• Add/Cmd pins location: In the design, Add/Cmd pins were assigned to Bank 2L . The reason Fitter compilation failed is due to BANK 2L are not middle of IO bank where 64 bits DDR4 interface is placed. EMIF pin placement requirement required Address/Command/Control pin be placed in the middle of IO bank. This also mentioned in the Stratix 10 EMIF User guide.

Example as below.

1. EMIF IO bank usage 3A, 3B, 3C : Address pin need to be in 3B
2. EMIF IO bank usage 3B, 3C, 3D : Address pin need to be in 3C
3. EMIF IO bank usage 2L, 2M, 2N : Address pin need to be in 2M

• Please change Add/Cmd pin to Bank 2M. To avoid any conflict or accidently placed the pins in wrong location, I suggest that you remove all the location assignment and only assign one DQ pin to Bank 2L ( for example : mem_dqs[0] to Bank 2L) and one Addr pins to Bank 2M ( for example: mem_a [0] to Bank 2M) and let Quartus auto-fit the rest of them.

It worked for me in a simplified example design test case project. Please try it for your your project pinout and let me know if it works OK. Hope this helps.😊

Thanks

Regards,

Aida

Dear DXu2,

I am sorry for the delay in response due to current workload.

Proper design practice is to verify fitter placement first before proceed to board design.

• If customer later decided to change EMIF design then I would expect customer to change their board design as well. As far as I'm aware of, there is no other option to this.

Normally it’s fine to reduce DQ width and by right it shouldn’t hit fitter error

• 72 bits = 64 bits + 8 ECC bits.
  • Changing the design to 64 bits meaning customer just disable ECC option in EMIF IP so fitter should still work with x64 bit DQ
• Also, make sure that the add/cmd pins located at the middle bank as this is the requirement when using multiple I/O banks.

Sorry I couldn’t be more helpful. This is the best I can do. Let me know if there is any help needed.

Regards,

Aida
