Cyclone 10 GX FPGA Development Kit - PCIe AvalonMM-DMA example

Hello.

I use AN829 as starting point of my design.

In Platform Builder I see, that PCIe hip is connected to DDR3 emif via avalon MM bus.

Both components use different clock sources, but they are connected directly.

I expect that "Avalon-MM Clock Crossing Bridge" should be used here, but the design works well without it.

Please explain, in which situations I have to use this bridge, and in which not.

Thank you.

Best regards,

Oleg.

  • KhaiChein_Y_Intel's avatar
    KhaiChein_Y_Intel
    5 years ago

    Hi Oleg,

    Thanks for your patience while I was checking the design.

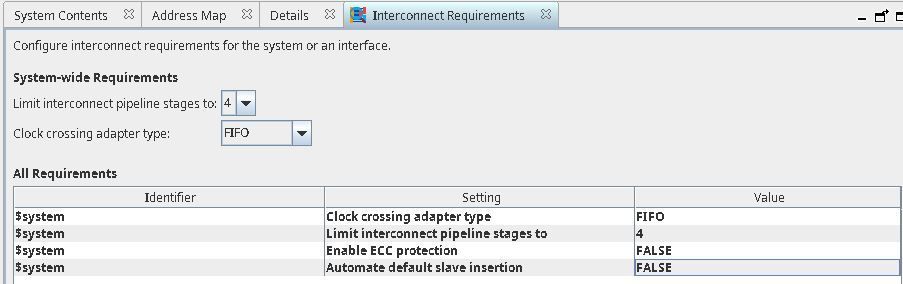

    If you refer to the Platform Designer: Interconnect Requirements, there are some settings that allow the software to automatically insert the clock crossing adapters and add pipeline stages to the Platform Designer interconnect when you generate a system.

    In our case, the clock crossing adapter type is set to FIFO and maximum pipeline stages is set to 4.

    Thanks

    Best regards,

    KhaiY

6 Replies

  • KhaiChein_Y_Intel's avatar
    KhaiChein_Y_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi Oleg,

    Thanks for your patience while I was checking the design.

    If you refer to the Platform Designer: Interconnect Requirements, there are some settings that allow the software to automatically insert the clock crossing adapters and add pipeline stages to the Platform Designer interconnect when you generate a system.

    In our case, the clock crossing adapter type is set to FIFO and maximum pipeline stages is set to 4.

    Thanks

    Best regards,

    KhaiY

  • KhaiChein_Y_Intel's avatar
    KhaiChein_Y_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi Oleg,


    The Clock Crossing Bridge allows pipelined read masters to post multiple reads to the bridge even if the slaves downstream from the bridge do not support pipelined transfers. Before using the clock crossing bridges in your design, you should

    carefully consider their effects. The bridges can have any combination of the following effects on your design:

    • Increased Latency - it has an effect on the read latency between the master and the slave.
    • Limited Concurrency - Placing a bridge between multiple Avalon-MM master and slave ports limits the number of concurrent transfers your system can initiate.
    • Address Space Translation - The slave port of a pipeline or clock crossing bridge has a base address and address span.


    Thanks

    Best regards,

    KhaiY


  • OlegT's avatar
    OlegT
    Icon for Occasional Contributor rankOccasional Contributor
    5 years ago

    Why it is not used in PCIe AvalonMM-DMA example?

  • KhaiChein_Y_Intel's avatar
    KhaiChein_Y_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you


    Best regards,

    KhaiY
